VACUUM - CUPS

⬅ Products     ⬅ Vacuum

Silicone
Bellow Cups

Part Number: XP-B5S, XP-B8S, XP-B10S, XP-B15S, XP-B20S, XP-B30S, XP-B40S, XP-B50S, XP-B65S, XP-B75S, XP-B110S, XP-B150S, XP-B250S

Cup Material:
Silicone - for either cold or high-temperature applications or where greater flexibility will improve conformance to a part.
Cup Diameter:
5, 8, 10, 15, 20, 30, 40, 50, 65, 75, 110, 150, 250 mm
Cup Fitting:
See cup fitting section for available threads
Cup Filter:
See cup filter section for available filters

For further information refer to
Online Specs

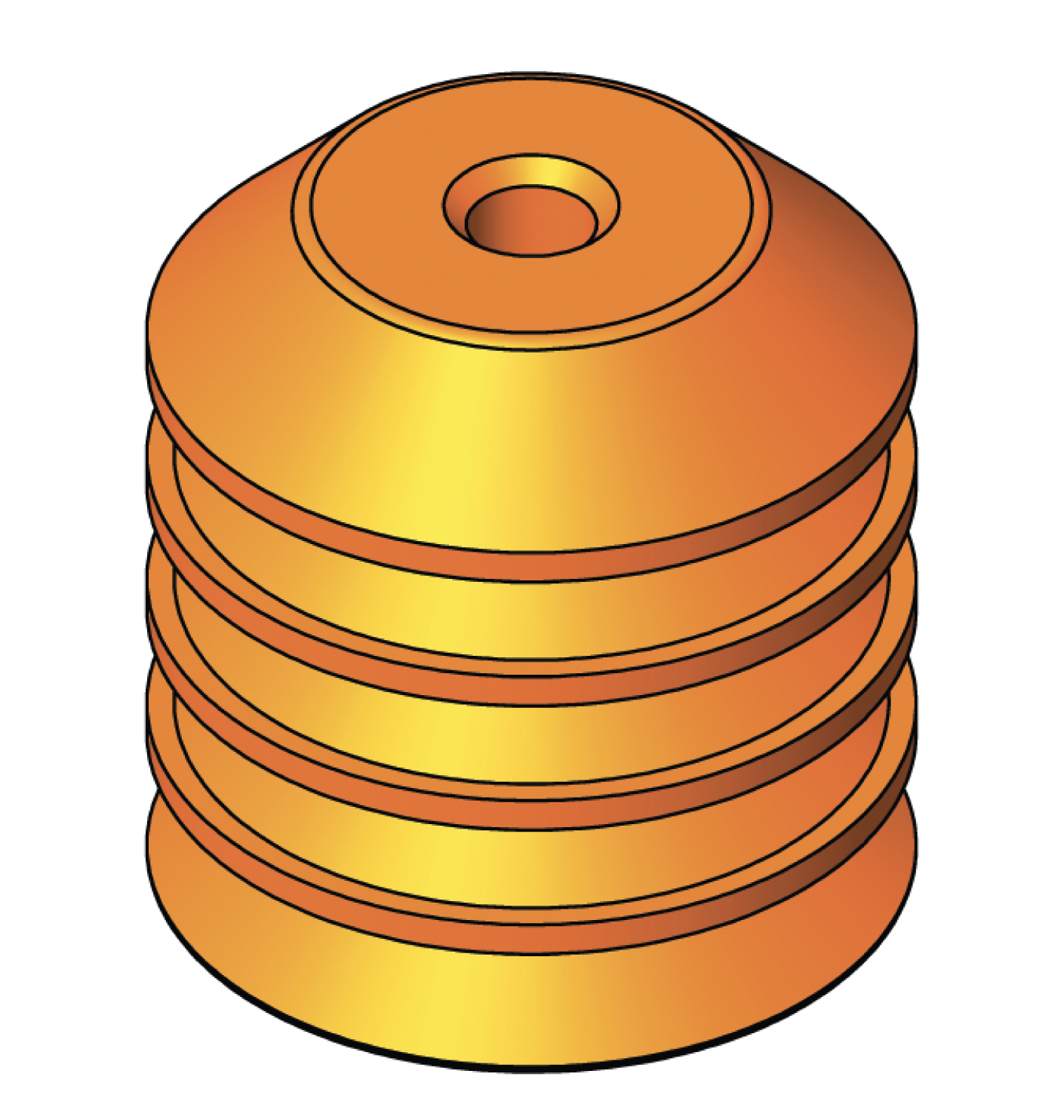

Multi Bellows

Part Number: XP-BL20S, XP-BL30S, XP-BL40S, XP-BL50S


Cup Material: Silicone - for either cold or high-temperature applications or where greater flexibility will improve conformance to a part.
Cup Diameter:
20, 30, 40, 50 mm
Cup Fitting:
See cup fitting section for available threads
Cup Filter: See cup fitting section for available filters

For further information refer to
Online Specs
Bellows Traction Foot Cups

Part Number: XP-BF80S-38F, XP-BF100S-38F

Cup Material:  Silicone - for either cold or high-temperature applications or where greater flexibility will improve conformance to a part.
Cup Diameter:
80mm, 100mm


For further information refer to Online Specs

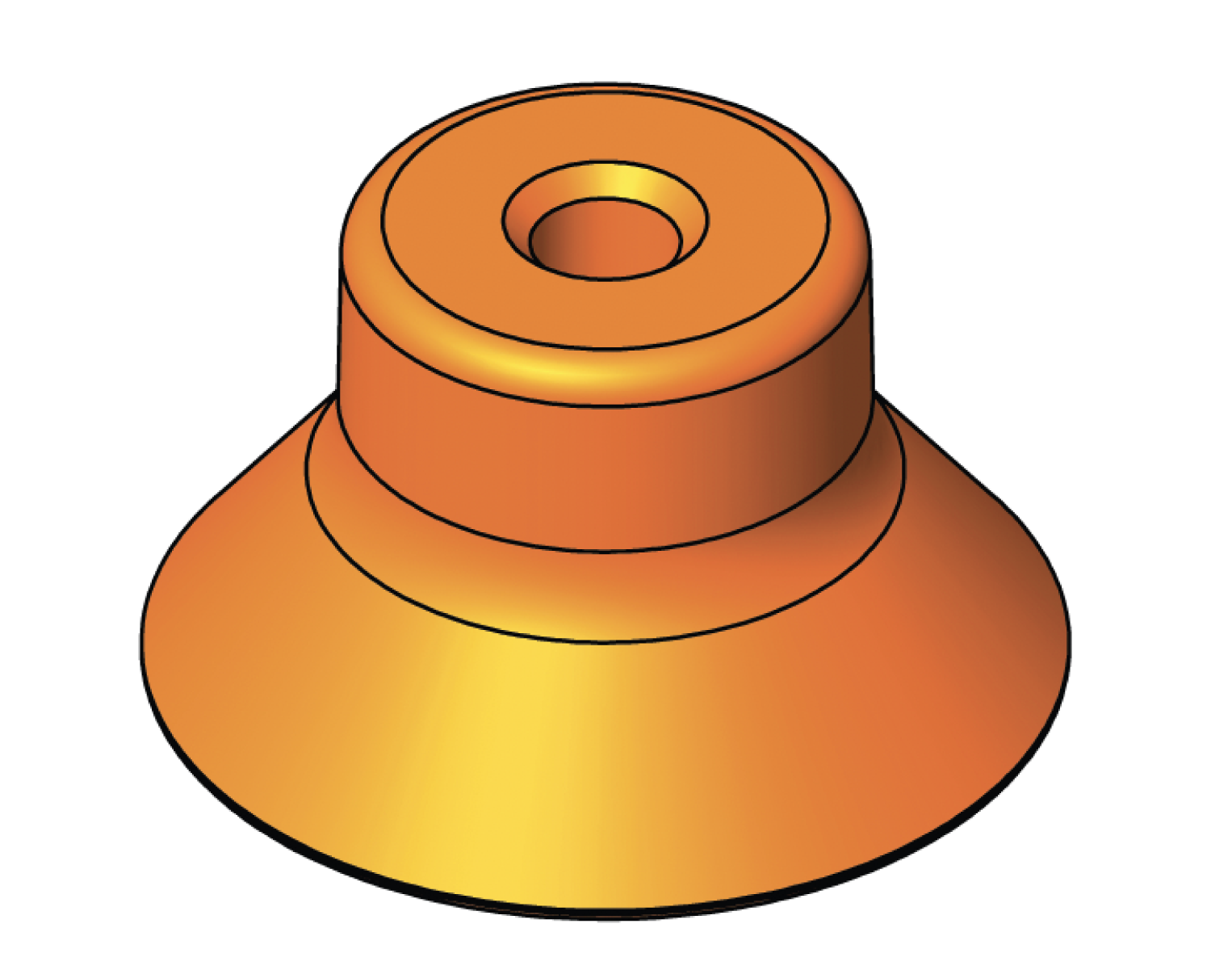

Deep Cups

Part Number: XP-D15S, XP-D20S, XP-D30S, XP-D40S, XPD-50S

Cup Material: Silicone - for either cold or high-temperature applications or where greater flexibility will improve conformance to a part.
Cup Diameter:
15, 20, 30, 40, 50mm
Cup Fitting:
See cup fitting section for available threads
Cup Filter:
See cup filter section for available filters



For further information refer to
Online Specs

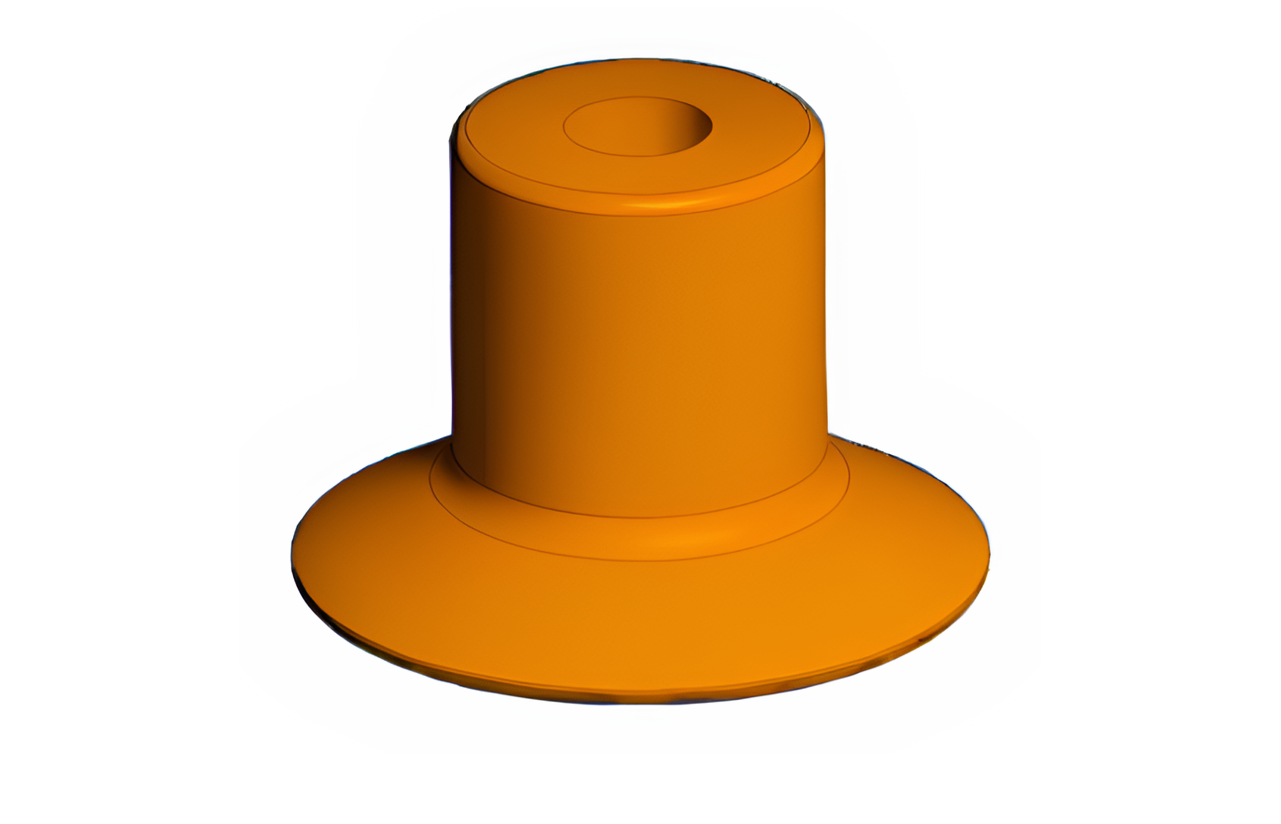

Flat Cups

Part Number: XP-F15S, XP-F20S, XP-F25S, XP-F30S, XP-F40S, XP-F50S, XP-F65S, XP-F75S, XP-F110S, XP-F150S, XP-F240S

Cup Material: Silicone - for either cold or high-temperature applications or where greater flexibility will improve conformance to a part.
Cup Diameter:
15, 20, 25, 30, 40, 50, 65, 75, 110, 150, 240 mm
Cup Fitting:
See cup fitting section for available threads
Cup Filter:
See cup filter section for available filters


For further information refer to
Online Specs
Oval Cups

Part Number: Cleated Bottom: OF-60X140S, OF60X140S-G
                         Smooth Bottom:
OC-60X140S, OC-60X140S-G


Cup Material: Silicone - for either cold or high-temperature applications or where greater flexibility will improve conformance to a part.
Cup Diameter:
60mm x 140mm
Cup Style:
Cleated Bottom, Smooth Bottom
Cup Ports:
NPTF, BSPP


For further information refer to
Online Specs
Specialty - Egg Cup

Part Number: EC34S-30R


Cup Material: Silicone - for either cold or high-temperature applications or where greater flexibility will improve conformance to a part.
Cup Diameter:
Designed to handle a wide range of sizes

For further information refer to
Online Specs
Universal Cups

Part Number: XP-U4S, XP-U6S, XP-U8S, XP-U10S, XP-U15S, XP-U20S, XP-U25S, XP-U30S, XP-U40S, XP-U50S

Cup Material: Silicone - for either cold or high-temperature applications or where greater flexibility will improve conformance to a part.
Cup Diameter:
4, 6, 8, 10, 15, 20, 25, 30, 40, 50 mm
Cup Fitting:
See cup fitting section for available threads
Cup Filter:
See cup filter section for available filters

For further information refer to
Online Specs
Nitrile
Double Bellows Cups

Part Number: XP-2B25N, XP-2B35N, XP-2B50N, XP-2B65N

Cup Material: Nitrile - For general-purpose normal ambient temperature applications.
Cup Diameter:
25, 35, 50, 65 mm
Cup Fitting:
See cup fitting section for available threads
Cup Filter: See cup fitting section for available filters

For further information refer to
Online Specs

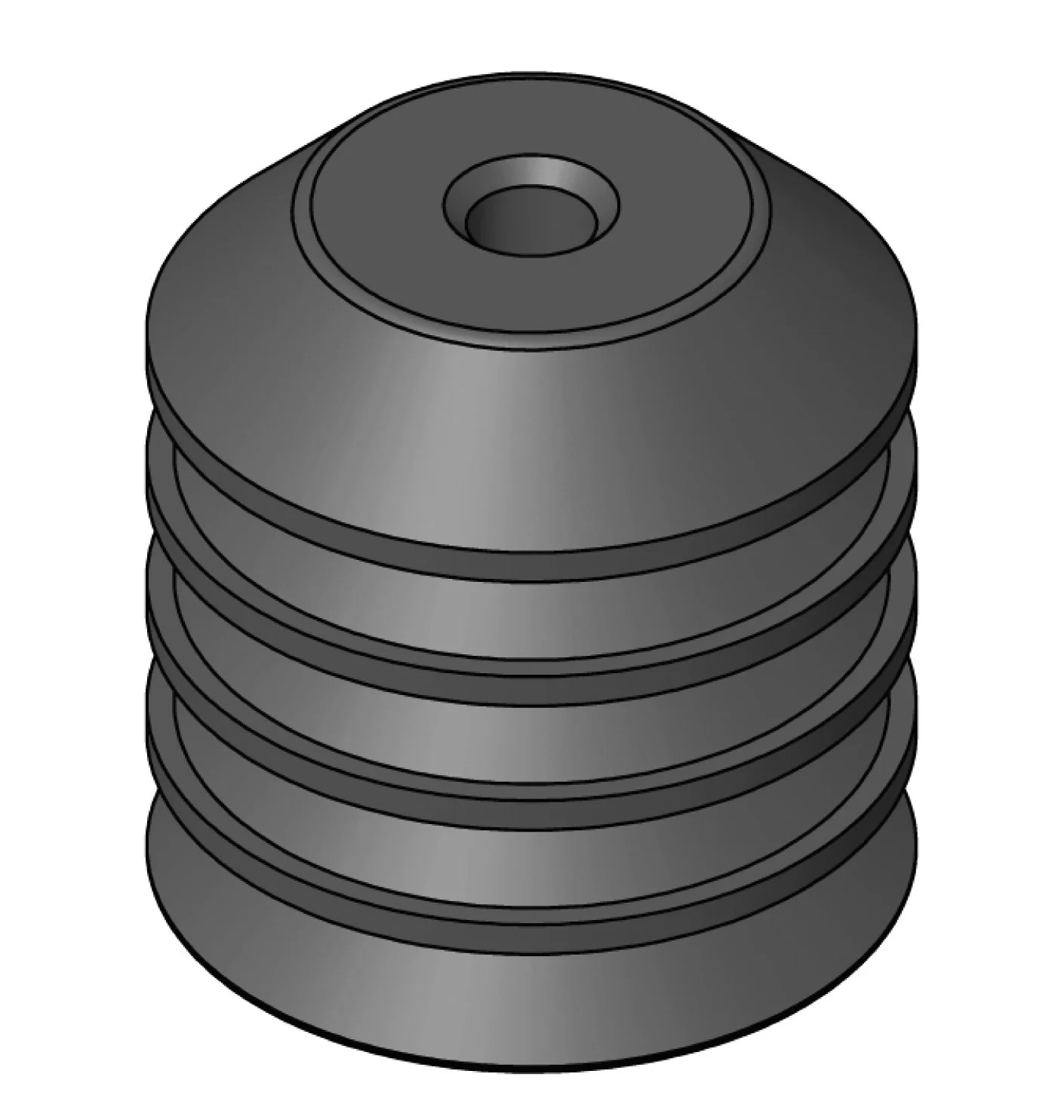

Multi Bellows

Part Number: XP-BL20N, XP-BL30N, XP-BL40N, XP-BL50N


Cup Material: Nitrile - For general-purpose normal ambient temperature applications.
Cup Diameter:
20, 30, 40, 50 mm
Cup Fitting:
See cup fitting section for available threads
Cup Filter: See cup fitting section for available filters

For further information refer to
Online Specs

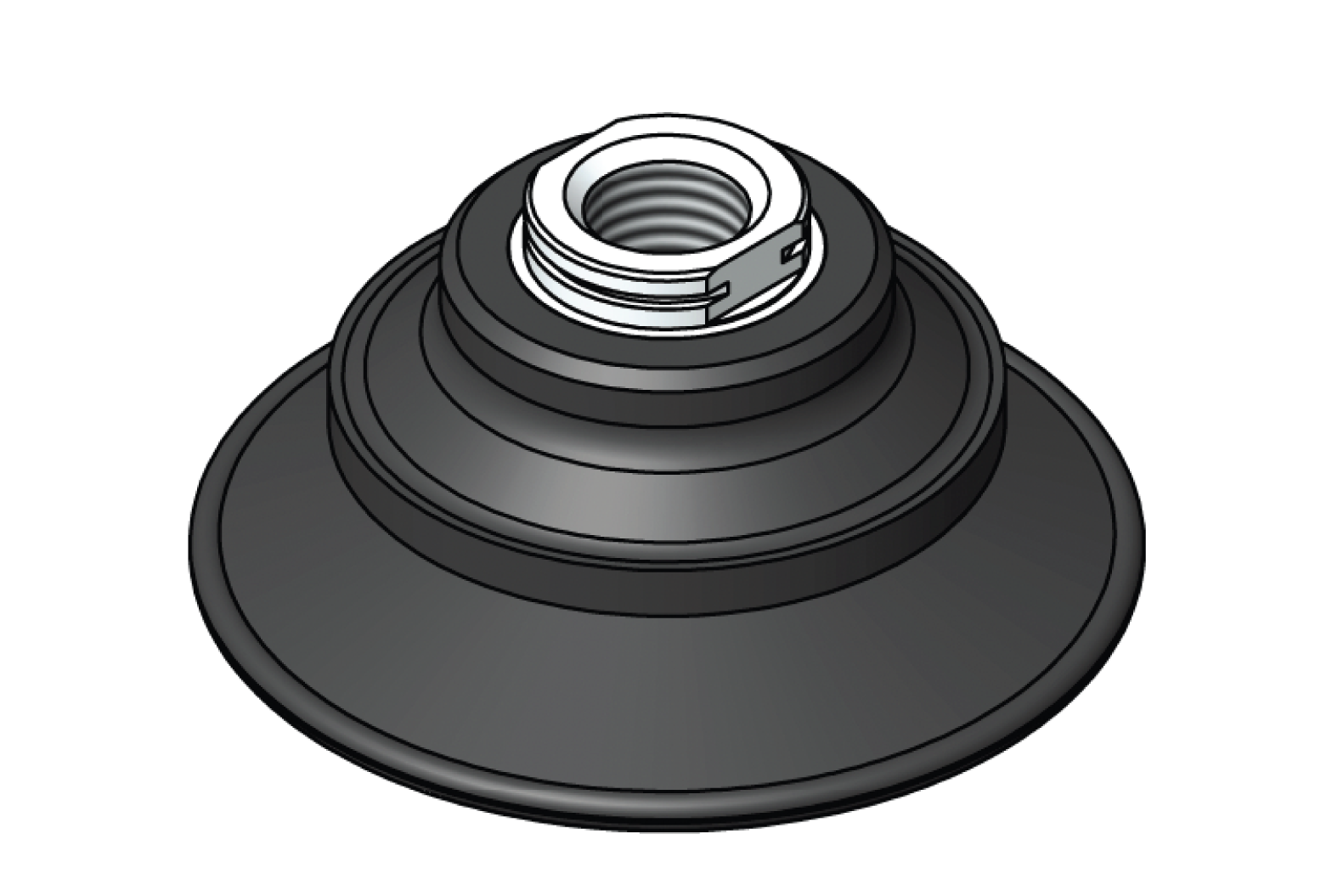

Bellows Traction Foot Cups

Part Number: XP-BF80N-38F, XP-BF100N-38F

Cup Material:  Nitrile - For general-purpose normal ambient temperature applications.
Cup Diameter:
80mm, 100mm


For further information refer to Online Specs
Deep Cups

Part Number: XP-D15N, XP-D20N, XP-D30N, XP-D40N, XPD-50N

Cup Material: Nitrile - For general-purpose normal ambient temperature applications.
Cup Diameter:
15, 20, 30, 40, 50mm
Cup Fitting:
See cup fitting section for available threads
Cup Filter:
See cup filter section for available filters



For further information refer to
Online Specs

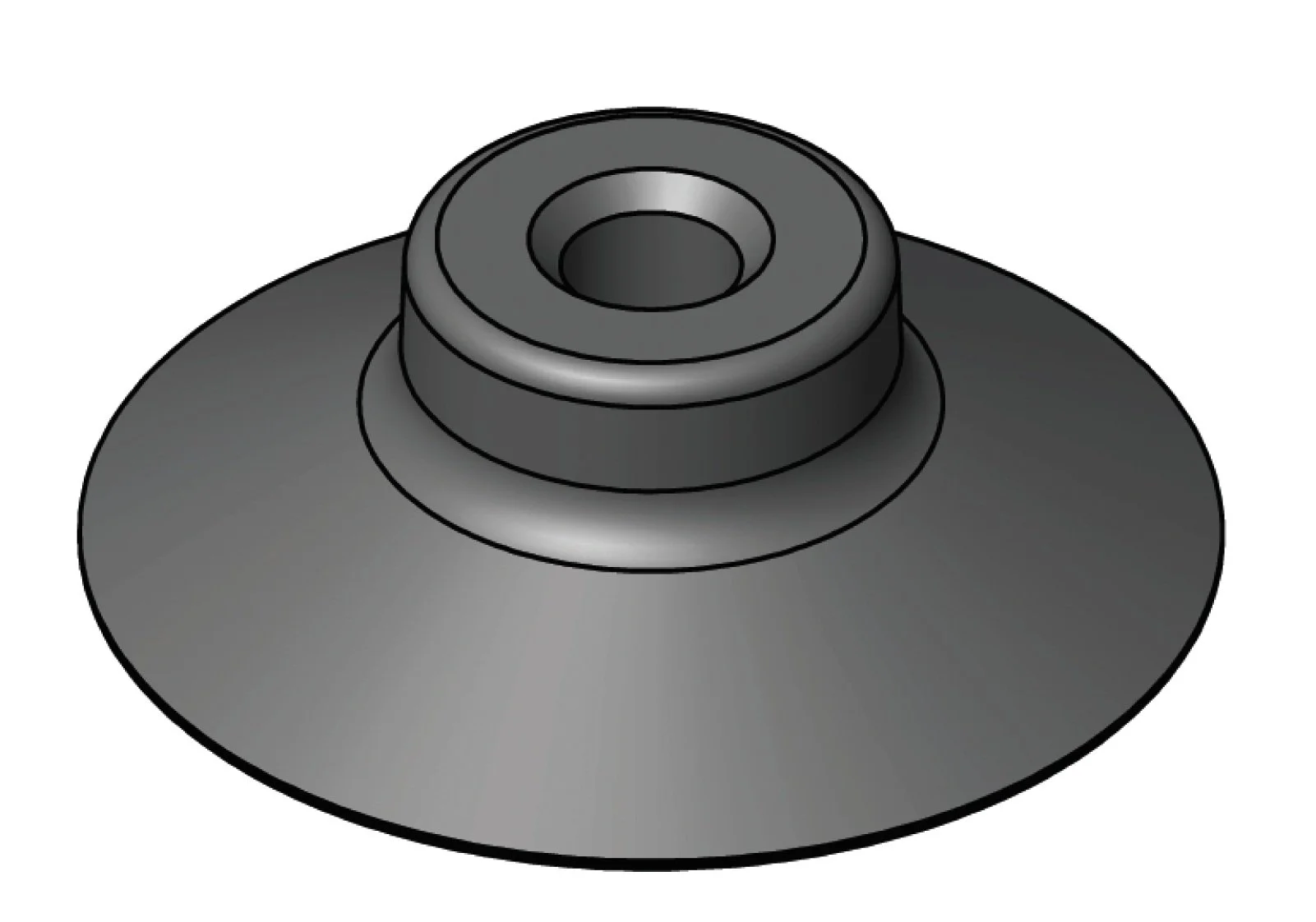

Flat Cups

Part Number: XP-F15N, XP-F20N, XP-F25N, XP-F30N, XP-F40N, XP-F50N, XP-F65N, XP-F75N, XP-F110N, XP-F150N

Cup Material: Nitrile - For general-purpose normal ambient temperature applications.
Cup Diameter:
15, 20, 25, 30, 40, 50, 65, 75, 110, 150 mm
Cup Fitting:
See cup fitting section for available threads
Cup Filter:
See cup filter section for available filters


For further information refer to
Online Specs
Flat Concave Cups

Part Number: XP-FC50N, XP-FC75N, XP-FC100N


Cup Material: Nitrile - For general-purpose normal ambient temperature applications.
Cup Diameter:
50, 75, 100 mm
Cup Fitting:
See cup fitting section for available threads
Cup Filter:
See cup filter section for available filters


For further information refer to
Online Specs

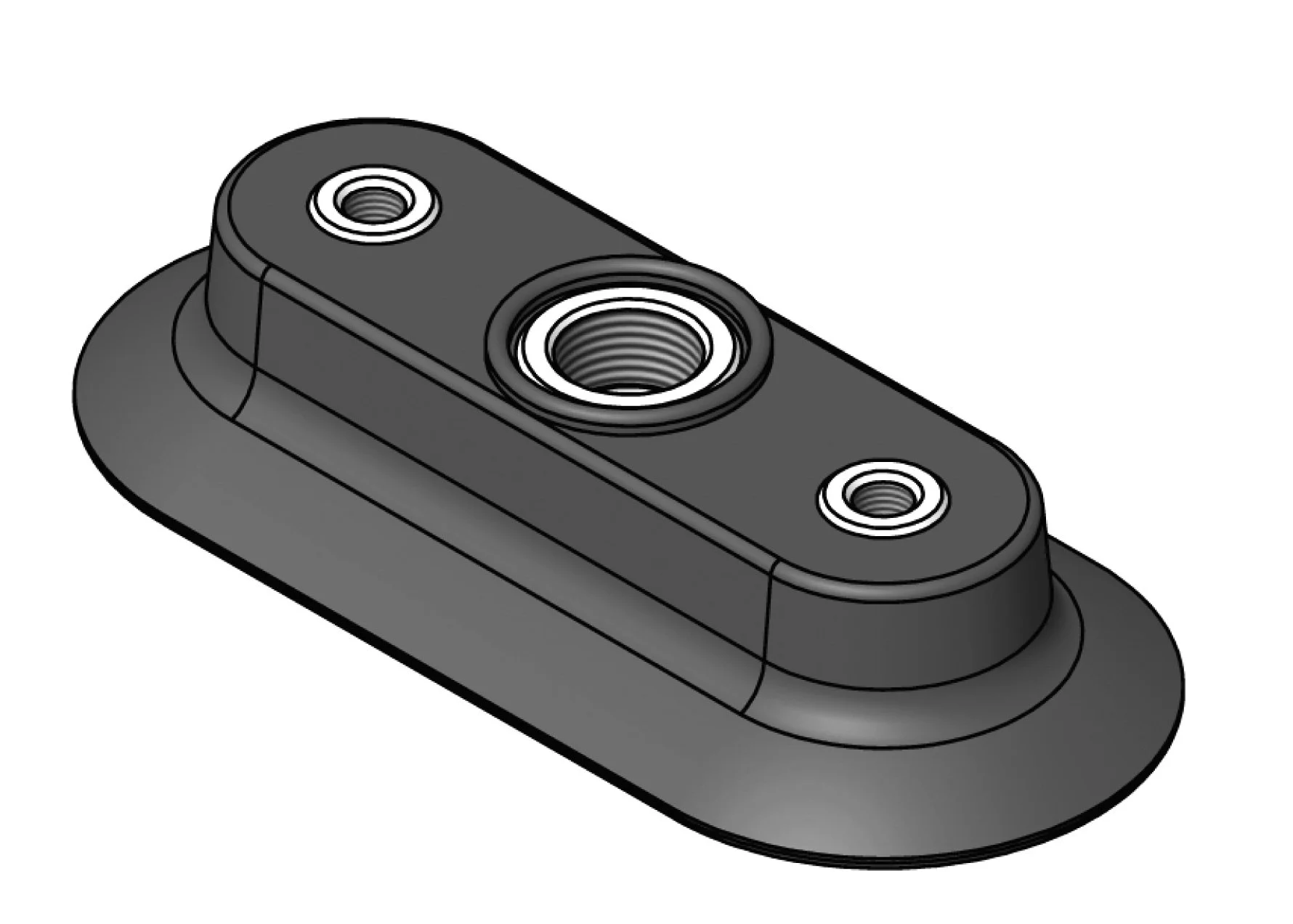

Oval Cups

Part Number: Cleated Bottom: OF-60X140N, OF60X140N-G
                         Smooth Bottom:
OC-60X140N, OC-60X140N-G


Cup Material: Nitrile - For general-purpose normal ambient temperature applications.
Cup Diameter:
60mm x 140mm
Cup Style:
Cleated Bottom, Smooth Bottom
Cup Ports:
NPTF, BSPP


For further information refer to
Online Specs
Specialty - Woodworking Clamp Pad

Part Number: 11-0079N

Cup Material: Nitrile - For general-purpose normal ambient temperature applications.

For further information refer to
Online Specs
Universal Cups

Part Number: XP-U4N, XP-U6N, XP-U8N, XP-U10N, XP-U15N, XP-U20N, XP-U25N, XP-U30N, XP-U40N, XP-U50N

Cup Material: Nitrile - For general-purpose normal ambient temperature applications.
Cup Diameter:
4, 6, 8, 10, 15, 20, 25, 30, 40, 50 mm
Cup Fitting:
See cup fitting section for available threads
Cup Filter:
See cup filter section for available filters

For further information refer to
Online Specs
