AIGNEP CYLINDERS
AIGNEP's motto is "To be present on the market with strength". A company that, since its foundation 30 years ago, keeps accepting the challenge of a multiform market in the compressed air world.
Should you require further information or cannot locate a product/service please do not hesitate to make contact - sales@macvalves.co.nz
Click here to download the full Aignep Cylinder PDF catalogue.
Mini Series Cylinder ISO-6432

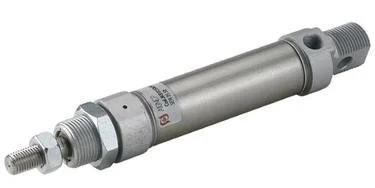

MB MINI SERIES CYLINDER
Single acting magnetic.
Bore sizes: 8, 12, 16, 20, 25mm
Stroke: 10mm up to 185mm+
Custom sizes upon request.
MD MINI SERIES CYLINDER
Single acting magnetic & spring thrust.
Bore sizes: 16, 20, 25mm
Stroke: 10mm up to 185mm+
Custom sizes upon request.
MF MINI SERIES CYLINDER
Double acting magnetic.
Bore sizes: 10, 12, 16, 20, 25mm
Stroke: 10mm up to 600mm+
Custom sizes upon request.

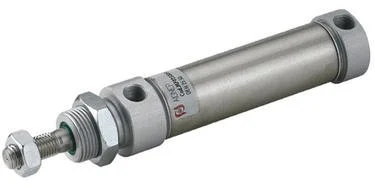

MFN MINI SERIES CYLINDER
Double acting magnetic head cut, feed at 90°.
Bore sizes: 16, 25mm
Stroke: 15mm up to 175mm+
MH MINI SERIES CYLINDER
Double acting cushioned magnetic.
Bore sizes: 16, 20, 25mm
Stroke: 10mm up to 420mm+
Custom sizes upon request.
Download catalogue
MJ MINI SERIES CYLINDER
Double acting magnetic with double rod end.
Bore sizes: 20, 25mm
Stroke: 200mm*
Custom sizes upon request.
ML MINI SERIES CYLINDER
Double cushioned magnetic with double rod end.
Bore sizes: 25mm
Stroke: 200m*
Custom sizes upon request.
A95 Series Cylinder ISO-6432
AB A95 SERIES CYLINDER
Single acting magnetic.
Bore sizes: 32, 40, 50, 63mm
Stroke: 440mm*
Custom sizes upon request.

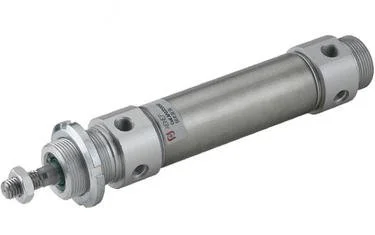

AF A95 SERIES CYLINDER
Double acting magnetic.
Bore sizes: 32, 40mm
Stroke: 25 up to 330+
Custom sizes upon request.
Download catalogue
AH A95 SERIES CYLINDER
Double acting cushioned magnetic.
Bore sizes: 32, 40, 50, 63mm
Stroke: 25 up to 250+
Custom sizes upon request.
COMPACT CYLINDERS ISO-21287
WB COMPACT CYLINDER
Single acting magnetic. Male rods are available.
Bore sizes: 20 up to 100mm
Stroke: 5 - 200mm*
Custom sizes upon request.
WD COMPACT CYLINDER
Single acting magnetic & spring thrust.
Male rods are available.
Bore sizes: 20 up to 100mm
Stroke: 5 - 200mm*
Custom sizes upon request.
WF COMPACT CYLINDER
Double acting magnetic. Male rods are available.
Bore sizes: 20 up to 100mm
Stroke: 5 - 200mm*
Custom sizes upon request.
WJ COMPACT CYLINDER
Double acting magnetic with double rod end. Male rods are available.
Bore sizes: 20 up to 100mm
Stroke: 5 - 200mm*
Custom sizes upon request.
COMPACT & TWIN GUIDED CYLINDERS
QD COMPACT CYLINDER
Single acting magnetic & spring thrust.
Bore sizes: 20mm
Stroke: 25mm*
Custom sizes upon request.
Download catalogue
QFM COMPACT CYLINDER
Double acting magnetic.
Bore sizes: 20, 50mm
Stroke: 10 up to 25mm+
Custom sizes upon request.
Download catalogue
QFA COMPACT CYLINDER
Double acting magnetic anti-rotation.
Bore sizes: 8mm, 12mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 80mm, 100mm
TWIN GUIDED 'CG01' CYLINDER
Twin guided double-acting magnetic. Air (Lubrication not necessary).
Bore sizes: 12mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm
Download catalogue
