LANAMATIC RODLESS CYLINDERS
Lanamatic (Steinhausen, Switzerland) produce high quality rodless/slide cylinders. The cylinders are offered in six diameters between 18mm and 63 mm. Their modular construction means the cylinders can be adapted for special applications using various kit components. The kit-type design means Mac Valves Pacific are able to build custom cylinders to specification in-house, and with short delivery times.
Should you require further information or cannot locate a product/service please do not hesitate to make contact - sales@macvalves.co.nz
Click here to download the full Lanamatic Linear Cylinders PDF catalogue
LANAMATIC CYLINDERS
ZS STANDARD CYLINDER
Standard features
Guiding cylinder with linear guide way.
Download catalogue
ZK STANDARD CYLINDER
Standard features with compatible stroke
Guiding cylinder with linear guide way.
Download catalogue
ZS+ STANDARD CYLINDER W/ BROAD YOKE HEAD
Standard cylinder with broad yoke head for absorbing greater forces and torques.
ZK+ CYLINDER W/ BROAD YOKE HEAD
Standard cylinder with broad yoke head for absorbing greater forces and torques. Short piston.

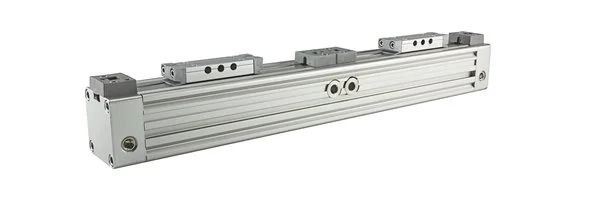

ZGK GRIPPING CYLINDER -INDENT
Special cylinder with 2 or more separate cylinder chambers in one profile tube with one yoke each. Short piston.
Download catalogue
ZF GUIDING CYLINDER
Guiding cylinders have an additional external guide carriage. The carriage is stabilised by guiding bars in the grooves of the profile tube. Standard with external carriage.
ZFK GUIDING CYLINDER
Guiding cylinders have an additional external guide carriage. The carriage is stabilised by guiding bars in the grooves of the profile tube. Short with external carriage.

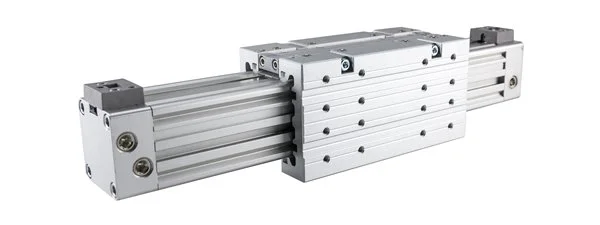

ZFF GUIDING CYLINDER
Guiding cylinders have an additional external guide carriage. The carriage is stabilised by guiding bars in the grooves of the profile tube. Two external carriages.

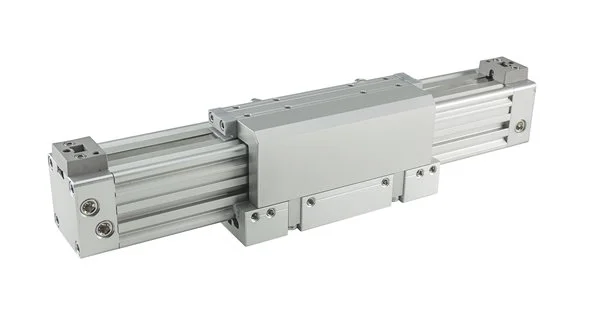

ZFU GUIDING CYLINDER -INDENT
Guiding cylinders have an additional external guide carriage. The carriage is stabilised by guiding bars in the grooves of the profile tube. With external carriage underneath.
ZSS GUIDING CYLINDER
Guiding cylinders have an additional external guide carriage. The carriage is stabilised by guiding bars in the grooves of the profile tube. With external ball bearing.

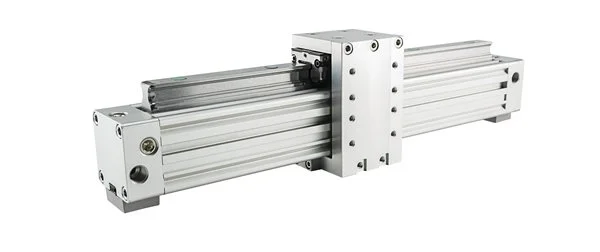

ZKS GUIDING CYLINDER
Guiding cylinders have an additional external guide carriage. The carriage is stabilised by guiding bars in the grooves of the profile tube. Short with external ball bearing.
ACCESSORIES

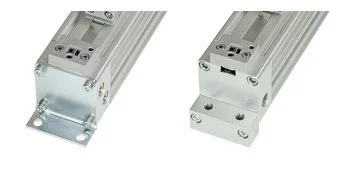

FB - MOUNTING BRACKET/BLOCK
Part Number: FBXX
Comes as a 2-piece set.
Sizes depend on the cylinder.

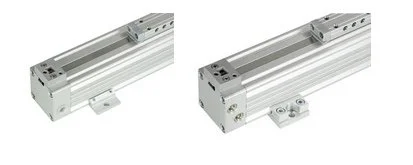

MB - MIDDLE SUPPORT
Part Number: MBXX
Comes as a 2-piece set.
Sizes depend on the cylinder.

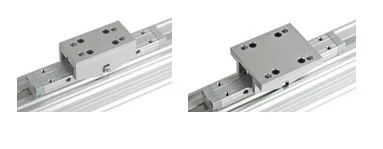

PB - SWINGING BRIDGE
Part Number: PBXX
Can come as small or large.
Sizes depend on the cylinder.

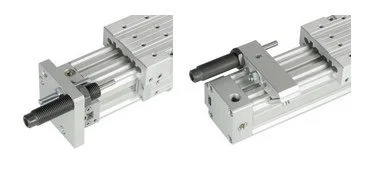

AS - SHOCK STOPS
Part Number: ASXX
Can be fixed or adjustable
Sizes depend on the cylinder.
