PHD INC. CYLINDERS
PHD Inc. has been creating cutting-edge industrial automation solutions since 1957. Today, their expansive product line has become an industry gold standard. PHD offers a diverse spectrum of built-to-need actuators, OEM drop-in components, electric actuators, specialty workholding clamps, and motion control robots. Long life and superior design have become hallmarks of the PHD brand.
CAD drawings are available on request.
Should you require further information or cannot locate a product/service please do not hesitate to make contact - sales@macvalves.co.nz
Click here to download the full PHD Cylinders PDF catalogue.
PHD INC. CYLINDERS - all phd products are indent items
COMPACT 'CRS'
Bore sizes: 12mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm
Compact, Low profile, Optional shock pads extend cylinder life and minimize piston noise.
GUIDED 'CTS'
Bore sizes: 12mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm
Compact, Hard chrome plated guide shafts for anti-rotation & increased side load capacity, Multiple mounting options.

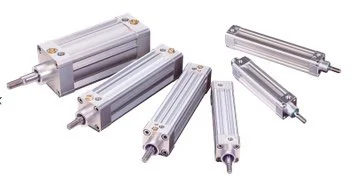

ISO 'CV'
Bore sizes: CVC20, CVC25, CVB20, CVB25, 12mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 80mm, 100mm
ISO/VDMA interchange with PTFE wear ring & built-in shock pads.
NFPA 'A, AV & HV'
Bore sizes: A & AV: 3/4", 1", 1-1/8", 1-3/8"
HV: 3/4", 1", 1-1/8", 1-3/8"
Repairable construction for extended life and long-term savings.
AIR/OIL 'TD'
Bore sizes: TD: 3/4", 1", 1-1/8", 1-3/8" TD-X or TD-C: 3/4", 1", 1-1/8", 1-3/8"
Precise speed control and smooth operation at low velocities. Repairable construction for extended life and long term savings.
PHD product information
BACK-TO-BACK 'AV2, HV2, A2'
Bore sizes: A2, AV2: 3/4", 1", 1-1/8", 1-3/8" (AV2) HV2:3/4", 1", 1-1/8", 1-3/8"
Long life design for low maintenance. Repairable construction for extended life and long term savings.

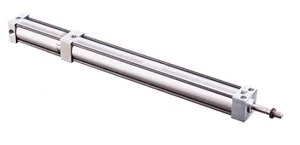

3 POSITION 'A3V, H3V, A3'
Bore sizes: A3, A3V: 3/4", 1", 1-1/8" A3V: 1-3/8" H3V: 3/4", 1", 1-1/8", 1-3/8"
Long life design for low maintenance. Repairable construction for extended life and long term savings.

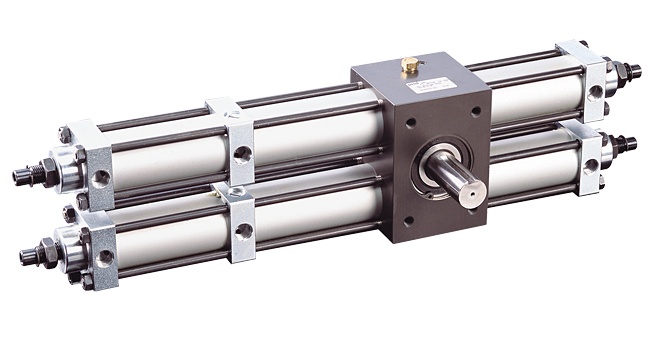

ROTARY ACTUATORS STYLES
Bore sizes: 12 - 40mm
A complete line of PHD pneumatic and hydraulic rotary actuators is offered with a wide range of options.
PHD product information
NON-ROTATING 'NPG, NHG'
Bore sizes: 1-1/8", 1-3/8"
Long life design for low maintenance. Non-rotating rod, adjustable positions. Repairable construction for extended life and long term savings.
CLEANROOM 'AV, A, -O'
Bore sizes: 3/4", 1", 1-1/8"
Can be used in Class 100 Cleanroom applications. Vacuum port and special bushings offer rod protection.
RODLESS 'SFP SLIDE'
Bore sizes: 27, 40mm
Space saving design. Smooth, precise movement. High load capacity with very low deflection.
