ROYAL ‘L’ NFPA SERIES CYLINDERS
Royal L-Series pneumatic and low pressure hydraulic cylinders are tie rod style NFPA standard. They have many standard design options limiting the need for customization. Twenty-six mounting styles are available. Bore sizes are from 1 1/2" to 12". For other sizes or custom cylinders please contact Mac Valves Pacific. Also available with nitro-hardened rods.
CAD Drawings are available on request.
Scroll through the listed products below for individual product information or click the series link you would like to view:
Click here to download the full Royal ‘L’ Series Cylinders PDF catalogue.
ROYAL L SERIES CYLINDERS

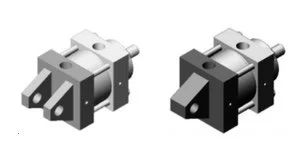

FIXED CLEVIS 'LC', PIVOT EYE 'LE'
Bore sizes: 1 1/2", 2", 2 1/2", 3 1/4", 4", 5", 6", 8", 10", 12"
Body: Made of nitrotec treated steel with Buna "N" seals
FOOT MOUNT 'LF'
Bore sizes: 1 1/2", 2", 2 1/2", 3 1/4", 4", 5", 6", 8", 10", 12"
Body: Made of nitrotec treated steel with Buna "N" seals
DETACHABLE BLIND END CLEVIS 'LMP', SELF ALIGNING EYE 'LW'
Bore sizes: 1 1/2", 2", 2 1/2", 3 1/4", 4", 5", 6"
Body: Made of nitrotec treated steel with Buna "N" seals

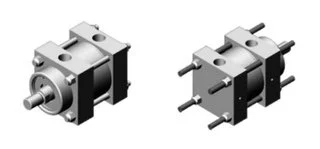

NO MOUNT 'LNM', EXTENDED TIE-RODS BOTH ENDS 'LNA'
Bore sizes: 1 1/2", 2", 2 1/2", 3 1/4", 4", 5", 6", 8", 10", 12"
Body: Made of nitrotec treated steel with Buna "N" seals
EXTENDED TIE-RODS BLIND END 'LNB', EXTENDED TIE-RODS GLAND END 'LNC'
Bore sizes: 1 1/2", 2", 2 1/2", 3 1/4", 4", 5", 6", 8", 10", 12"
Body: Made of nitrotec treated steel with Buna "N" seals
ROD END RECTANGULAR FLANGE 'LR', ROD END SQUARE FLANGE 'LRS'
Bore Sizes: 1 1/2", 2", 2 1/2", 3 1/4", 4", 5", 6"
Body: Made of nitrotec treated steel with Buna "N" seals
Download catalogue
BLIND END RECTANGULAR FLANGE 'LB', BLIND END SQUARE FLANGE 'LBS'
Bore sizes: 1 1/2", 2", 2 1/2", 3 1/4", 4", 5", 6"
Body: Made of nitrotec treated steel with Buna "N" seals

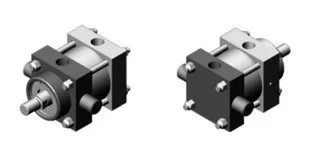

ROD END TRUNNION 'LTR', BLIND END TRUNNION 'LTB'
Bore Sizes: 1 1/2", 2", 2 1/2", 3 1/4", 4", 5", 6", 8", 10", 12"
Body: Made of nitrotec treated steel with Buna "N" seals

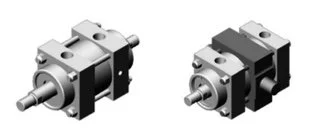

DOUBLE ROD 'LD', MID TRUNNION 'LT'
Bore sizes: 1 1/2", 2", 2 1/2", 3 1/4", 4", 5", 6", 8", 10", 12'
Body: Made of nitrotec treated steel with Buna "N" seals

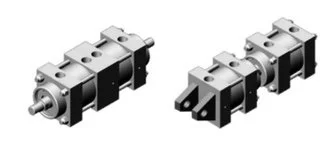

COMMON HEAD 'LCH', COMMON ROD 'LCR'
Bore sizes: 1 1/2", 2", 2 1/2", 3 1/4", 4", 5", 6", 8", 10", 12'
Body: Made of nitrotec treated steel with Buna "N" seals
COMMON HEAD/COMMON ROD 'LCHR'
Bore sizes: 1 1/2", 2", 2 1/2", 3 1/4", 4", 5", 6", 8", 10", 12'
Body: Made of nitrotec treated steel with Buna "N" seals
