speciality CYLINDERS
Most of the below cylinders are indent items, please contact us for availability.
Should you require further information or cannot locate a product/service please do not hesitate to make contact - sales@macvalves.co.nz
BIMBA CYLINDERS
ORIGINAL LINE CYLINDER
Bore sizes: 5/16", 7/16", 9/16", 3/4", 7/8", 1-1/16", 1-1/4", 1-1/2", 1-3/4", 2", 2-1/2", 3"
Wide variety of stroke lengths and mounting styles. Permanent grease lubricant requires no additional lubrication during service.
POSITION FEEDBACK - INDENT
Bore sizes: 1-1/16", 1-1/2", 2",
2-1/2", 3"
Position sensing cylinder for measurement, closed loop positioning and on-the-fly applications.
REPAIRABLE HOLE PUNCH CYLINDER
Bore sizes: 3/4"
Cutter Diameters: 1/4", 5/16”, 3/8”, 7/16”, 1/2", 9/16”, 5/8”
Designed with a 1" stroke with a hardened steel cutter. These are designed to punch millions of holes in thin poly material (3mm or less).
NON-ROTATING - INDENT
Bore sizes: 9/16”, 3/4", 1-1/16”, 1-1/2”, 2”, 2-1/2"
This features permanent grease lubrication. This cylinder has a square piston rod to prevent rotation. Stainless steel piston rod is standard. Urethane rod seal. Rotational control of ± 3°
Download catalogue
twin-guided & CLAMP CYLINDERS

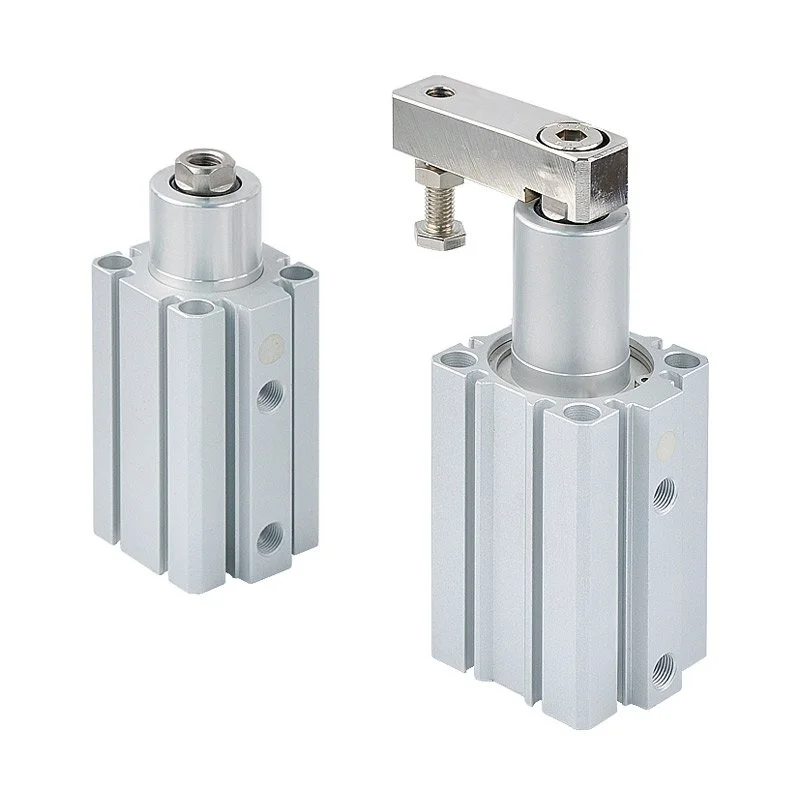

CLAMP 'MCKC' - INDENT ITEM
Bore sizes: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100mm
Lightweight and space saving. Single and double acting available.
TWIN GUIDED 'MCGA' - INDENT ITEM
Bore sizes: 160, 200, 250, 320mm
Light alloy body drawn and anodized inside and outside. Tie rods in zinc plated steel. Body in steel lapped.
TWIN GUIDED 'MGT' - INDENT ITEM
Bore sizes: 20, 25, 32, 40, 50, 63mm
Guide units can be assembled to cylinders to conform to ISO6432. Anti rotation with use of external guide rods.
TWIN GUIDED 'CG01' - INDENT ITEM
Bore sizes: 12mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm
Twin guided double-acting magnetic. Air (Lubrication not necessary).
