FUNCTION FITTINGS - FLOW CONTROL REGULATORS
Should you require further information or cannot locate a product/service please do not hesitate to make contact - sales@macvalves.co.nz
Click here to download the full Fittings & Tubing PDF catalogue or see below for individual product information. Scroll through the listed products below for individual product information.
Exhaust Control
RECESSED FLOW CONTROL
Part Number: AI55900-XX
Threads: 1/8, 1/4, 3/8”
Push-in: 6, 8, 10mm
Recessed orienting, universal short.
UNIVERSAL SHORT FLOW CONTROL
Part Number: AI55905-XX
Threads: M5, 1/8, 1/4, 3/8, 1/2”
Push-in: 4, 6, 8, 10, 12mm
Orienting flow control, universal short.
RECESSED NICKEL PLATED
Part Number: AI57901-XX
Threads: 1/8, 1/4, 3/8”
Push-in: 4, 6, 8mm
Recessed orienting, universal short.
Download catalogue
RECESSED ADJUSTMENT SCREW
Part Number: LF7010-XX-XX
Threads: M5, 1/8, 1/4, 3/8”
Push-in: 4, 6, 8, 10mm
Exhaust flow, thread and push-in connections. Screwdriver adjustment.
MINI EXTERNAL SCREW
Part Number: LF7660-0X-1X
Threads: M5, 1/8, 1/4, 3/8”
Push-in: 4, 6, 8mm
Exhaust flow, external screw, push-in connection. Lock nut adjustment.
COMPACT SWIVEL OUTLET
Part Number: LF7040-XX-XX
Threads: 1/4”
Push-in: 6, 10mm
Swivel outlet with external screw, push-in connection and lock nut adjustment.

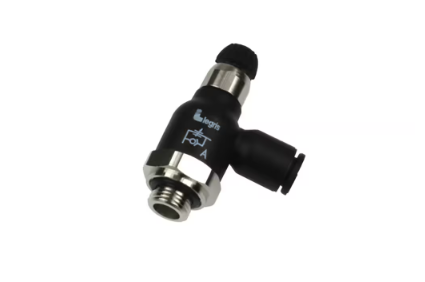

EXHAUST FLOW CONTROL
Part Number: LF7060-XX-XX
Threads: 1/8, 1/4, 3/8, 1/2”
Push-in: 4, 6, 8, 10, 12mm
Banjo with recessed screw and push-in connection, with lock nut adjustment.
PUSH-IN NICKEL-PLATED BRASS
Part Number: LF7100-XX-XX
Threads: 1/8”
Push-in: 6mm
Swivel outlet, lock nut adjustment.
THREADED NICKE-PLATED BRASS
Part Number: LF7110-XX-XX
Threads: 1/8”
Swivel outlet, lock nut adjustment.
EXHAUST: COMPACT PLUG-IN
Part Number: LF7030-06-00
Push-in: 6mm
"Plug-in" with external screw, push-in connection and lock nut adjustment.
Download catalogue
Supply Control
SUPPLY FLOW CONTROL
Part Number: AI55915-XX
Threads: 1/8, 1/4”
Push-in: 6, 8mm
Orienting flow control, universal short.
RECESSED ADJUSTMENT SCREW
Part Number: LF7011-06-19
Threads: M5
Push-in: 6mm
Supply flow, thread and push-in connections. Screwdriver adjustment.

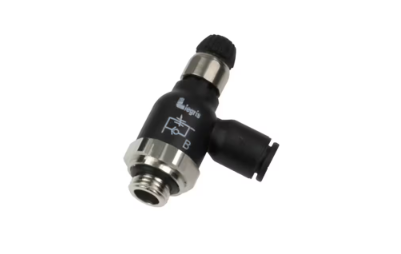

EXTERNAL SCREW
Part Number: LF7061-XX-XX
Threads: 1/8, 1/4, 3/8, 1/2”
Push-in: 4, 6, 8, 10, 12mm
External screw, thread and push-in connection. Lock nut adjustment.
MINI EXTERNAL SCREW
Part Number: LF7669-0X-1X
Threads: M5”
Push-in: 6mm
Supply flow, external screw, push-in connection. Lock nut adjustment.
in-line connection

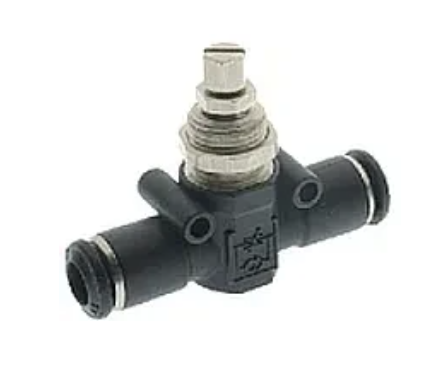

PUSH-IN PANEL MOUNTABLE
Part Number: AI55940-0X
Push-in: 4, 6, 8, 10mm
In-line tube to tube connection. Panel mountable.

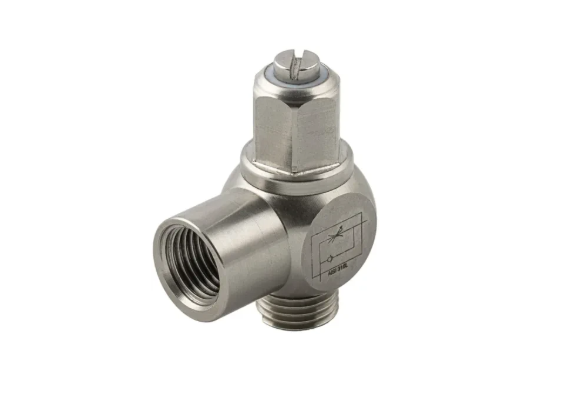

STAINLESS STEEL IN-LINE
Part Number: AI66085-0X
Thread Sizes: 1/8, 1/4, 3/8, 1/2”
Temperatures: -10°C to 160°C
Threaded in-line connection.
THREADED CONNECTION
Part Number: LF7771-XX-00
Threads: 1/8, 1/4, 3/8”
Uni-directional flow. Prevents unwanted adjustment with a lock nut.
Download catalogue
PANEL MOUNTABLE
Part Number: LF7770-XX-00
Push-in: 4, 6, 8mm
Uni-directional flow. Prevents unwanted adjustment with a lock nut.
Download catalogue
bi / uni-directional
UNI-DIRECTIONAL
Part Number: AI08850-00-00X
Thread Sizes: 1/8, 1/4”
One way flow path, BSPP.
BI-DIRECTIONAL
Part Number: AI08860-00-00X
Thread Sizes: 1/8, 1/4”
Pressure can flow in both directions, BSPP.
BI-DIRECTIONAL PUSH-IN
Part Number: LF7772-08-00
Push-in: 8mm
Bi-directional flow. Prevents unwanted adjustment with a lock nut.
Download catalogue
BI-DIRECTIONAL PANEL MOUNTING
Part Number: LF7776-12-00
Push-in: 12mm
Bi-directional flow. Prevents unwanted adjustment with a lock nut.
Download catalogue
