FUNCTION FITTINGS - PRESSURE Reducers & sensors

Should you require further information or cannot locate a product/service please do not hesitate to make contact - sales@macvalves.co.nz

Click here to download the full Fittings & Tubing PDF catalogue or see below for individual product information. Scroll through the listed products below for individual product information.

SENSOR FITTINGS

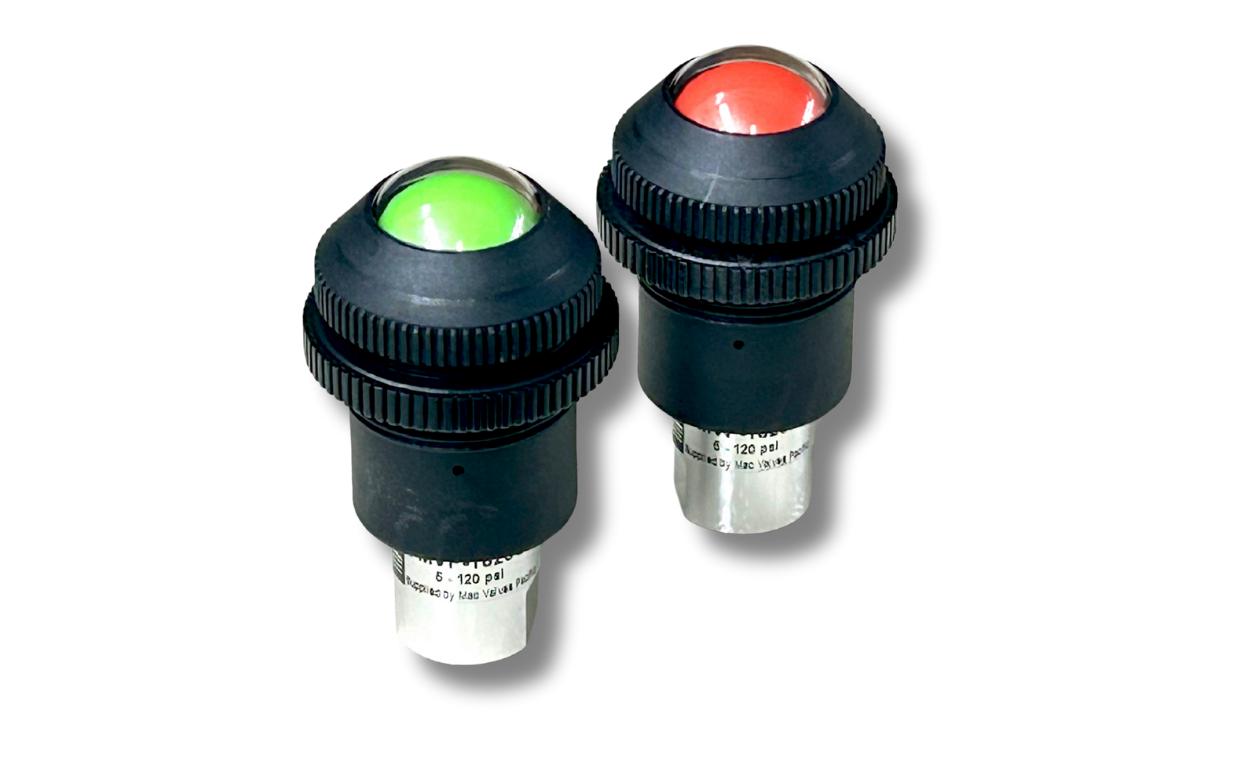

PRESSURE WINK

Part Number: MVP-1820X
When pressure is present, the pressure wink will change from green to red. The option is available to have a red to green indicator.



Contact us for more information

END OF STROKE SENSOR

Part Number: LF7818-XX-XX
Max Working Pressure: 8 bar / 116 psi
Working Temperature: -15 to 60 °C
Compact with pneumatic or electronic exit, can be assembled on the cylinder or the control valves, easy to use due to their low exhaust back pressure.

Download catalogue

PRESSURE REGULATOR fittings

PRESSURE REGULATOR

Part Number: LF7300-XX-1X
Working Temperature: -10 to 70 °C
Threads: 1/8, 1/4, 3/8”
Push-in: 4, 6, 8, 10mm
Mounted in series on a manifold, these fittings control the supply required for each piece of equipment.

Download catalogue

PUSH-IN PRESSURE REGULATOR

Part Number: RVUMP-X
Working Pressure: 10 bar / 145 psi
Push-in: 6, 8mm
Comes with a relief valve for easy adjustments. It can be used as a reverse flow regulator by installing it between solenoid valve and actuator.

Download catalogue

SOFT START FITTINGS

FOR ISOLATING VALVE, BSPP

Part Number: LF7860-XX-XX
Max Working Pressure: 10 bar / 145 psi
Working Temperature: -15 to 60 °C
To be mounted on the FRL outlet or group of valves, they protect the whole downstream installation.

Download catalogue

FOR CONTROL VALVE, BSPP

Part Number: LF7870-XX-XX
Max Working Pressure: 10 bar / 145 psi
Working Temperature: -15 to 60 °C
To be mounted on a FRL outlet or a group of valves. The pressure speed of the valve can be adjusted to an optimum.

Download catalogue

PRESSURE REDUCERS

INSTANT CONNECTION MALE BSPP

Part Number: LF7318-0X-1X
Max Working Pressure: 8 bar / 116 psi
Working Temperature: -15 to 60 °C
Thread Size: 1/8”, 1/4”
An energy-saving tool by optimizing the pressure required for your cylinders.

Download catalogue

THREADED FEMALE/MALE BSPP

Part Number: LF7471-10-10
Max Working Pressure: 8 bar / 116 psi
Working Temperature: -15 to 60 °C
Thread Size: 1/8”
An energy-saving tool by optimizing the pressure required for your cylinders.

Download catalogue
