FITTINGS & TUBING - push-in FITTINGS - nickel plated brass
Should you require further information or cannot locate a product/service please do not hesitate to make contact - sales@macvalves.co.nz
Click here to download the full Fittings & Tubing PDF catalogue or see below for individual product information. Scroll through the listed products below for individual product information.
straights
METRIC & IMPERIAL STRAIGHT
Part Number: AI570X0-XX / AI89000-XX
Push-In: 4, 6, 8, 10, 12, 16mm
Thread: 1/8, 1/4, 3/8, 1/2”
Push-in connection to a universal (BSP/NPT) port. Parallel option available.
FEMALE STUD BSPP
Part Number: AI57030-XX
Push-In: 5, 6, 8, 10, 12mm
Thread: 1/8, 1/4, 3/8, 1/2”
In line connection of tubing with a female thread.
MALE STUD BSPT THREAD
Part Number: LF3601-XX-XX
Push-In: 6, 8mm
Thread: M5, 1/8, 1/4”
In line connection of tubing to a threaded port.
FEMALE STUD BSPP
Part Number: LF3614-08-XX
Push-In: 8mm
Thread: 1/8, 1/4”
In line connection of tubing with a female thread.
Elbows
PUSH-IN ELBOW
Part Number: AI57130-XX or 89130-XX
Push-In: 4, 5, 6, 8, 10, 12mm
Metric or imperial push-in connection of tubing at a 90° angle.
MALE UNIVERSAL THREAD (BSP/NPT)
Part Number: AI5711X-XX or 89116-XX
Push-In: 5, 6, 8, 10, 12mm
Thread: 1/8, 1/4, 3/8, 1/2”
Metric or imperial push-in at 90° to a universal (BSP/NPT) port. Parallel option
PUSH-IN EQUAL ELBOW
Part Number: LF3602-XX-XX
Push-In: 4, 6, 8, 10, 12mm
Push-in connection of tubing at a 90° angle.
MALE STUD ELBOW BSPT
Part Number: LF3609-XX-XX
Push-In: 4, 6, 8, 10, 12, 14mm
Thread: 1/8, 1/4, 3/8, 1/2”
Connection of tubing at a 90° angle to a threaded port.
tee’s
METRIC & IMPERIAL PUSH-IN TEE
Part Number: AI57230-XX
Push-In: 4, 5, 6, 8, 10, 12mm
Imperial: 1/8, 1/4, 3/8, 1/2”
Push-in connection of 3 tubes at a 90° angle.
METRIC & IMPERIAL BRANCH TEE
Part Number: AI57216-XX
Push-In: 5, 6, 8, 10, 12mm
Thread: 1/8, 1/4, 3/8, 1/2”
In-line connection to a universal (BSP/NPT) port. Parallel option available.
METRIC & IMPERIAL BRANCH TEE
Part Number: AI5722X-XX
Push-In: 6, 10mm
Thread: 1/8, 1/4”
Connection of 2 tubes at a 90° angle to a threaded port.
METRIC BRANCH TEE, BSPT
Part Number: LF3608-XX-XX
Push-In: 4, 6, 8, 10, 12mm
Thread: 1/8, 1/4, 3/8”
In-line connection of 2 tubes to a threaded port at 90°.
connectors
METRIC & IMPERIAL UNION
Part Number: AI57040-XX
Push-In: 4, 5, 6, 8, 10, 12, 14mm
Imperial: 1/8, 1/4, 3/8, 1/2”
In line push-in connection of 2 tubes of equal diameter.
METRIC & IMPERIAL EQUAL Y PIECE
Part Number: AI57310-XX
Push-In: 4, 5, 6, 8, 10mm
Imperial: 1/8, 1/4, 3/8”
Push-in connection of 2 tubes through to one inlet.
EQUAL CONNECTOR/UNION
Part Number: LF3606-XX-00
Push-In: 4, 6, 8, 10, 12mm
In line push-in connection of 2 tubes of equal diameter.
Download catalogue
High pressure
HIGH PRESSURE STRAIGHT
Part Number: AI58000-XX
Push-In: 4, 6mm
Thread: M6, 1/8, 1/4, M8, M10”
Push-in connection to an in-line threaded port.
HIGH PRESSURE UNION/CONNECTOR
Part Number: AI58040-XX
Push-In: 4, 6mm
In line push-in connection of 2 tubes of equal diameter.
FIXED TAPER ELBOW
Part Number: AI58100-XX
Push-In: 4, 6mm
Thread: M6, 1/8, 1/4, M8, M10”
Connection of tubing at a 90° angle to a taper threaded port.

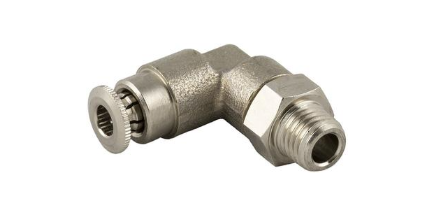

ORIENTING TAPER ELBOW
Part Number: AI58111-XX
Push-In: 4, 6mm
Thread: M6, 1/8, 1/4, M8, M10”
Connection of tubing at a 90° angle to a taper threaded port.
BULKHEADs
EQUAL BULKHEAD CONNECTOR
Part Number: LF3616-XX-00
Push-In: 4, 6, 8, 10mm
In-line connection of 2 tubes through a panel.
EQUAL BULKHEAD ELBOW
Part Number: LF3636-10-17
Push-In: 10mm
Thread: 3/8”

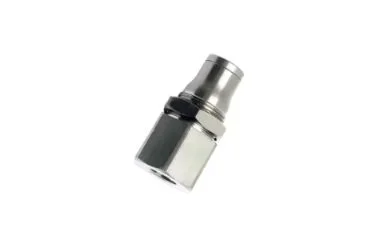

Connection of a tube with a female thread through a panel.
EQUAL BULKHEAD ELBOW
Part Number: LF3639-XX-00
Push-In: 4, 6, 8, 12mm
Connection of 2 tubes with a male thread through a panel.
METRIC/IMPERIAL BULKHEAD
Part Number: AI57050-XX or 89050-XX
Push-In: 4, 5, 6, 8, 10, 12mm
Imperial: 1/4, 1/2”
Connection of 2 tubes with a thread through a panel. Metric or imperial.
Recucers
PLUG-IN STEM REDUCER
Part Number: AI57700-XX or 89700-XX
Push-In: 4, 5, 6, 10mm
Imperial: 5/32, 5/16, 1/4, 3/8, 1/2”
In line connection of tube to a push-in stem. Metric & imperial option.
PLUG-IN STEM REDUCER
Part Number: LF3666-XX-XX
Push-In: 4, 6, 8, 10, 12mm
In line connection of inch tubing with a metric push-in fitting.
Download catalogue
BANJO

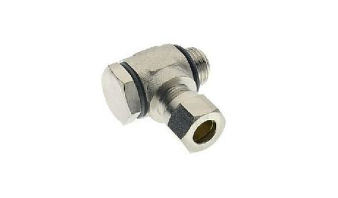

SINGLE BANJO WITH STEM
Part Number: AI09550-0X
Connection: 6mm x 1/8 or 1/4”
Connection of tubing at a 90° angle to a threaded port. The tube outlet can be orientated during assembly.

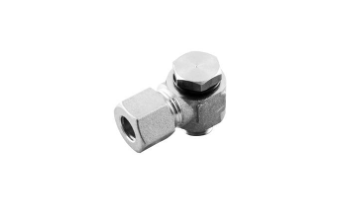

COMPRESSION BANJO WITH STEM
Part Number: AI13550-XX
Connection: 14, 22mm x 1/2, 3/4”
Connection of tube at a 90° angle to a threaded port. The tube outlet can be orientated during assembly.
BANJO STEM
Part Number: AI51410-XX
Push-In: M5, 1/8, 1/4, 1/2”
Connection of tubing at a 90° angle to a threaded port. The tube outlet can be orientated during assembly.
