FITTINGS & TUBING - push-in FITTINGS - technical polymer
Should you require further information or cannot locate a product/service please do not hesitate to make contact - sales@macvalves.co.nz
Click here to download the full Fittings & Tubing PDF catalogue or see below for individual product information. Scroll through the listed products below for individual product information.
Straights
MALE UNIVERSAL THREAD (NPT/BSP)
Part Number: AI55000-XX
Push-In: 4, 6, 8, 10, 12mm
Threads: 1/8, 1/4, 3/8, 1/2”
In-line push-in connection of tubing to a universal short thread.
Download catalogue
MALE PARALLEL THREAD
Part Number: AI50020N-XX
Push-In: 4, 6, 8mm
Threads: 1/8, 1/4, 3/8”
In-line push-in connection of tubing to a parallel thread.
Download catalogue
FEMALE STUD BSPP
Part Number: AI50030N-XX
Push-In: 10mm
Threads: 1/4”
In line connection of tubing with a female BSPP thread.
Download catalogue
MALE THREAD WITH STEM
Part Number: AI50600-XX
Plug-In: 5, 6, 8mm
Threads: 1/8, 1/4”
Connection a tube to tube fitting to a BSPP threaded port.
Download catalogue
MALE STUD BSPT
Part Number: LF3175-XX-XX
Push-In: 4, 6, 8, 10, 12mm
Threads: 1/8, 1/4, 3/8, 1/2”
In-line push-in connection of tubing to a threaded port.
Download catalogue
MALE STUD BSPP
Part Number: LF3101-XX-XX
Push-In: 4, 6, 8, 10, 12mm
Threads: M5, 1/8, 1/4, 3/8, 1/2”
In-line push-in connection of tubing to a threaded port.
Download catalogue
FEMALE STUD BSPP
Part Number: LF3114-XX-XX
Push-In: 4, 6, 8, 10, 12mm
Threads: 1/8, 1/4, 3/8, 1/2”
In line connection of tubing with a female thread.
Download catalogue
MALE STUD STANDPIPE BSPT
Part Number: LF3121-XX-XX
Plug-In: 4, 6, 8, 10, 12mm
Threads: 1/8, 1/4, 3/8, 1/2”
Connection a tube to tube fitting to a threaded port.
Download catalogue
ELBOWs
PUSH-IN EQUAL & UNEQUAL ELBOW
Part Number: AI55130-XX
Push-In: 4, 6, 8, 10, 12mm
Connection at a 90° angle of 2 tubes of equal or different diameters.
UNIVERSAL THREAD (NPT/BSP)
Part Number: AI5511X-XX
Push-In: 4, 5, 6, 8, 10, 12, 14mm
Threads: M5, M6, 1/8, 1/4, 3/8, 1/2”
Compact push-in at 90° with a universal (NPT/BSP) male thread. Parallel option.
FEMALE ELBOW BSPP
Part Number: AI55106-XX
Plug-In: 4, 6, 8mm
Threads: 1/8, 1/4, 3/8”
Connection of tubing at a 90° angle with a BSPP female thread.
PLUG-IN ELBOW
Part Number: AI55140-XX
Push-In: 6mm
Compact push-in connection of tubing at 90° with a short male thread.
PLUG-IN 45° ELBOW
Part Number: AI55160-XX
Push-In: 8, 10mm
Threads: 1/8, 1/4, 3/8, 1/2”
Connection at a 90° angle of 2 tubes of equal or different diameters.
45° MALE ELBOW
Part Number: AI5517X-XX
Push-In: 4, 5, 6, 8, 10, 12, 14mm
Threads: 1/8, 1/4, 3/8, 1/2”
Compact push-in connection of tubing at 90° with a short male thread.
PUSH-IN EQUAL & UNEQUAL ELBOW
Part Number: LF3102-XX-XX
Push-In: 4, 6, 8, 10, 12mm
Connection at a 90° angle of 2 tubes of equal or different diameters.
Download catalogue
MALE STUD ELBOW, BSPT
Part Number: LF3109-XX-XX
Push-In: 4, 6, 8, 10, 12, 14mm
Threads: 1/8, 1/4, 3/8, 1/2”
Push-in connection of tubing at 90° with a male thread.
MALE STUD ELBOW BSPP
Part Number: LF3199-XX-XX
Push-In: 4, 6, 8, 10, 12mm
Threads: M5, 1/8, 1/4, 3/8, 1/2”
Push-in connection of tubing at 90° to thread and reduced height dimensions.
FEMALE STUD ELBOW, BSPP
Part Number: LF3192-XX-XX
Push-In: 4, 6, 8, 10mm
Threads: 1/8, 1/4, 3/8, 1/2”
Connection of tubing at a 90° angle with a female thread.
PLUG-IN EQUAL/UNEQUAL ELBOW
Part Number: LF3182-XX-XX
Push-In: 4, 6, 8, 10, 12mm
Plug-In: 4, 6, 8, 10mm
Connection of tubing at a 90° angle to a push-in fitting or cartridge.
OSCILLATING ELBOW BSPT
Part Number: LF3259-XX-XX
Push-In: 4, 6, 8, 10, 12mm
Threads: 1/8, 1/4, 3/8”
Swivel elbow designed to facilitate continuous rotary motion.
45° MALE ELBOW, BSPT
Part Number: LF3129-XX-XX
Push-In: 4, 6, 8, 10, 12mm
Threads: 1/8, 1/4, 3/8, 1/2”
Connection of tubing at a 45° angle to a threaded port.
45° PLUG-IN EQUAL ELBOW
Part Number: LF3180-XX-XX
Push-In: 4, 6, 8, 10, 12mm
Plug-In: 4, 6, 8, 10mm
Tube connection at a 45° angle with another push-in fitting or cartridge.
TEE’s
EQUAL TEE
Part Number: AI55230-XX
Push-In: 6, 8mm
Push-in connection of 3 tubes at a 90° angle.
UNIVERSAL (NPT/BSP) RUN TEE
Part Number: AI5522X-XX
Push-In: 4, 6, 8, 10, 12mm
Threads: M5, 1/8, 1/4, 3/8, 1/2”
2 tubes at 90° to a universal (NPT/BSP) thread. Parallel option available.
UNI SHORT & PARALLEL BRANCH TEE
Part Number: AI5521X-XX
Push-In: 4, 6, 8, 10, 12mm
Threads: M5, 1/8, 1/4, 3/8, 1/2”
2 in-line tubes to a universal (NPT/BSP) thread. Parallel option available.
PLUG-IN RUN TEE
Part Number: AI55235-XX
Push-In: 4, 6, 8, 10mm
Push-in connection of 2 tubes at a 90° angle to a plug-in stem.
PLUG-IN BRANCH TEE
Part Number: AI55240-XX
Push-In: 4, 6, 8, 10mm
Push-in in-line connection of 2 tubes to a plug-in stem.

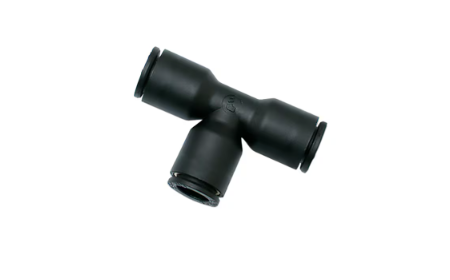

PUSH-IN BRANCH TEE
Part Number: LF3104-XX-XX
Push-In: 4, 6, 8, 10, 12, 14mm
Push-in connection of 3 tubes at a 90° angle.
RUN TEE, BSPT
Part Number: LF3103-XX-XX
Push-In: 4, 6, 8, 10, 12mm
Threads: 1/8, 1/4, 3/8, 1/2”
In line connection of 2 tubes at a 90° angle with a male thread.
BRANCH TEE, BSPP
Part Number: LF3103-XX-XX
Push-In: 4, 6, 8, 12mm
Threads: M5, 1/8, 1/4, 3/8, 1/2”
Connection of 2 in-line tubes to a BSPP thread.
BRANCH TEE, BSPT
Part Number: LF3108-XX-XX
Push-In: 4, 6, 8, 10, 12mm
Threads: 1/8, 1/4, 3/8, 1/2”
Push-in connection of 2 tubes at a 90° angle to a threaded port.
PLUG-IN TEE WITH TAILPIECE
Part Number: LF3188-XX-XX
Push-In: 4, 6, 8, 10, 12mm
Plug-In: 8, 10mm
Push-in in-line connection of 2 tubes to a plug-in stem.
PLUG-IN RUN TEE WITH TAILPIECE
Part Number: LF3183-XX-XX
Push-In: 4, 6, 8, 10, 12mm
Plug-In: 8, 10, 12mm
Push-in connection of 2 tubes at a 90° angle to a plug-in stem.
Y PIECE
PUSH-IN EQUAL Y PIECE
Part Number: AI55310-XX
Push-In: 4, 6, 8, 10, 12mm
In line push-in Y connection of 3 of equal or different diameters.
Download catalogue

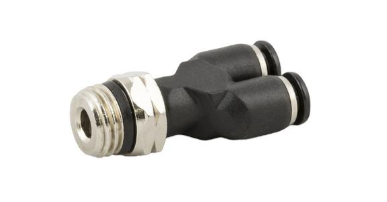

PUSH-IN TO UNIVERSAL (NPT/BSP)
Part Number: AI5532X-XX
Push-In: 4, 6, 8, 10, 12mm
Threads: 1/8, 1/4, 3/8, 1/2”
Connection of 2 tubes to a universal (NPT/BSP) thread. Parallel option.
MULTIPLE PUSH-IN Y PIECE
Part Number: AI55330-XX
Push-In: 6, 8mm
Push-in connection of 4 tubes from one inlet.
PUSH-IN EQUAL & UNEQUAL Y PIECE
Part Number: LF3144-XX-XX
Push-In: 4, 6, 8, 10, 12mm
In line push-in connection of 3 tubes of equal or different diameters.
Download catalogue
Y PIECE WITH MALE BSPP
Part Number: LF3148-XX-XX
Push-In: 4, 6, 8, 10mm
Threads: 1/8, 1/4, 3/8, 1/2”
In-line connection of 2 tubes to a threaded port.
MULTIPLE UNEQUAL Y PIECE
Part Number: LF3144-XX-XX
Push-In: 4, 6, 8mm
In-line push-in connection of 4 tubes from one inlet.
Download catalogue
EQUAL AND UNEQUAL SINGLE Y PIECE
Part Number: LF3142-04-00
Push-In: 4mm
In-Line plug-in connection of 2 tubes, with tailpiece.
Download catalogue
PLUG-IN MULTIPLE Y PIECE
Part Number: LF3143-XX-XX
Push-In: 4, 6, 8mm
In-Line plug-in connection of 4 tubes, with tailpiece.
Download catalogue
connectors
EQUAL AND UNEQUAL CONNECTOR
Part Number: AI55040-XX
Push-In: 4, 5, 6, 8, 10, 12, 14mm
In line equal or unequal connection of 2 tubes.
EQUAL AND UNEQUAL CONNECTOR
Part Number: LF3106-XX-XX
Push-In: 4, 6, 8, 10, 12, 14mm
In line equal or unequal connection of 2 tubes.
DOUBLE MALE STEM CONNECTOR
Part Number: LF3120-10-00
Push-In: 10mm
Connection of 2 push-to-connect fittings.
Download catalogue
BULKHEADS
EQUAL BULKHEAD ELBOW
Part Number: LF3144-XX-XX
Push-In: 4, 8, 10, 12mm
Connection of 2 tubes through a panel, with optimised sealing between the fitting and the panel.
Download catalogue
BULKHEAD CONNECTOR
Part Number: LF3116-XX-XX
Push-In: 4, 6, 8, 10, 12mm
Connects 2 tubes through a panel, providing optimum sealing between the fitting and the panel.
Download catalogue
MIXED BULKHEAD CONNECTOR
Part Number: LF3116-XX-XX
Push-In: 4, 6, 8, 10, 12mm
Threads: 1/8, 1/4, 3/8, 1/2”
Connection of 2 tubes through a panel, with optimised sealing between the fitting and the panel.
REDUCERs & Increasers
PUSH-IN REDUCER
Part Number: AI55700-XX
Push-In: 8, 10, 12mm
In line connection of tubing of smaller diameter with another push-in fitting.
PUSH-IN REDUCER
Part Number: LF3116-XX-XX
Push-In: 4, 6, 8, 10, 12mm
In line connection of tubing of smaller diameter with another push-in fitting.
PUSH-IN INCREASER
Part Number: LF3116-XX-XX
Push-In: 4, 6, 8, 10, 12mm
In line connection of tubing of larger diameter with another push-in fitting.
Multi-Connector
MULTIPLE TEE WITH FIXING HOLES
Part Number: LF3304-08-06
Push-In: 6, 8mm
Air distribution using 3 tubes at a 90° angle to the supply line. Can be fixed in position using 2 screws.
MODULAR PLUG-IN CONNECTORS
Part Number: LF3300-04-00
Push-In: 4mm
Modular connection of 2 nests of tubes. Combined male and female modules limit the number of components.
MALE SCREW BODY
Part Number: LF3320-06-00-0X
Push-In: 6mm
Outlets: 4 or 7
Male connector for 2 tube nests. Suitable for bulkhead assembly.
CONNECTOR FOR THREE TUBES
Part Number: LF3381-0X-00
Push-In: 4, 8mm
Connection of 3 tubes by mounting the fitting on a DIN profile or Omega rail.
BANJO
SINGLE BANJO BODIES
Part Number: LF3538-08-XX
Push-In: 8mm
Thread: 1/8, 1/4”
Body designed for connection of tubing at a 90° angle to a threaded port.
Please contact us for more information
DOUBLE BANJO BODIES
Part Number: LF3539-06-13
Push-In: 6mm
Thread: 1/4”
Body designed for connection of 2 tubes at a 90° angle to a threaded port.
Please contact us for more information
SINGLE BANJO BOLTS BSPP
Part Number: LF3527-00-13
Thread: 1/4”
Bolt suitable for 3538, 3539, 3549 banjo bodies.
Please contact us for more information
HIGH BOLT FOR DOUBLE BANJO BSPP
Part Number: LF3528-00-XX
Thread: 1/8, 1/4”
Stacking banjo bolt for 2 body high modules 3538, 3539, 3549 bodies.
Please contact us for more information
accessories

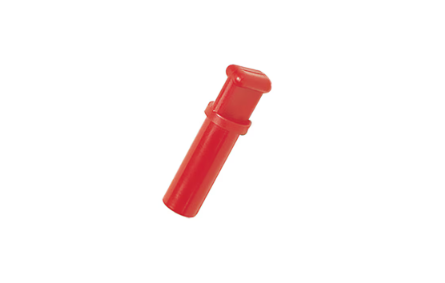

BLANKING PLUGS
Part Number: LF3126-XX-XX
Plug-In: 4, 6, 8, 10, 12mm
Designed to plug and block unused push-in fittings.
Download catalogue
THREAD TAPE
Part Number: Thread Tape
Tape Size: 12mm
Designed to help seal a fitting once threaded in.
Please contact us for more information
FEMALE PLUG, INSTANT CONNECTION
Part Number: LF3151-XX or AI55620-XX
Push-In: 4, 6, 8, 10, 12, 14mm
Close or protect pneumatic circuits during production changeovers.
Download catalogue
