FITTINGS & TUBING - push-in FITTINGS - Stainless Steel
Should you require further information or cannot locate a product/service please do not hesitate to make contact - sales@macvalves.co.nz
Click here to download the full Fittings & Tubing PDF catalogue or see below for individual product information. Scroll through the listed products below for individual product information.
Straights
MALE STRAIGHT BSPP/BSPT
Part Number: AI600X0-0X
Temperature Range: -15°C - 190°C
Push-In: 6, 8, 10mm
Thread: 1/8, 1/4”
In line connection of tube to a thread. AISI 316L Stainless steel components and FKM seals. BSPP or BSPT available.
MALE STRAIGHT BSPP/BSPT
Part Number: LF380X-XX-XX
Temperature Range: -25°C - 150°C
Push-In: 8mm, 12mm
Thread: 1/4, 1/2”
In line connection of tube to a thread. AISI 316L Stainless steel components and FKM seals. BSPP or BSPT available.
ELBOWs
MALE ELBOW BSPT OR BSPP
Part Number: AI60110-0X
Temperature Range: -15°C - 190°C
Working Pressure: up to 20 bar
Push-In: 4, 6, 8, 10mm
Thread: 1/8, 1/4”
BSPT or BSPP available.
METRIC PUSH-IN ELBOW
Part Number: AI60130-0X
Temperature Range: -15°C - 190°C
Push-In: 4, 6, 8, 10mm
90° connection of equal push-in tubing. AISI 316L Stainless steel components and FKM seals.
TEE’s

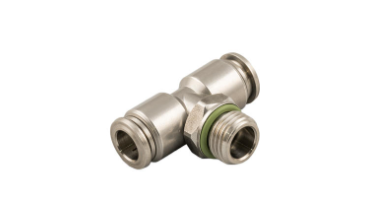

BRANCH TEE BSPP
Part Number: AI60215-0X
Temperature Range: -15°C - 190°C
Push-In: 4, 6mm
Thread: 1/8, 1/4”
In line connection of tubing to a 90° threaded port. AISI 316L Stainless steel components and FKM seals.
PUSH-IN TEE METRIC + IMPERIAL
Part Number: AI61230-0X
Temperature Range: -15°C - 190°C
Push-In: 4, 6, 8, 10mm
In line connection of tubing to a 90° port. AISI 316L Stainless steel components and FKM seals. Imperial options available.
CONNECTORs + Bulkheads
EQUAL CONNECTOR/UNION
Part Number: AI60040-0X
Temperature Range: -15°C - 190°C
Push-In: 4, 6mm
In line connection of tubing. AISI 316L Stainless steel components and FKM seals.
EQUAL CONNECTOR/UNION
Part Number: LF3806-08-00
Temperature Range: -25°C - 150°C
Push-In: 8mm
In line connection of tubing. AISI 316L Stainless steel components and FKM seals.
EQUAL BULKHEAD
Part Number: AI60050-0X
Temperature Range: -15°C - 190°C
Push-In: 6, 12mm
In line connection of tubing. AISI 316L Stainless steel components and FKM seals.
REDUCERs + Standpipes
PLUG-IN REDUCER
Part Number: LF3866-10-12
Temperature Range: -25°C - 150°C
Push-In: 10-12mm
In line connection of tubing of a smaller diameter with another push-in fitting. AISI 316L Stainless steel components and FKM seals.
MALE STUD STANDPIPE BSPT OR NPT
Part Number: LF3821-08-1X
Temperature Range: -25°C - 150°C
Push-In: 8mm
Thread: 1/8, 1/4”
Connection of tube to threaded port. AISI 316L Stainless steel components and FKM seals.
