FITTINGS & TUBING - TECHNICAL TUBING & HOSE - RECOIL & PVC HOSE

Click here to download the full Fittings & Tubing PDF catalogue or see below for individual product information.

Should you require further information or cannot locate a product/service please do not hesitate to make contact: sales@macvalves.co.nz

PUSH LOCK HOSE

PUSH LOCK HOSE

Part Number: TBPLX/X
Temperature Range: -20 to 100 °C / -4 to 212 °F (compressed air)
Working Pressure: 232 psi / 16 bar
O.D Sizes: 1/4, 3/8, 1/2, 3/4”

Download catalogue

FLEXEEL REINFORCED HOSE

Part Number: PFEXXX0-T
Temperature Range: -40 to 73 °C / -40 to 165 °F
Working Pressure: 232 psi / 16 bar
O.D Sizes: 1/4, 3/8, 1/2, 3/4”

Download catalogue

Push-Lock Hose adaptors

FEMALE PUSH LOCK HOSE ADAPTOR

Part Number: AI13800-0X
Tailpiece: 1/4, 3/8, 1/2, 5/8, 3/4”
Thread: 1/8, 1/4, 3/8, 1/2, 3/4”
Quick connection of self-fastening hose to a female thread.

Download catalogue

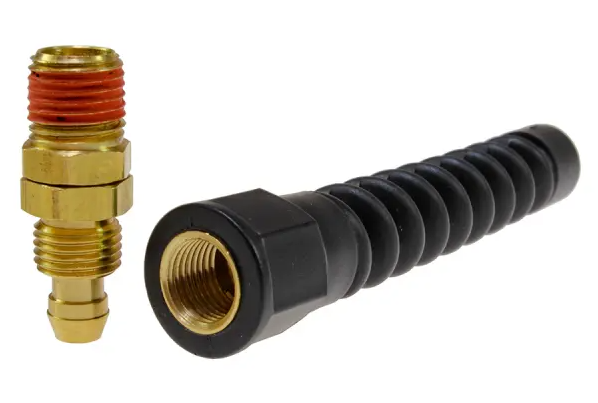

COILHOSE - FLEXCOIL & FLEXEEL

Part Number: PSM0X0XSR,
PURSC14K (strain relief only)
Thread: 1/4” BSP or 3/8” NPT
Reusable swivel fitting with strain relief.

Contact us for more information

MALE PUSH LOCK HOSE ADAPTOR

Part Number: AI13810-0X
Tailpiece: 1/4, 3/8, 1/2, 5/8, 3/4”
Thread: 1/8, 1/4, 3/8, 1/2, 3/4”
Quick connection of self-fastening hose to a male thread.

Download catalogue

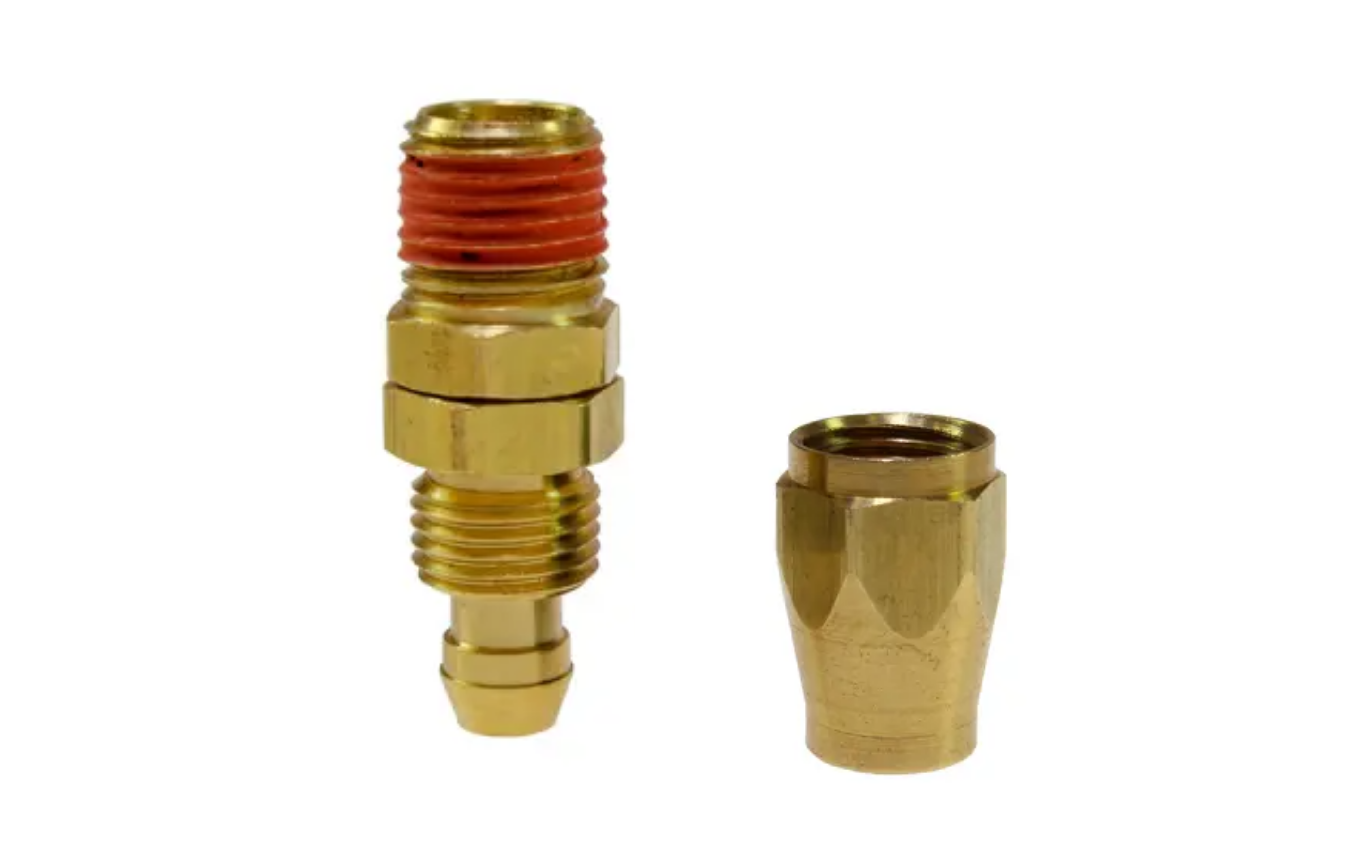

COILHOSE - FLEXCOIL & FLEXEEL

Part Number: PSM0X0X,
PN0X (nut only)
Thread: 1/4” BSP or 3/8” NPT
Reusable swivel fitting with nut.

Contact us for more information

NIPPLE FOR PUSH LOCK HOSE

Part Number: AI13820-0X
Thread: 1/8, 1/4, 3/8, 1/2, 3/4”
A threaded nipple to connect female fittings onto both ends.


Download catalogue

HOSETAIL ADAPTOR FOR TUBING

Part Number: BF20X0X0X
Tailpiece: 1/4, 3/8, 1/2, 5/8, 3/4”
Thread: 1/8, 1/4, 3/8, 1/2, 3/4, 1”
Quick connection of a hose to a male port.

Contact us for more information
