3-WAY Valves
Click here to download the full MAC Valves Solenoid PDF catalogue. Scroll through the listed products below for individual product information or click the series link you would like to view:
SMALL 3-WAY VALVES
All MAC small 3-Way valves are direct operated poppet valves. The four series of solenoid valves that fall in this section (34, 35, 100, 200) all operate on the same design principal: a push type solenoid acting on a balanced poppet. The fifth series (1100) is a range of mechanically operated valves using the 100 series body assemblies.
33 SERIES VALVE
Part Number: 33A-BAB-RFAA-0BA
Function: 3/2 N/C
Port Size: M3
Flow: 0.082Cv
Pressure Range: Vac. to 120PSI
34 SERIES VALVE
Part Number: 34C-XXX-GDXX-1XX
Function: 3/2 NO-NC, 2/2 NO-NC
Port Size: M5
Flow: 0.12Cv
Pressure Range: Vac. to 120PSI
35 SERIES VALVE
Part Number: 35A-XXX-DXXX-XXX
Function: 3/2 NO-NC, 2/2 NO-NC
Port Size: 1/8”
Flow: 0.17Cv
Pressure Range: Vac. to 120PSI

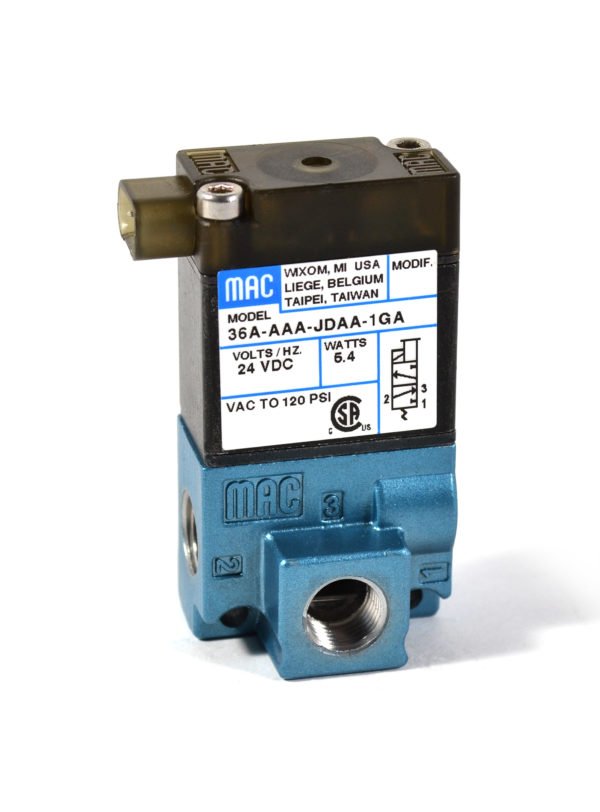

36 SERIES VALVE
Part Number: 36A-XXX-JDXX-1XX
Function: 3/2
Port Size: 1/8”
Flow: 0.3Cv
Pressure Range: Vac. to 120PSI

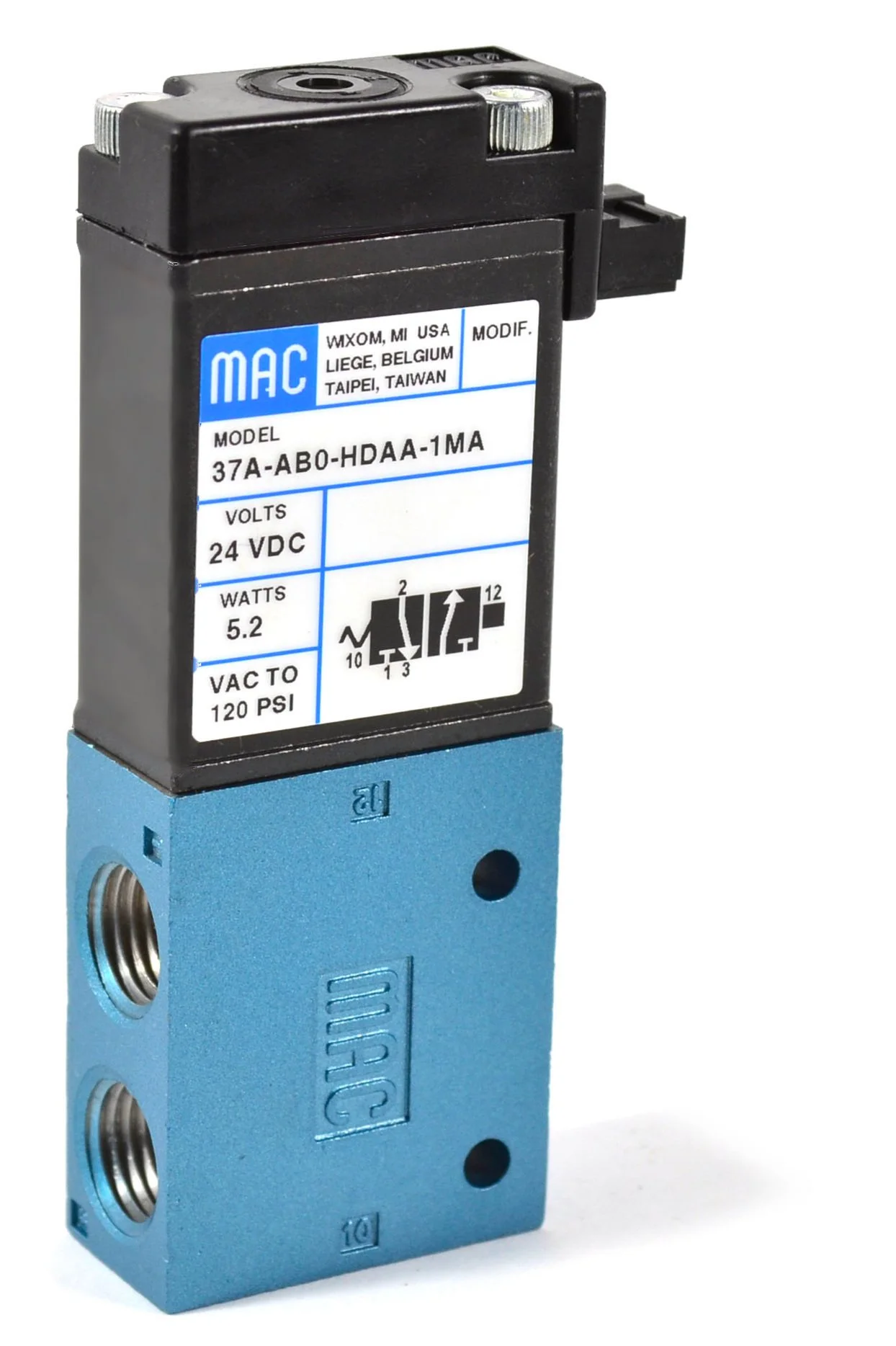

37 SERIES VALVE
Part Number: 37A-AC0-HDAA-1BA
Function: 3/2
Port Size: 1/8”
Flow: 0.5Cv
Pressure Range: Vac. to 120PSI
100 SERIES VALVE
Part Number: 11XB-XXXXX
Function: 3/2 NO-NC, 2/2 NO-NC
Port Size: 1/8" - 1/4"
Flow: 0.18Cv
Pressure Range: Vac. to 150PSI
200 SERIES VALVE
Part Number: 2XXB-XXXXX
Function: 3/2 NO-NC, 2/2 NO-NC
Port Size: 1/8" - 1/4"
Flow: 0.5Cv
Pressure Range: Vac. to 150PSI

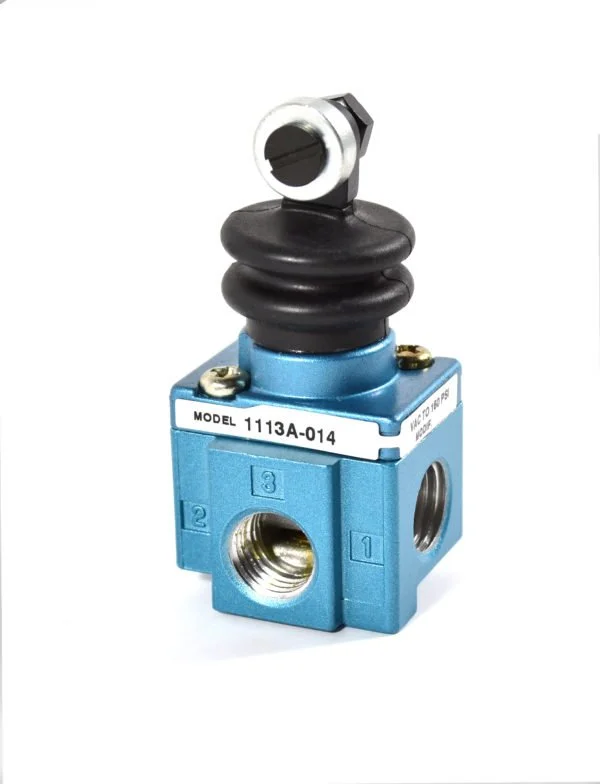

1100 SERIES VALVE
Part Number: 11XXA-XXX
Function: 3/2 NO-NC, 2/2 NO-NC
Port Size: 1/8" - 1/4"
Flow: 0.18Cv
Pressure Range: Vac. to 150PSI
Large 3-WAY VALVES
All MAC large solenoid 3 way valves are solenoid pilot operated. The pilot of these valves is a balanced poppet, the main valve a balanced spool. Additionally, the pilot for the 52 series is a 4 way pilot design that maximises the shifting forces in both directions. The valves can be divided into two groups:
- 52, 55, 56 series
- 57, 58 & 59 series
52 SERIES VALVE
Part Number: 52A-XX-X0X-DX-DXXX-XXX
Function: 3/2 NO-NC, 2/2 NO-NC
Port Size: 1/8" - 1/4"
Flow: 1.5Cv
Pressure Range: Internal 20 to 120PSI
Ext. Pilot: 120PSI
53 SERIES VALVE
Part Number: 53A-XXX-XM-DXXX-XXX
Function: 3/2 NO-NC
Port Size: 1/8" - 1/4"
Flow: 2.0Cv
Pressure Range: Internal 20-120PSI
Ext. Pilot: to 120PSI

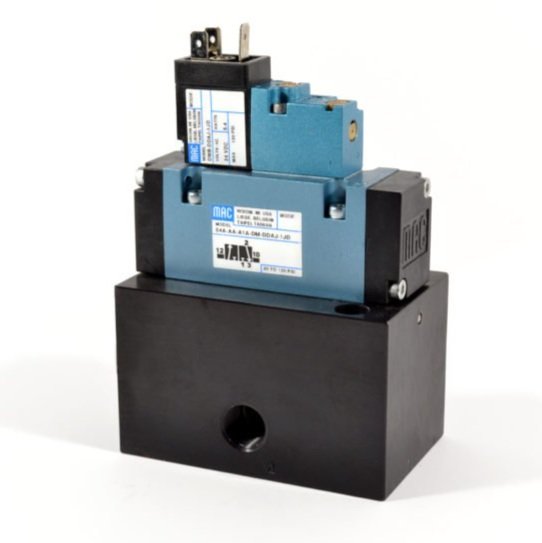

54 SERIES VALVE
Part Number: 54A-AA-000-DM-DDAJ-1JM
Function: 3/2 NO-NC
Port Size: 3/8" - 3/4"
Flow: 4.1 Cv
Pressure Range: Ext. to 120PSI, Int. 20 to 120PSI
55 SERIES VALVE
Part Number: 55B-14-PI-501JD
Function: 3/2 N/O-N/C, 2/2 N/O-N/C
Port Size: 1/4" - 3/8"
Flow: 2.2 Cv
Pressure Range: Ext. to 150PSI, Int. 30 to 150PSI
56 SERIES VALVE
Part Number: 56C-16-392JD
Function: 3/2 N/O-N/C, 2/2 N/O-N/C
Port Size: 3/8” - 1/2” - 3/4”
Flow: 5.7 Cv
Pressure Range: Ext. to 150PSI, Int. 25 to 150PSI
57 SERIES VALVE
Part Number: 57D-16-252JC
Function: 3/2 N/O-N/C, 2/2 N/O-N/C
Port Size: 1/2” - 3/4” - 1”
Flow: 17.4 Cv
Pressure Range: Ext. to 150PSI, Int. 25 to 150PSI
58 SERIES VALVE
Part Number: 58D-16-501JC
Function: 3/2 N/O-N/C, 2/2 N/O-N/C
Port Size: 1" - 1 1/4” - 1 1/2"
Flow: 26.0 Cv
Pressure Range: Ext. to 150PSI, Int. 25 to 150PSI
59 SERIES VALVE
Part Number: 59B-16-112JC
Function: 3/2 N/O-N/C, 2/2 N/O-N/C
Port Size: 2" - 2 1/2"
Flow: 60.0 Cv
Pressure Range: Ext. to 150PSI, Int. 25 to 150PSI
67 SERIES VALVE
Part Number: 67A-A1-DAA-DM-DDAJ-1JD
Function: 3/2 N/O-N/C, 2/2 N/O-N/C
Port Size: 3/4" - 1"
Flow: 20.0 Cv
Pressure Range: Ext. to 150PSI, Int. 20 to 150PSI
68 SERIES VALVE
Part Number: 68A-A1-EAA-JDAA-1BA
Function: 3/2 N/O-N/C, 2/2 N/O-N/C
Port Size: 1 1/4" - 1 1/2"
Flow: 31.0 Cv
Pressure Range: Ext. to 150PSI, Int. 20 to 150PSI
69 SERIES VALVE
Part Number: 69A-A1A-EAB-JDA0-2JD
Function: 3/2 N/O-N/C, 2/2 N/O-N/C
Port Size: 1 1/2" - 2" - 2 1/2"
Flow: 60.0 Cv
Pressure Range: Ext. to 120PSI, Int. 20 to 120PSI
