4 & 5-WAY VALVES
Small 4-Way & Large 4 & 5-Way: A balanced poppet pilot valve for high flow, precise repeatability and consistent operation. Click here to download the full MAC Valves Solenoid PDF catalogue. Scroll through the listed products below for individual product information or click the series link you would like to view:
SMALL 4-WAY VALVES

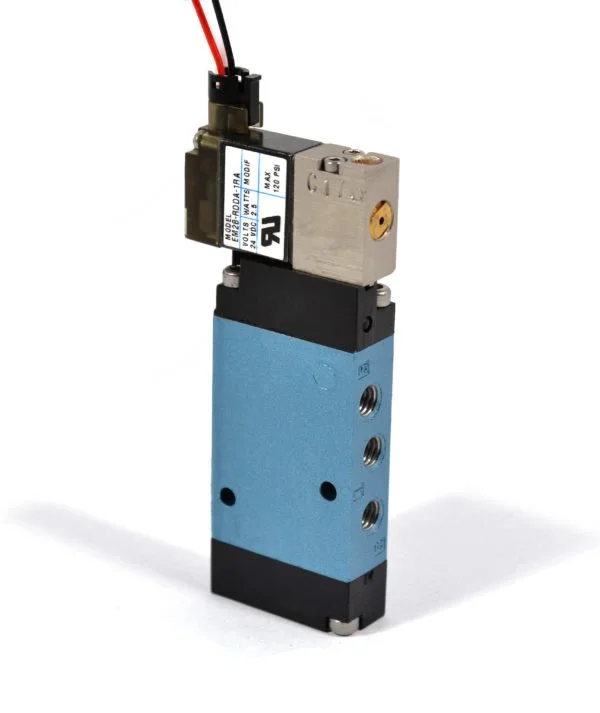

24 SERIES VALVE
Part Number: 24A-XX-XXX-EM2-RDXX-1XX
Function: 2/2, 5/3
Port Size: M5
Flow: 0.25 / 250 Cv
Pressure Range: 2 Pos. Internal Pilot
Individual Mounting: Inline
44 SERIES VALVE
Part Number: 44C-XXX-GDXX-1XX
Function: 5/2
Port Size: M5
Flow: 0.1Cv
Pressure Range: Vac. to 120PSI
Individual Mounting: Inline
45 SERIES VALVE
Part Number: 45A-XXX-DXXX-XXX
Function: 4/2
Port Size: 1/8”
Flow: 0.15Cv
Pressure Range: Vac. to 120PSI
Individual Mounting: Inline
46 SERIES VALVE
Part Number: 46A-XXX-JDXX-1XX
Function: 4/2
Port Size: 1/8”
Flow: 0.30Cv
Pressure Range: Vac. to 120PSI
Individual Mounting: Inline
47 SERIES VALVE
Part Number: 47A-XXX-HDAX-1XX
Function: 4/2
Port Size: 1/8" - 1/4"
Flow: 0.5Cv
Pressure Range: Vac. to 120PSI
Individual Mounting: Inline
48 SERIES VALVE
Part Number: 48B-AMA-XXX-GDFX-1XX
Function: 5/2, 5/3
Port Size: 1/8"
Flow: 1.1Cv
Pressure Range: Vac. to 120PSI
Mounting: Sub-base Non-Plug-In

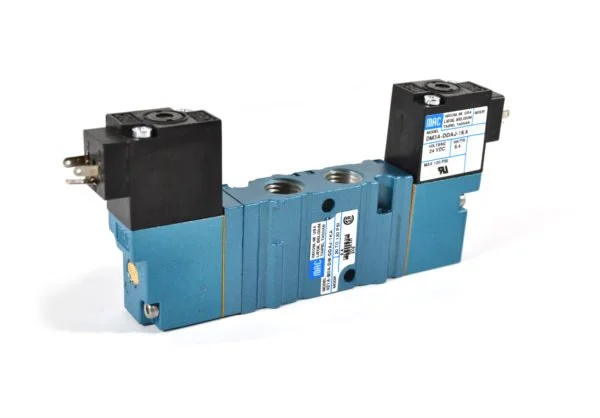

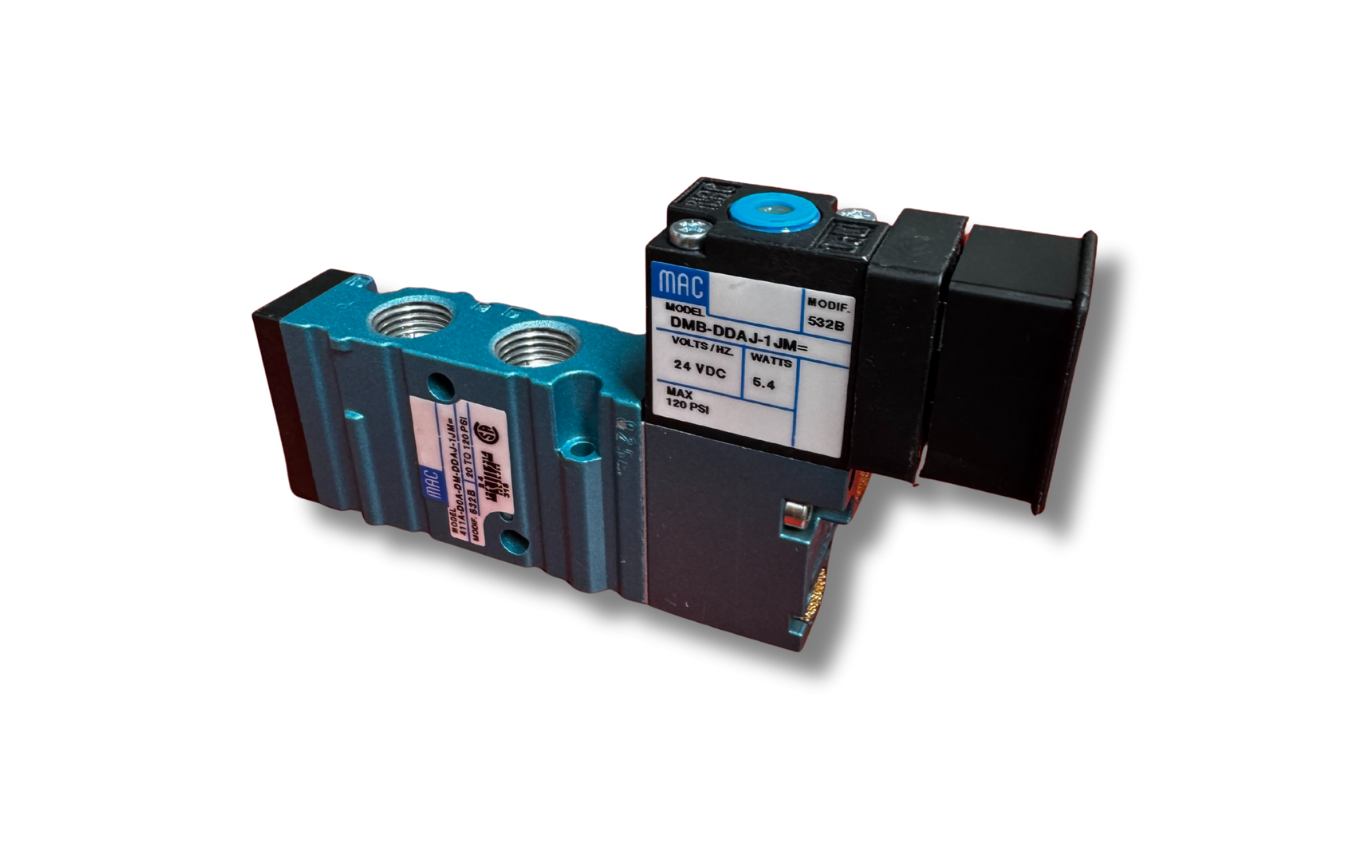

400 SERIES VALVE
Part Number: 4XXA-X0A-DX-DXXX-XXX
Function: 5/2, 5/3
Port Size: 1/8" - 1/4"
Flow: 1.0Cv
Pressure Range: See catalogue
Individual Mounting: Inline
700 SERIES VALVE
Part Number: 7XXC-1X-PI-XXXXX
Function: 5/2, 5/3
Port Size: 1/8" - 1/4"
Flow: 0.8Cv
Pressure Range: See catalogue
Individual Mounting: Inline

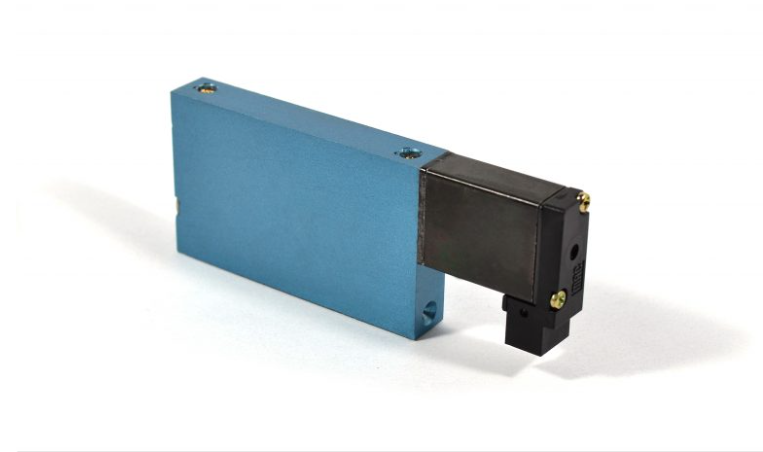

42 SERIES VALVE
Part Number: 42B-XXX-XXX-GXXX-XXX
Function: 5/2, 5/3
Port Size: M5, M7
Flow: 0.4Cv
Pressure Range: Vac. to 120PSI
Individual Mounting: Sub-base
800 SERIES VALVE
Part Number: 8XXC-PX-XXXXX-1XX
Function: 5/2, 5/3
Port Size: 1/4"
Flow: 1.4Cv
Pressure Range: See catalogue
Individual Mounting: Inline
900 SERIES VALVE
Part Number: 9XXB-PM-XXXXX
Function: 4/2
Port Size: 1/8" - 1/4"
Flow: 1.2Cv
Pressure Range: 25-150PSI,
Individual Mounting: Inline
Large 4 & 5-WAY VALVEs
82 SERIES VALVE
Part Number: 82A-AX-XXX-TM-DXXX-1XX
Function: 4/2, 4/3
Port Size: 1/8" - 1/4" - 3/8"
Flow: 1.35 Cv
Pressure Range: -
Individual Mounting: Sub Base ‘Plug-In/Non Plug-In’

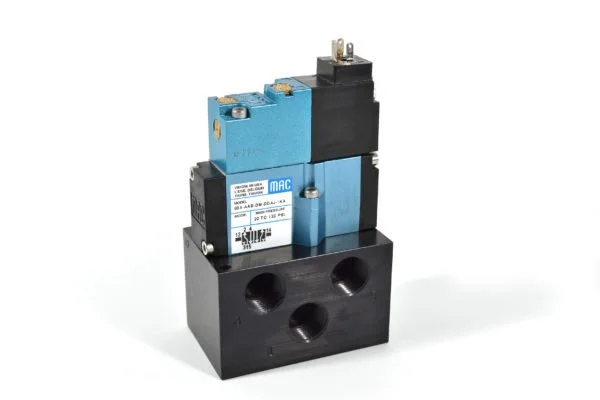

83 SERIES VALVE
Part Number: 83A-XXX-DM-DXXX-1XX
Function: 4/2, 4/3
Port Size: 1/4" - 3/8"
Flow: 1.5 Cv
Pressure Range: Vac. to 120PSI
Individual Mounting: Sub Base ‘Plug-In’/’Non Plug-In’
92 SERIES VALVE
Part Number: 92B-XXX-XXX-DM-DXXX-XXX
Function: 4/2, 4/3
Port Size: 1/8" - 3/8"
Flow: 1.2 Cv
Pressure Range: See catalogue.
Individual Mounting: Sub Base ‘Plug-In’/’Non Plug-In’
93 SERIES VALVE
Part Number: 93A-XXX-XXX-DX-DXXX-1XX
Function: 5/2, 5/3
Port Size: 3/8" - 1/2"
Flow: 3.8 Cv
Pressure Range: Internal: 20-120PSI, External: Vac. to 120PSI
Individual Mounting: Inline
1300 SERIES VALVE
Part Number: 130XG-XXXXX-X
Function: 4/2, 4/3
Port Size: 3/4”, 1”, 1-1/4”, 1-1/2" BSP
Flow: 15.9 Cv
Pressure Range: See catalogue.
Individual Mounting: Inline
1800 SERIES VALVE
Part Number: 180XXX-XXX-0XXX
Function: 5/2
Port Size: 1/4"
Flow: 1.4 Cv
Pressure Range: Vac. to 200PSI
Individual Mounting: Inline
2700 SERIES VALVE
Part Number: 270XG-X
Function: 4/2, 4/3
Port Size: 3/4”, 1”, 1-1/4”, 1-1/2" BSP
Flow: 15.9 Cv
Pressure Range: Vac. to 150PSI
Individual Mounting: Sub-Base
6200 SERIES VALVE
Part Number: 62XXC-000-PM-XXXXX
Function: 4/2, 4/3
Port Size: 1/4" - 3/8"
Flow: 1.6 Cv
Pressure Range: Vac. to 150PSI
Individual Mounting: Sub-Base
Download catalogue
6300 SERIES VALVE
Part Number: 63XXC-XXX-PX-XXXXX
Function: 4/2, 4/3
Port Size: 3/4" - 1/2"
Flow: 3.0 Cv
Pressure Range: See catalogue.
Individual Mounting: Sub-Base
6500 SERIES VALVE
Part Number: 65XXC-XXX-PX-XXXXX
Function: 4/2, 4/3
Port Size: 3/8" - 3/4"
Flow: 5.1 Cv
Pressure Range: See catalogue.
Mounting: Sub-Base Non ‘Plug-In’
6600 SERIES VALVE
Part Number: 66XXA-XXX-PM-XXXXX
Function: 4/2, 4/3
Port Size: 3/4" - 1"
Flow: 9.6 Cv
Pressure Range: See catalogue.
Mounting: Sub-Base Non ‘Plug-In’
