ISO, PPC & BULLET VALVES
Click here to download the full MAC Valves Solenoid PDF catalogue. Scroll through the listed products below for individual product information or click the series link you would like to view:
ISO 1 SERIES VALVE
Fastest available response time with patented MACSOLENOID®. No-stick operation is ensured by wiping action of unique MAC spool/bore combination. Balanced poppet pilot valve for high flow, precise repeatability, and consistent operation.
3-WAY PILOT
Part Number: MV-A1C-AXXX-PM-XXXXX
Function: 5/2, 5/3
Flow: 1.6 Cv
Individual Mounting: Coverless Analog Base Mount

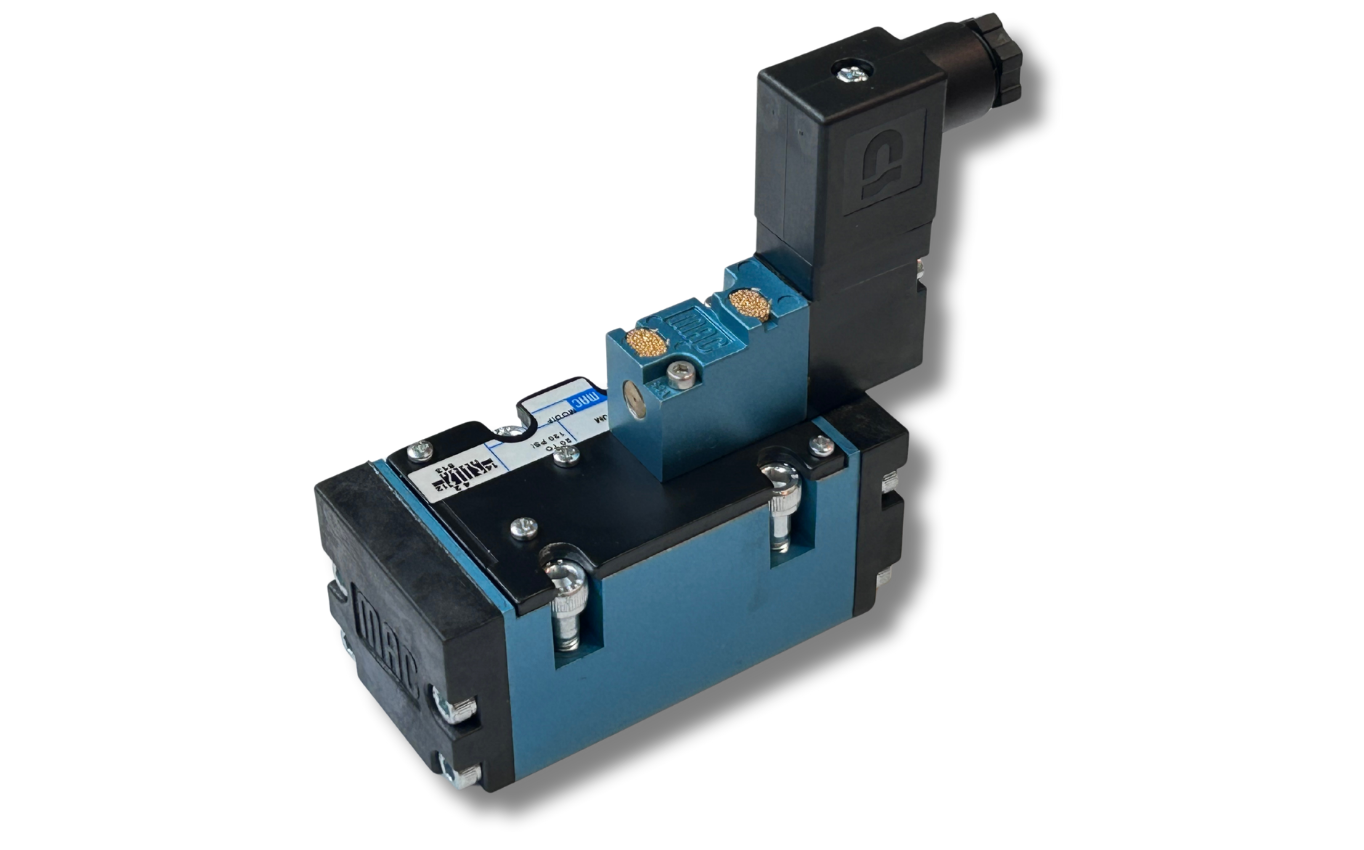

4-WAY PILOT
Part Number: MV-A1C-AXXX-PM-XXXXX
Function: 5/2, 5/3
Flow: 1.8 Cv
Individual Mounting: Valve only - No base non ‘Plug-In’

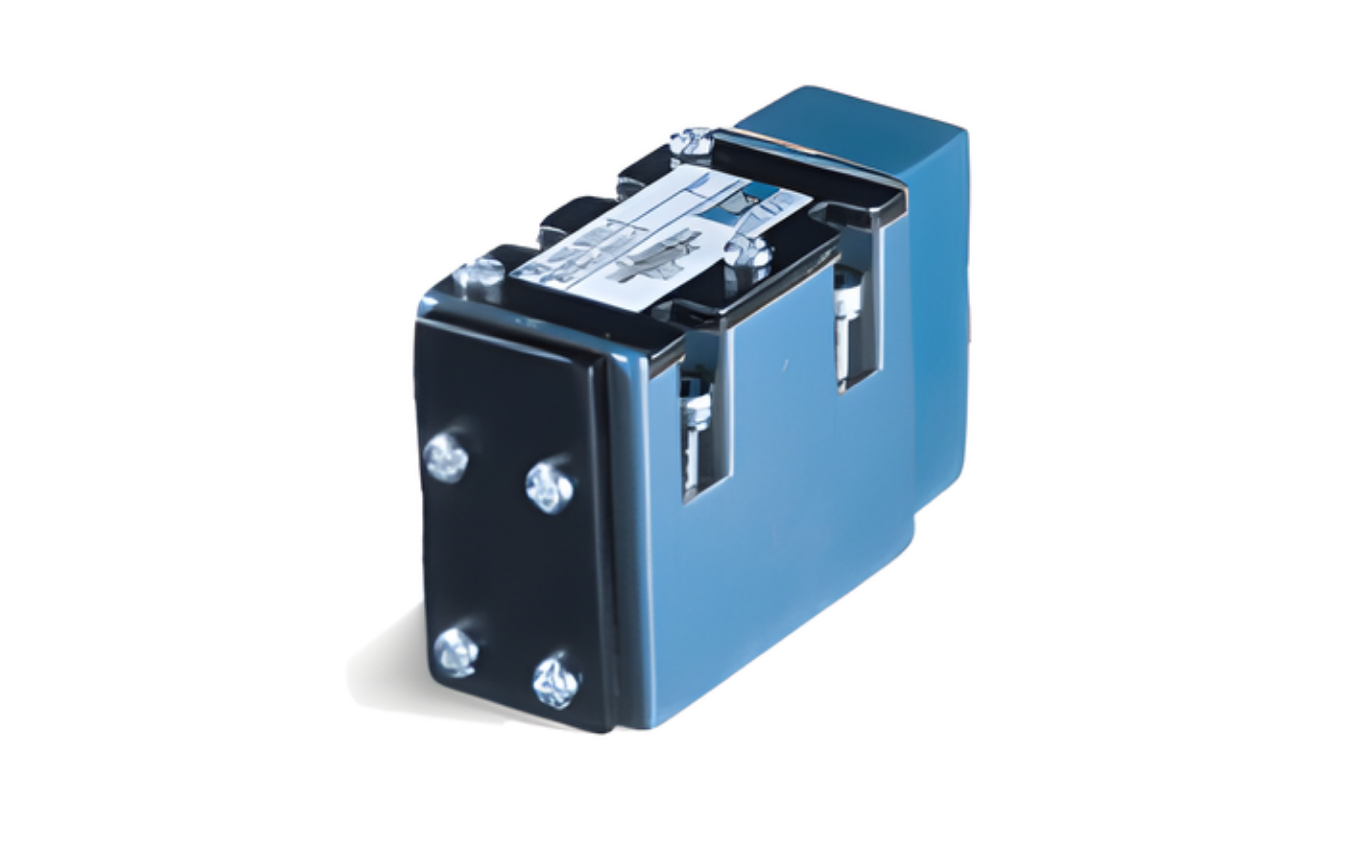

REMOTE AIR
Part Number: MV-A1C-BXXX
Function: 5/2, 5/3
Flow: 1.6 Cv
Individual Mounting: Valve only - No base non ‘Plug-In’
ISO 1 BASES
Part Number: MB-A1C-1X1
Function: Non-plug-in or Plug-in
Port Size: 1/4, 3/8”
Individual Mounting: Valve only - No base non ‘Plug-In’
ISO 2 SERIES VALVE
3-WAY PILOT
Part Number: MV-A2B-AXXX-PM-XXXXX
Function: 5/2, 5/3
Flow: 3.0 Cv
Individual Mounting: Coverless Analog Base Mount
4-WAY PILOT
Part Number: MV-A2B-AXXX-PM-XXXXX
Function: 5/2, 5/3
Flow: 3.0 Cv
Individual Mounting: Valve only - No base non ‘Plug-In’
ISO 2 BASES
Part Number: MB-A2B-1XX
Function: 5/2, 5/3
Port Sizes: 3/8, 1/2”
Individual Mounting: Valve only - No base non ‘Plug-In’

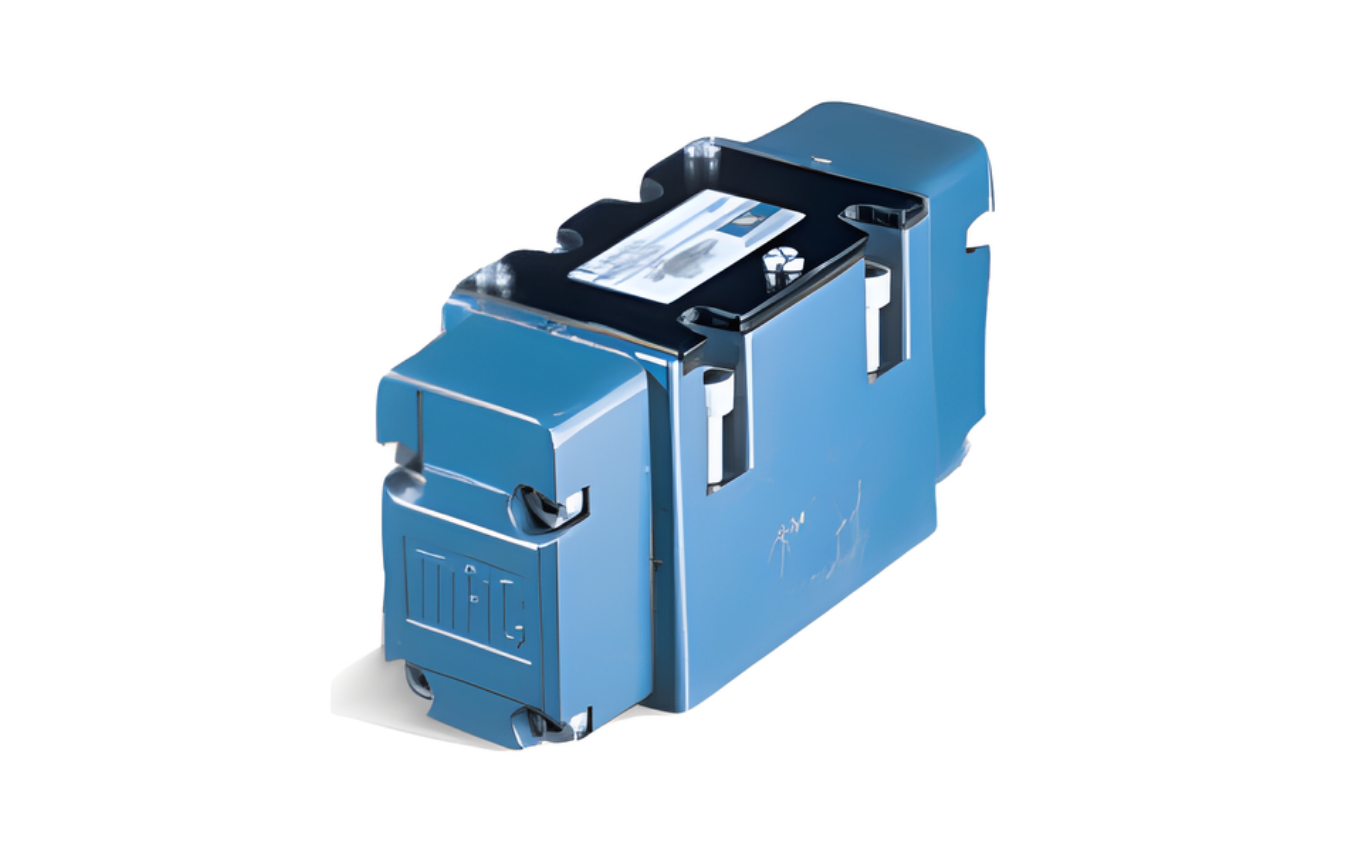

REMOTE AIR
Part Number: MV-A2B-BXXX
Function: 5/2, 5/3
Flow: 3.0 Cv
Individual Mounting: Valve only - No base non ‘Plug-In’
ISO 3 SERIES VALVE
3-WAY PILOT
Part Number: MV-A3B-AXXX-PM-XXXXX
Function: 5/2, 5/3
Flow: 1.8 Cv
Individual Mounting: Coverless Analog Base Mount
4-WAY PILOT
Part Number: MV-A3B-AXXX-PM-XXXXX
Function: 5/2, 5/3
Flow: 6.1Cv
Individual Mounting: Valve only - No base non ‘Plug-In’

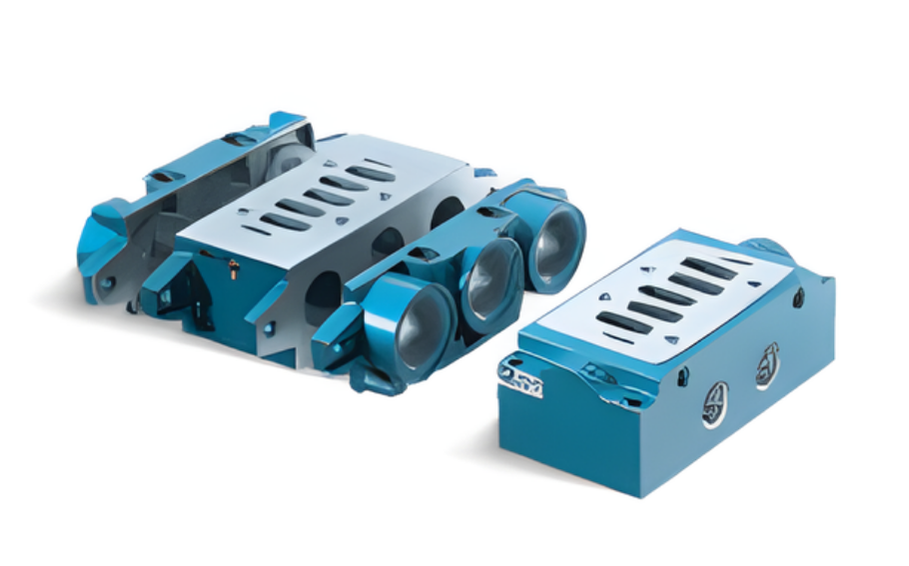

ISO 3 BASES
Part Number: MB-A3B-1XX
Function: 5/2, 5/3
Port Sizes: 1/2, 3/4”
Individual Mounting: Valve only - No base non ‘Plug-In’
REMOTE AIR
Part Number: MV-A3B-BXXX
Function: 5/2, 5/3
Flow: 3.0 Cv
Individual Mounting: Valve only - No base non ‘Plug-In’
PPC VALVES
The MAC Proportional Pressure Controller, (PPC) is an innovative product which converts an electrical signal into a proportional pneumatic output. The PPC is unlike conventional I/P or V/P transducers. It offers much more in terms of performance, features, and reliability.
PROPORTIONAL PRESSURE CONTROL
Part Number: PPC5C-AXA-XGXX-XXX-XX
Function: 1/8"
Flow: 0.07/70, 0.09/90 (Cv/NI/min)
Pressure Range: Contact MVP
Individual Mounting: Covered Analog
MAC BULLET VALVE®
CLICK HERE TO CONTACT US FOR ALL BULLET VALVE ENQUIRIES
The Bullet Valve® (BV) represents yet another evolution in air valve technology from MAC. The Bullet Valve utilizes "lifting" solenoid technology. The MAC "lifting" configuration is unique, however, in that the valve maintains a balanced design - a signature feature of a MAC valve - shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations. 2-way and 3-way configurations of the BV cartridge (9mm, 10mm, 14mm, and 21mm) are available.
9MM BULLET VALVE
Stock Part Number: BV209, BV309A
Function: 2/2, 3/2 NC, Universal
Port Size: 1/8"
Flow: Up to 0.07Cv
Manifold Mounting: Cartridge
10MM BULLET VALVE
Stock Part Number: BV310A
Function: 3/2 NC, Universal
Flow: Up to 0.09 Cv
Pressure Range: Vac. to 120PSI
Manifold Mounting: Cartridge

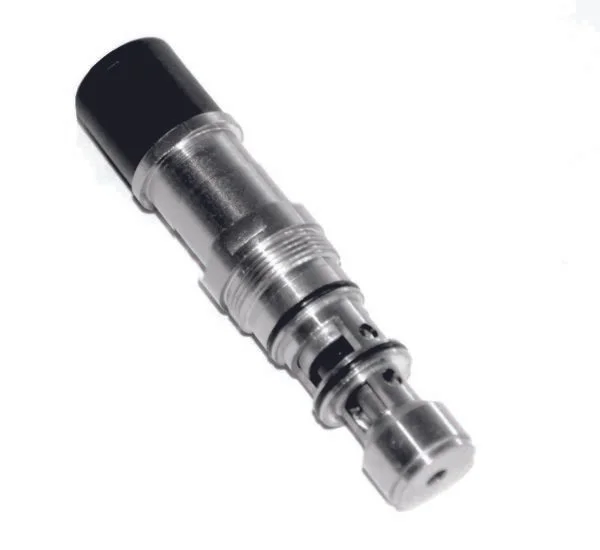

14MM BULLET VALVE
Stock Part Number: BV314A
Function: 2/2, 3/2 NC, Universal
Flow: Up to 0.24 Cv
Pressure Range: Vac. to 120PSI
Manifold Mounting: Cartridge
21MM BULLET VALVE
Stock Part Number: BV321A
Function: 2/2, 3/2 NC, Universal
Flow: Up to 0.6 Cv
Pressure Range: Vac. to 120PSI
Manifold Mounting: Cartridge
LIQUID BULLET VALVE
Stock Part Number: LBV210A, LBV310A
Function: 2/2, 3/2
Flow: Up to 0.08 Cv
Pressure Range: Vac. to 120PSI
Manifold Mounting: Cartridge
