LIQUID & BULLET VALVES

Please contact us for all your bullet/liquid valve applications and enquiries.

Click here to download the full MAC Valves Solenoid PDF catalogue. Scroll through the listed products below for individual product information or click the series link you would like to view:

MAC BULLET VALVE®

The Bullet Valve® (BV) represents yet another evolution in air valve technology from MAC. The Bullet Valve utilizes "lifting" solenoid technology. The MAC "lifting" configuration is unique, however, in that the valve maintains a balanced design - a signature feature of a MAC valve - shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations. 2-way and 3-way configurations of the BV cartridge (9mm, 10mm, 14mm, and 21mm) are available.

9MM BULLET VALVE

Part Number: BV209, BV309A
Function: 2/2, 3/2 NC, Universal
Port Size: 1/8"
Flow: Up to 0.07Cv
Manifold Mounting: Cartridge

Download catalogue

10MM BULLET VALVE

Part Number: BV310A
Function: 3/2 NC, Universal
Flow: Up to 0.09 Cv
Pressure Range: Vac. to 120PSI
Manifold Mounting: Cartridge

Download catalogue

14MM BULLET VALVE

Part Number: BV314A
Function: 2/2, 3/2 NC, Universal
Flow: Up to 0.24 Cv
Pressure Range: Vac. to 120PSI
Manifold Mounting: Cartridge

Download catalogue

21MM BULLET VALVE

Part Number: BV321A
Function: 2/2, 3/2 NC, Universal
Flow: Up to 0.6 Cv
Pressure Range: Vac. to 120PSI
Manifold Mounting: Cartridge

Download catalogue

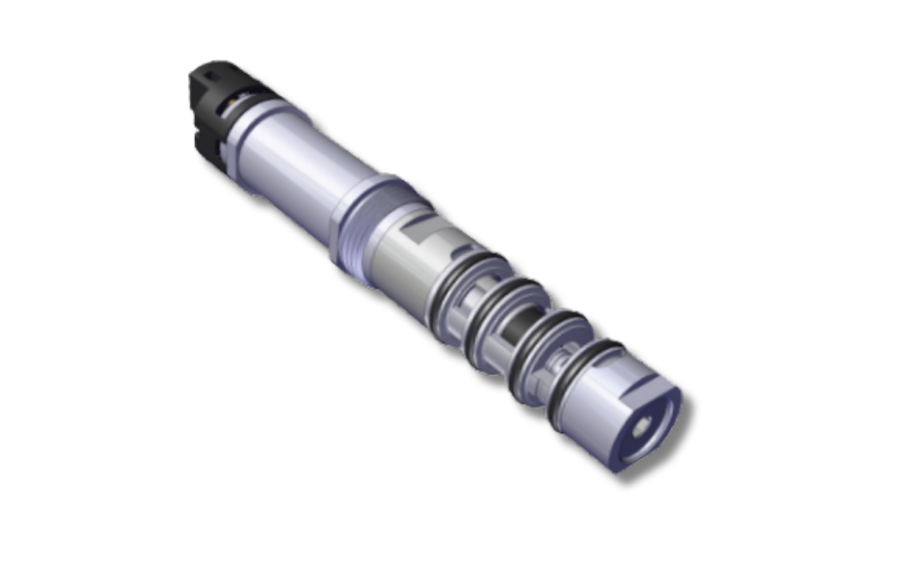

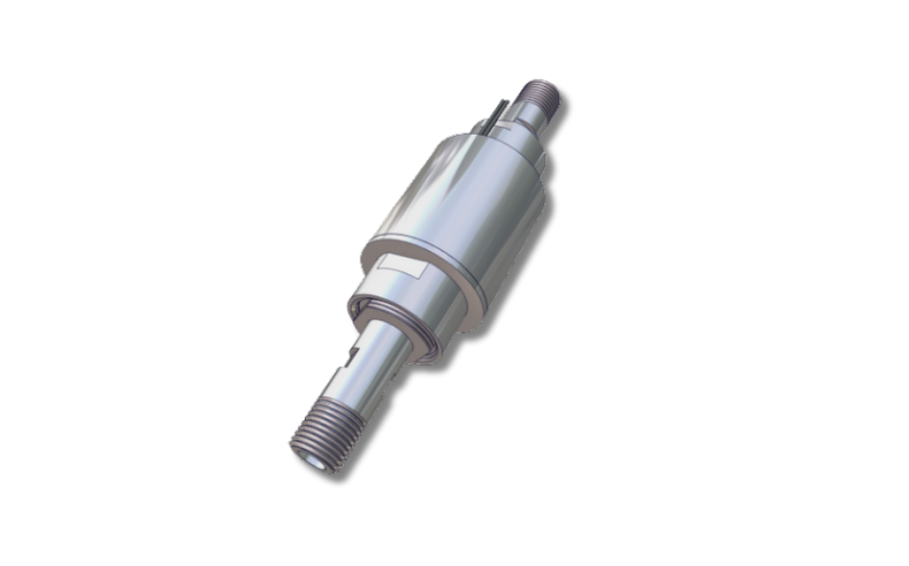

MAC liquid VALVE

These valves also work great in pneumatic applications that require leak tight performance. The MAC Liquid Valve line of products is designed to last longer and perform stronger in the toughest applications. With fewer wear points than traditional valve technology, these valves are designed to last!
