pROPORTIOANL PRESSURE CONTROLLER

The MAC Proportional Pressure Controller, (PPC) is an innovative product which converts an electrical signal into a proportional pneumatic output. The PPC is unlike conventional I/P or V/P transducers. It offers much more in terms of performance, features, and reliability.

Click here to download the full MAC Valves Solenoid PDF catalogue. Scroll through the listed products below for individual product information or click the series link you would like to view:

PPC VALVES

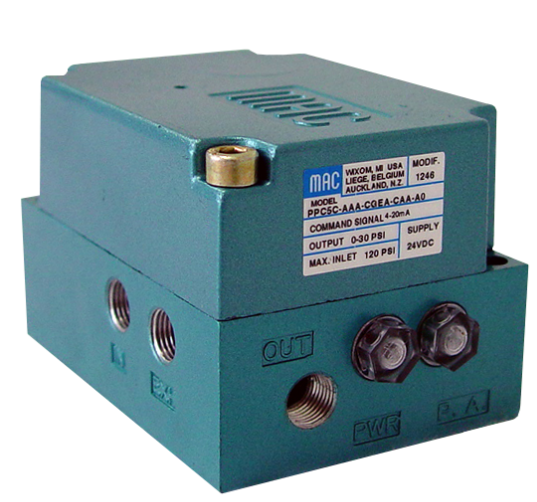

PPC5C

Part Number: PPC5C-AXA-XGXX-XXX-XX
Port Size: 1/8”
Flow: 0.07/70 (Cv/NI/min)
Individual Mounting: Covered analog

Download catalogue

PPC34B

Part Number: PPC34B-ADB-0AGA-DA0
Port Size: 1/8”
Flow: 0.07/70 (Cv/NI/min)
Individual Mounting: Coverless analog

Download catalogue

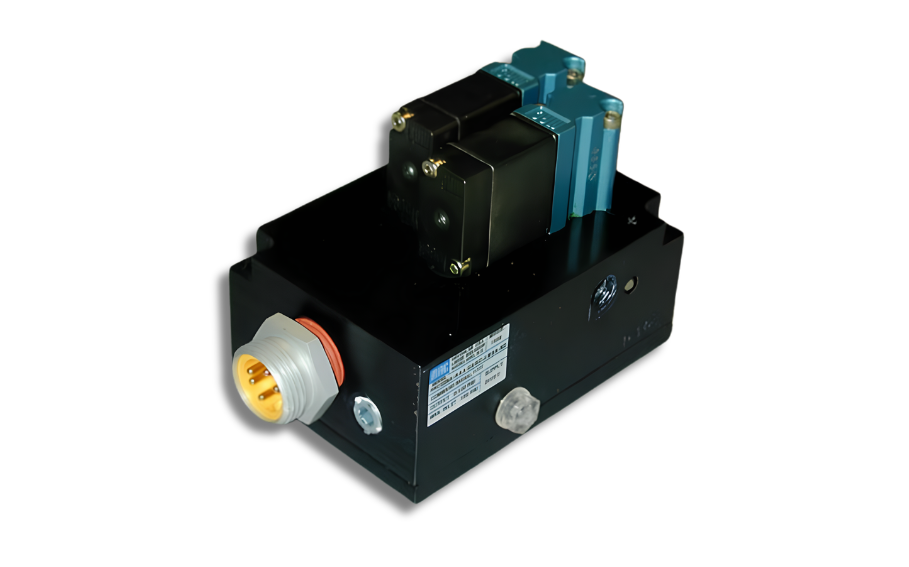

PPC36A

Part Number: PPC36A-AAX-0AGX-XX
Port Size: 1/8” - 1/4”
Flow: 0.25/250 (Cv/NI/min)
Individual Mounting: Coverless analog

Download catalogue

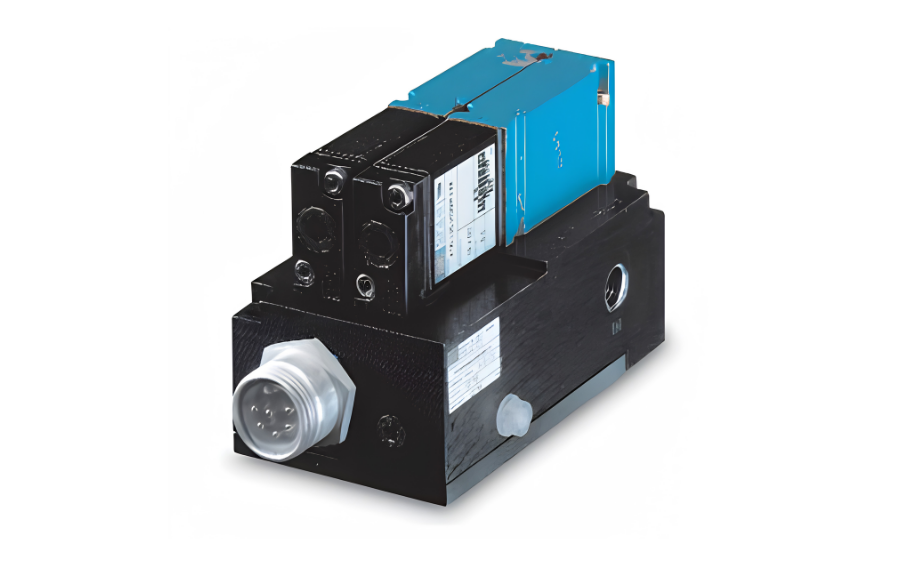

PPC47A

Part Number: PPC047A-AAX-0XGE-BXX
Port Size: 1/4”
Flow: 0.72/720 (Cv/NI/min)
Individual Mounting: Covered analog

Download catalogue

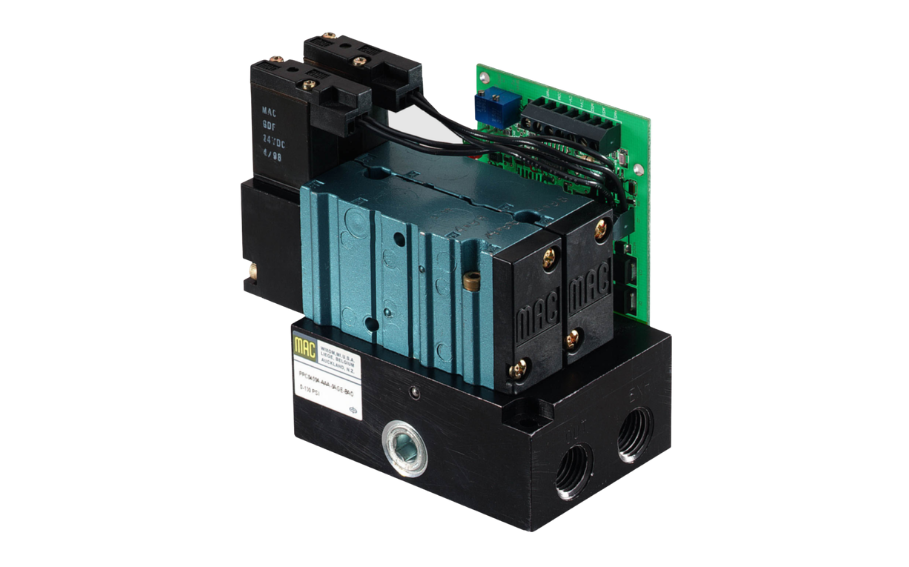

PPC400A

Part Number: PPC400A-AAB-0AGE-DC0
Port Size: 1/4”
Flow: 1.3/1300 (Cv/NI/min)
Individual Mounting: Coverless analog

Download catalogue
