pulse VALVES
Click here to download the MAC Pulse Valve PDF catalogue. Scroll through the listed products below for individual product information or click the series link you would like to view:
Pulse VALVES
The MAC patented Pulse Valve series was developed to replace current diaphragm style technology and create a more robust and reliable valve solution in industrial applications. MAC Pulse Valves are ideal to replace existing diaphragm technology in applications such as reverse jet bag houses and dust collectors, pneumatic conveying and bulk material handling.
PV03
Part Number: PV03B-XXX-41P-DXXX-XXX
Port Sizes: 3/4”, 1” base
Main pressure range: 0 to 8 bar
Pilot pressure range: 2.8 to 8 bar
Temperature range: 0°C to 40°C
Flow (at 6 bar, ΔP=1bar): 24 000 Nl/min (24 Cv)

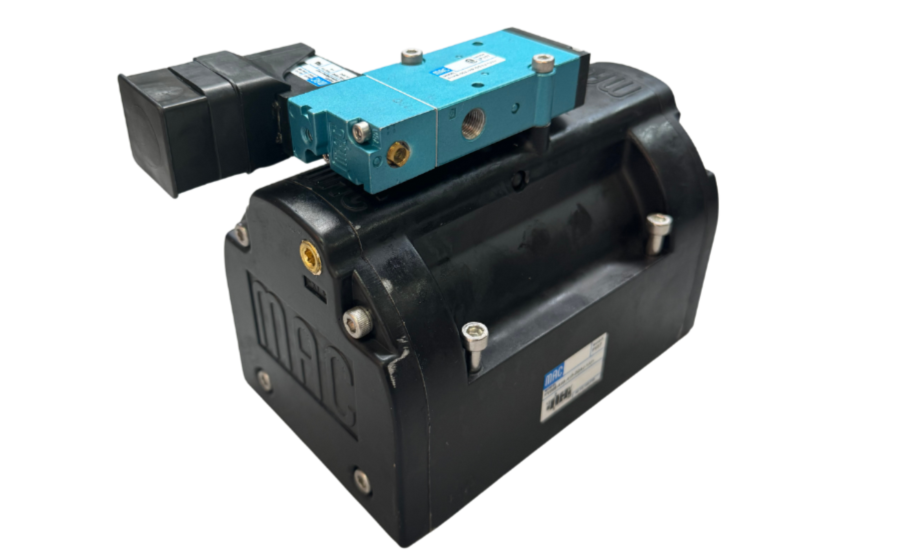

PV06
Part Number: PV06B-XXX-41P-DXXX-XXX
Port Sizes: 1 1/2” base
Main pressure range: 0 to 8 bar
Pilot pressure range: 2.8 to 8 bar
Temperature range: 0°C to 40°C
Flow (at 6 bar, ΔP=1bar): 53,200 Nl/min (53.2 Cv)

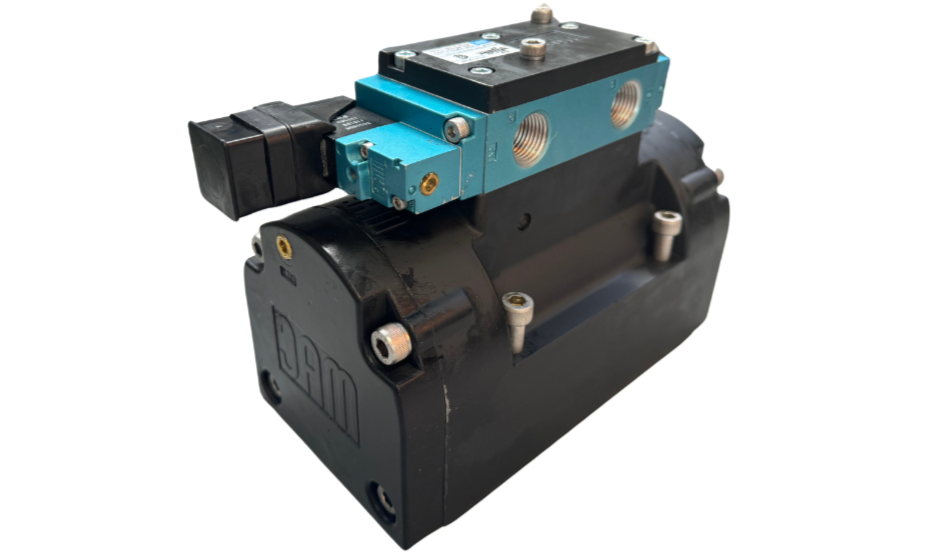

PV09
Part Number: PV09B-XXX-41P-DXXX-XXX
Port Sizes: 2”, 2 1/2” base
Main pressure range: 0 to 8 bar
Pilot pressure range: 2.8 to 8 bar
Temperature range: 0°C to 40°C
Flow (at 6 bar, ΔP=1bar): 100 000 Nl/min (100 Cv)
