AIR PREPARATION - FILTER REGULATORS

UNREGULATED PRESSURE IS ONE OF THE MOST COMMON CAUSES OF PNEUMATIC SYSTEM FAILURE — AND ONE OF THE MOST PREVENTABLE.

Precise pressure regulation at the point of use ensures your downstream equipment receives a stable, consistent supply regardless of fluctuations in your line pressure.

We stock a comprehensive range of pressure regulators — covering general purpose, precision, high pressure, high flow, and specialty applications including water, CO2, and nitrogen. From compact miniature regulators for space-constrained installations through to high flow modular units for demanding industrial environments, the range spans a wide variety of port sizes, pressure ratings, and construction materials to suit your specific system requirements.

Not sure which regulator suits your application? Get in touch with our team at sales@macvalves.co.nz — we're here to help you find the right solution.

KNOCKS

SHAKO

MASTER PNEUMATIC

knocks filter regulators

FILTER REGULATOR BG0

Filter Element: 5 Micron
Port Sizes: 1/4”
Bowl: PC
Max Supply Pressure: 12 bar
Temperature Range: -10˚C - +50˚C
Drain: Semi-auto
Built-in gauge.

Download catalogue

FILTER REGULATOR BG1, 2, 4

Filter Element: 5 Micron
Port Sizes: 1/4, 1/2, 3/4, 1”
Bowl: PC + PA bowl guard or metal
Max Supply Pressure: 16 bar
Temperature Range: -10˚C - +50˚C
Drain: Semi-auto or automatic
Available with or without gauge.

Download catalogue

sHAKO filter regulators

COMPOSITE/ALUMINIUM

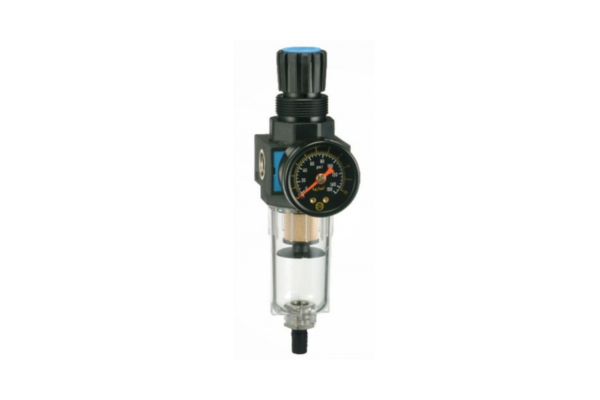

Part Number: FR500A -Miniature
Function: Remove water and particle, accurate and easy pressure setting.
Port Size: 1/8 & 1/4" Mini
Pressure Range: 0.5 - 10kg f/cm2
Filtration: 5μm, 40μm Optional

Download catalogue

COMPOSITE/ALUMINIUM

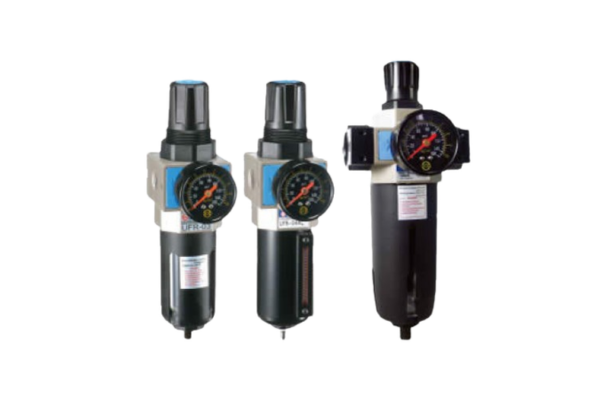

Part Number: UFR - Standard & Large
Function: Remove water and particle, accurate and easy pressure setting.
Port Size: 1/4 to 1" Standard & Large
Pressure Range: 0.5 - 10kg f/cm2
Filtration: 5μm, 40μm Optional

Download catalogue

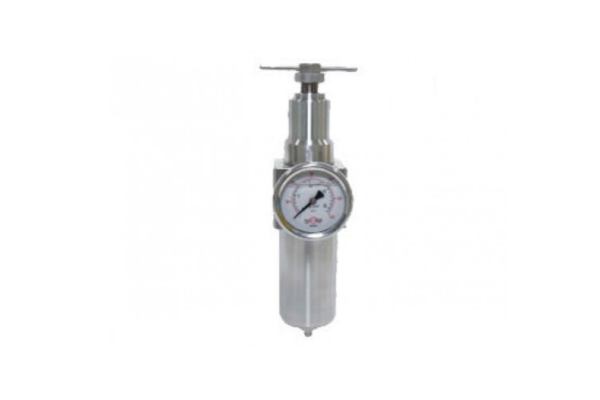

STAINLESS STEEL

Part Number: USFR-0XX
Function: High-pressure, corrosion and chemical resistance.
Port Size: 1/4" Mini
Pressure Range: 0.5 - 20kg f/cm2 Mini, 0.5 - 30kg f/cm2 Standard/Large
Filtration: 5μm

Download catalogue

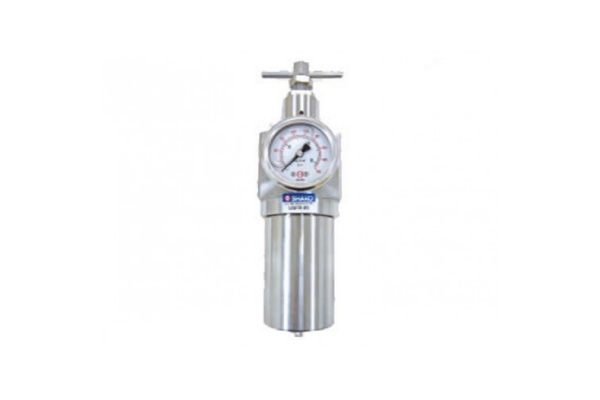

STAINLESS STEEL

Part Number: USFR-0XX
Function: High-pressure, corrosion and chemical resistance.
Port Size: 1/4 to 1/2" Standard, 3/4 & 1" Large
Pressure Range: 0.5 - 20kg f/cm2 Mini, 0.5 - 30kg f/cm2 Standard/Large
Filtration: 5μm

Download catalogue
