AIR PREPARATION - FILTERS
CLEAN, DRY, CONTAMINANT-FREE AIR — ESSENTIAL FOR RELIABLE PNEUMATIC PERFORMANCE.
We stock a comprehensive range of compressed air filters — From standard micron-rated elements for water and particulate removal through to multi-stage clean air packages for the most demanding applications, the range is built to meet your specific filtration requirements across port sizes, flow rates, and operating pressures.
Not sure which filter is right for your system? Get in touch with our team at sales@macvalves.co.nz — we're here to help you find the right solution.
KNOCKS FILTERS
FILTER BG0 - MINI
Filter Element: 5 Micron
Port Sizes: 1/4”
Bowl: PC
Supply Pressure: 1.5 - 12 bar
Temperature Range: -10˚C - +50˚C
Drain: Semi-auto or automatic
PREFILTER BG0 - MINI
Filter Element: 0.3 Micron
Port Sizes: 1/4'“
Bowl: PC
Supply Pressure: 1.5 - 12 bar
Temperature Range: -10˚C - +50˚C
Drain: Semi-auto
Download catalogue
FILTER BG1, 2, 4
Filter Element: 5 Micron
Port Sizes: 1/4, 1/2, 3/4, 1”
Bowl: PC + PA guard or Metal
Supply Pressure: 1.5 - 16 bar
Temperature Range: -10˚C - +50˚C
Drain: Semi-auto
PREFILTER BG1, 2, 4
Filter Element: 0.3 Micron
Port Sizes: 1/4, 1/2, 3/4, 1”
Bowl: PC + PA guard
Supply Pressure: 1.5 - 16 bar
Temperature Range: -10˚C - +50˚C
Drain: Semi-auto
FINEFILTER BG1, 2, 4
Filter Element: 0.01 Micron
Port Sizes: 1/4, 1/2, 3/4, 1”
Bowl: PC + PA guard or Metal
Supply Pressure: 1.5 - 16 bar
Temperature Range: -10˚C - +50˚C
Drain: Semi-auto or automatic
ACTIVATED CARBON FILTER BG1, 2, 4
Port Sizes: 1/4, 1/2, 3/4, 1”
Bowl: PC + PA guard or Metal
Supply Pressure: 0 - 16 bar
Temperature Range: -10˚C - +50˚C
Drain: Semi-auto
SHAKO filters
COMPOSITE/ALUMINIUM
Part Number: F200A - Miniature
Function: Removes water and particles effectively
Port size: 1/8 & 1/4"
Filtration: 5μm, 40μm Optional

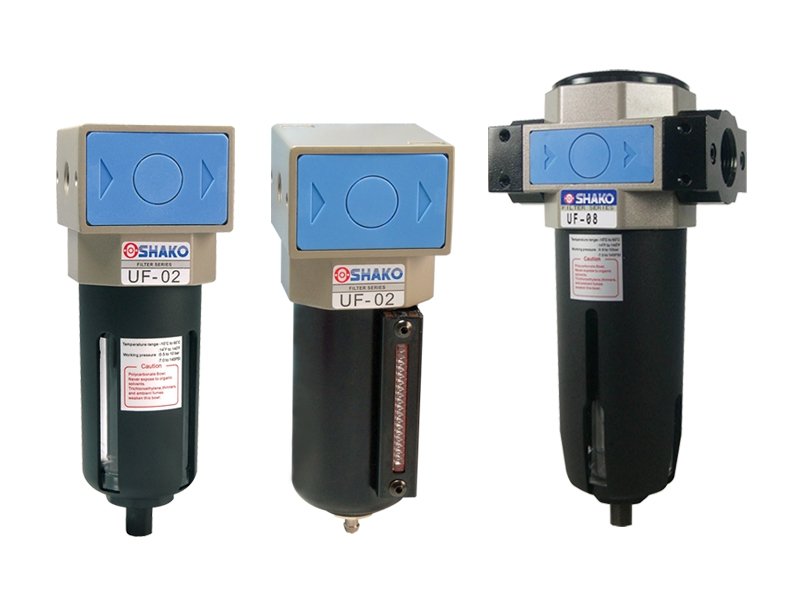

COMPOSITE/ALUMINIUM
Part Number: UF-0XX - Standard & Large
Function: Removes water and particles effectively
Port size: 1/4 to 1"
Filtration: 5μm, 40μm Optional

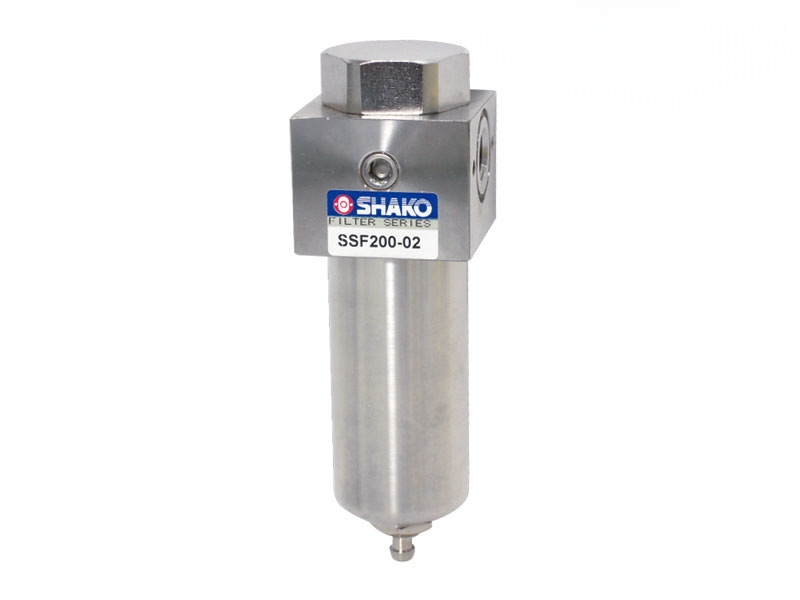

STAINLESS STEEL
Part Number: SSFX00- Miniature
Function: High pressure, corrosion and chemical resistance
Port size: 1/4"
Filtration: 5μm, 40μm Optional
Download catalogue

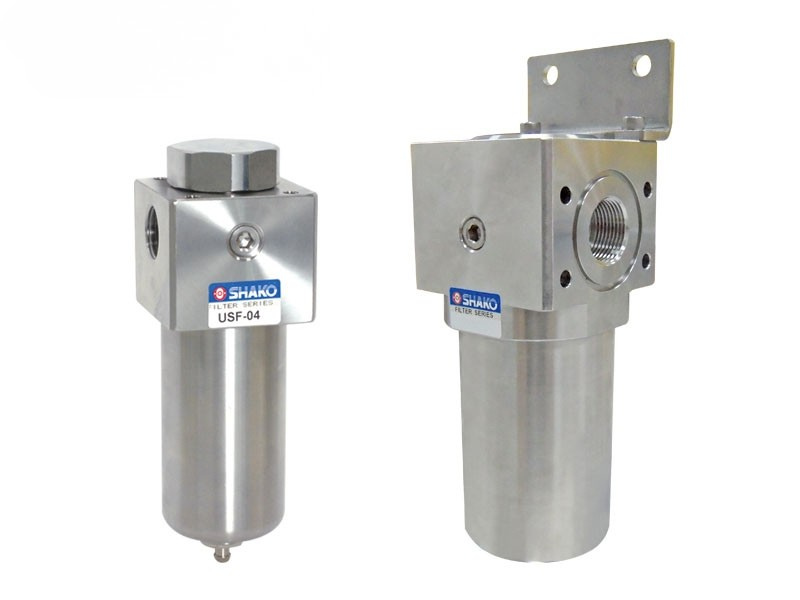

STAINLESS STEEL
Part Number: USF-0XX - Standard
Function: High pressure, corrosion and chemical resistance
Port size: 1/4 to 1"
Filtration: 5μm, 40μm Optional
Download catalogue
MASTER PNEUMATIC filters
SENTRY MODULAR FILTER
Part Number: FD10, FD10-2, F10, F10-2
Body: Acetal
Bowl + Drain: 60-ml polycarbonate plastic; optional aluminum bowl. Internal automatic drain or manual drain.
Port Size: 1/8" & 1/4"
SENTRY MODULAR - ACETEL
Part Number: FCD10
Bowl: 60ml capacity polycarbonate plastic or aluminum. Internal automatic drain or manual drain.
Port Size: 1/8" & 1/4"
MINIATURE COALESCENT FILTER
Part Number: FCD50
Body: Aluminium
Bowl: 60ml capacity polycarbonate or aluminum. Automatic or manual drain.
Port Size: 1/8" & 1/4"
MINIATURE FILTER
Part Number: F50-2, FD50-2, F50S
Body: Aluminium/polycarbonate
Bowl + Drain: 60-ml polycarbonate, aluminum or stainless option. Internal automatic drain or manual drain.
Port Size: 1/8" & 1/4"
MODULAR FILTER
Part Number: F350, FD380
Body: Die-cast zinc/polycarbonate
Bowl + Drain: See catalogue.
Port Size: 1/8" & 1/4" - Standard, 3/8", 1/2", 3/4"
FULL SVANGUARD MODULAR FILTER
Part Number: FD100
Body: Zinc/polycarbonate
Bowl + Drain: 240-ml polycarbonate with steel shatter guard. Automatic or manual drain, internal float drain.
Port Size: 1/4", 3/8", 1/2", 3/4"
Download catalogue
HIGH FLOW VANGUARD FILTER
Part Number: BFD200
Body: Aluminium
Bowl + Drain: 1L aluminum bowl with clear nylon sight glass. Internal automatic drain or manual drain, internal float drain or external Hydro-Jector drain
Port Size: 3/4", 1/4", 1-1/4", 1-1/2"
HIGH FLOW VANGUARD FILTER
Part Number: FD100, BF6A400
Body: Aluminium
Bowl + Drain: See catalogue. Internal automatic drain or manual drain, internal float drain or external Hydro-Jector drain
Port Size: 1/4", 3/8", 1/2", 3/4", 1-1/4", 1-1/2", 2"
MODULAR COALESCENT FILTER
Part Number: FC350, FCD380
Body: Die-cast zinc/polycarbonate
Bowl: See catalogue.
Port Size: 1/4", 3/8", 1/2" Standard, 3/8", 1/2", 3/4" Large
FULL SIZE VANGUARD MODULAR
Part Number: FCD101
Body: zinc/polycarbonate
Bowl: See catalogue. Automatic or manual drain, internal float drain.
Port Size: 1/4", 3/8", 1/2", 3/4"
HIGH FLOW VANGUARD
Part Number: BFCD201
Body: Aluminium/polycarbonate
Bowl: 1050ml aluminum bowl. Automatic or manual drain, internal float drain.
Port Size: 3/4", 1", 1-1/4", 1-1/2
HIGH FLOW VANGUARD
Part Number: FCD101 - High flow.
Body: Aluminium/polycarbonate
Bowl: 480ml polycarbonate with steel shatter guard. Automatic or manual drain, internal float drain.
Port Size: 3/4" & 1"
HIGH FLOW VANGUARD
Part Number: BFC6A401, BFC6A401H
Body: Aluminium/polycarbonate
Bowl: 3548ml aluminum bowl. Automatic or manual drain, internal float drain.
Port Size: 1 1/4", 1 1/2", 2"
MODULAR ADSORBER FILTER
Part Number: FC350-E9
Body: Die-cast zinc/polycarbonate
Bowl + Drain: 151ml Polycarbonate with nylon shatter guard. Manual drain.
Port Size: 1/4", 3/8", 1/2"
FULL MODULAR ADSORBER FILTER
Part Number: FC380-E9
Body: Zinc/polycarbonate
Bowl + Drain: 270ml polycarbonate with steel shatter guard. Manual drain.
Port Size: 3/8", 1/2", 3/4"
350 SERIES MODULAR
Part Number: BAG1D0A6A93
Body: Die-cast zinc/polycarbonate
Description: In the 350 Series assembly the coalescing filter removes oil mists, aerosols, and minute particles. Finally, the adsorbing filter eliminates odors from Freons, alcohols, esters, ketones, and up to 99% of most hydrocarbons. Colours available.
Download catalogue
100 SERIES HIGH FLOW VANGUARD
Part Number: BFFC100
Body: Aluminium
Description: This assembly consists of a filter and a coalescing filter from the High Flow 100 series. The general-purpose filter removes contaminants, while the coalescing filter removes oil mists, aerosols, and minute particles.
380 SERIES MODULAR FULL SIZE
Body: Aluminium
Description: General purpose filter (FD380) with 5-µm-rated polyethylene filter element. Coalescing filter with 0.3-µm-rated coalescing element; optional 0.1-µm element. Adsorbing filter with activated carbon element. Modular or inline mounting.
