KNOCKS AIR PREPARATION
The KNOCKS Futura series features an innovative concept for the material it uses, Grivory GV-6H. It is more economical, offers a greater number of design options and weighs less. The Multi-Fix and Standard series are made of die-cast zinc or aluminium, thereby offering additional robustness thanks to influence from the outside.
Should you require further information or cannot locate a product/service please do not hesitate to make contact - sales@macvalves.co.nz
FILTERS
ACTIVATED CARBON FILTER BG1, 2, 4
Port Sizes: 1/4, 1/2, 3/4, 1”
Bowl: PC + PA guard or Metal
Supply Pressure: 0 - 16 bar
Temperature Range: -10˚C - +50˚C
Drain: Semi-auto

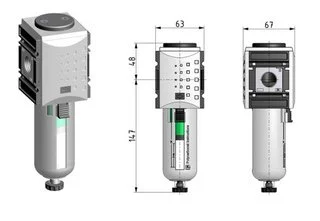

FINEFILTER BG1, 2, 4
Filter Element: 0.01 Micron
Port Sizes: 1/4, 1/2, 3/4, 1”
Bowl: PC + PA guard or Metal
Supply Pressure: 1.5 - 16 bar
Temperature Range: -10˚C - +50˚C
Drain: Semi-auto or automatic

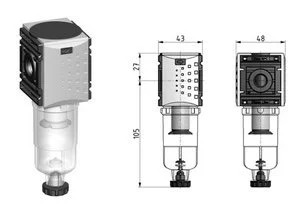

FILTER BG0 - MINI
Filter Element: 5 Micron
Port Sizes: 1/4”
Bowl: PC
Supply Pressure: 1.5 - 12 bar
Temperature Range: -10˚C - +50˚C
Drain: Semi-auto or automatic

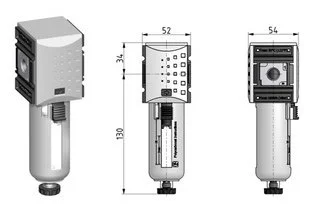

FILTER BG1, 2, 4
Filter Element: 5 Micron
Port Sizes: 1/4, 1/2, 3/4, 1”
Bowl: PC + PA guard or Metal
Supply Pressure: 1.5 - 16 bar
Temperature Range: -10˚C - +50˚C
Drain: Semi-auto

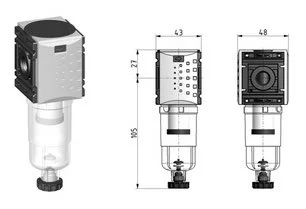

PREFILTER BG0 - MINI
Filter Element: 0.3 Micron
Port Sizes: 1/4'“
Bowl: PC
Supply Pressure: 1.5 - 12 bar
Temperature Range: -10˚C - +50˚C
Drain: Semi-auto
Download catalogue
PREFILTER BG1, 2, 4
Filter Element: 0.3 Micron
Port Sizes: 1/4, 1/2, 3/4, 1”
Bowl: PC + PA guard
Supply Pressure: 1.5 - 16 bar
Temperature Range: -10˚C - +50˚C
Drain: Semi-auto
Pressure REGULATORS

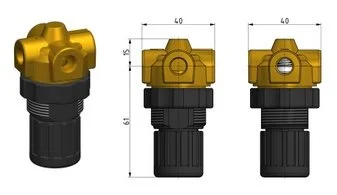

MEDICAL OXYGEN REGULATOR BG0
Part Number: DR.01MO
Port Sizes: 1/4”
Max Supply Pressure: 14 bar
Temperature Range: -10˚C - +60˚C
Gauge on request.

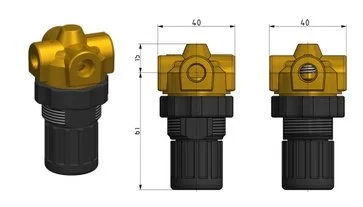

REGULATOR FOR WATER BG0
Part Number: DR.021-01
Port Sizes: 1/4”
Max Supply Pressure: 10 bar
Temperature Range: -10˚C - +60˚C
Gauge on request.

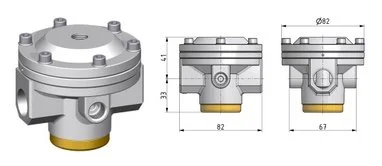

PNEUMATIC PILOT OPERATED BG3
Part Number: DRI.33
Port Sizes: 1/2”
Max Supply Pressure: 25 bar
Temperature Range: -10˚C - +80˚C
Gauge on request.

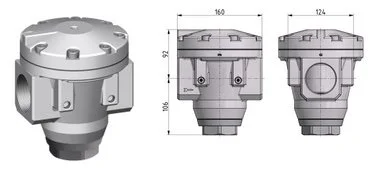

PNEUMATIC PILOT OPERATED BG8
Part Number: DRI.88
Port Sizes: 2”
Max Supply Pressure: 25 bar
Temperature Range: -10˚C - +80˚C
Gauge on request.
STANDARD PRESSURE REGULATOR
Part Number: DR.M5 S
Port Sizes: M5
Max Supply Pressure: 16 bar
Temperature Range: -10˚C - +60˚C

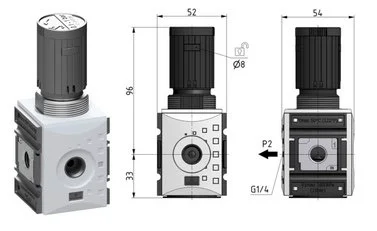

PRECISION REGULATOR BG1, 2
Part Number: KPRG-XXX/8
Port Sizes: 1/4, 1/2”
Max Supply Pressure: 16 bar
Temperature Range: -10˚C - +50˚C
Available with or without a gauge.
CONTINUOUS PRESSURE BG0
Part Number: KRBE-014/8G
Port Sizes: 1/4”
Max Supply Pressure: 12 bar
Temperature Range: -10˚C - +50˚C
Built-in gauge.
CONTINUOUS PRESSURE BG1, 2
Part Number: KRBE-XXX/8
Port Sizes: 1/4, 1/2”
Max Supply Pressure: 16 bar
Temperature Range: -10˚C - +50˚C
Available with or without a gauge.

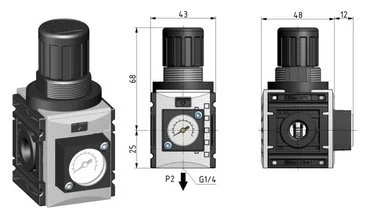

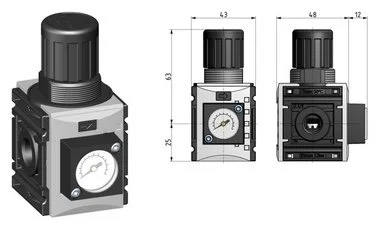

PRESSURE REGULATOR BG0
Part Number: KREG-014/8G
Port Sizes: 1/4”
Max Supply Pressure: 12 bar
Temperature Range: -10˚C - +50˚C
Built-in gauge.
PRESSURE REGULATOR BG1, 2, 4
Part Number: KREG-XXX/XX
Port Sizes: 1/4, 1/2, 3/4, 1”
Max Supply Pressure: 16 bar
Temperature Range: -10˚C - +50˚C
Available with or without a gauge.
REGULATOR W/ GAUGE INSIDE KNOB
Part Number: RG.11S
Port Sizes: 1/4”
Max Supply Pressure: 16 bar
Temperature Range: -10˚C - +60˚C

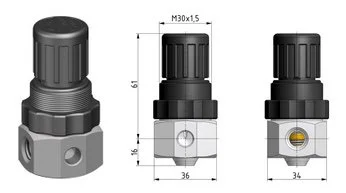

STAINLESS STEEL REGULATOR BG0
Part Number: XDR.01
Port Sizes: 1/4”
Max Supply Pressure: 16 bar
Temperature Range: -10˚C - +80˚C
Viton seals included.
FILTER REGULATORS

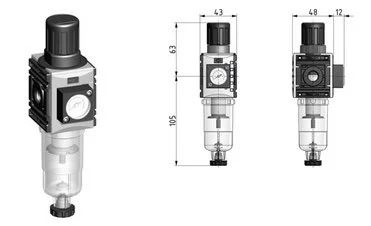

FILTER REGULATOR BG0
Filter Element: 5 Micron
Port Sizes: 1/4”
Bowl: PC
Max Supply Pressure: 12 bar
Temperature Range: -10˚C - +50˚C
Drain: Semi-auto
Built-in gauge.
Download catalogue
FILTER REGULATOR BG1, 2, 4
Filter Element: 5 Micron
Port Sizes: 1/4, 1/2, 3/4, 1”
Bowl: PC + PA bowl guard or metal
Max Supply Pressure: 16 bar
Temperature Range: -10˚C - +50˚C
Drain: Semi-auto or automatic
Available with or without gauge.
Download catalogue
LUBRICATORS

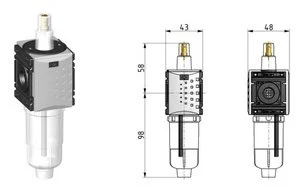

LUBRICATOR BG0
Part Number: KLUB-014
Port Sizes: 1/4”
Max Supply Pressure: 12 bar
Temperature Range: -10˚C - +50˚C
LUBRICATOR BG1, 2, 4
Part Number: KLUB-XXX
Port Sizes: 1/4, 1/2, 3/4, 1”
Max Supply Pressure: 16 bar
Temperature Range: -10˚C - +50˚C
COMBINATION SETS
SERVICE 2 UNIT BG0
Part Number: KS2U-014/8G
Port Sizes: 1/4”
Max Supply Pressure: 12 bar
Temperature Range: -10˚C - +50˚C
Built-in gauge.

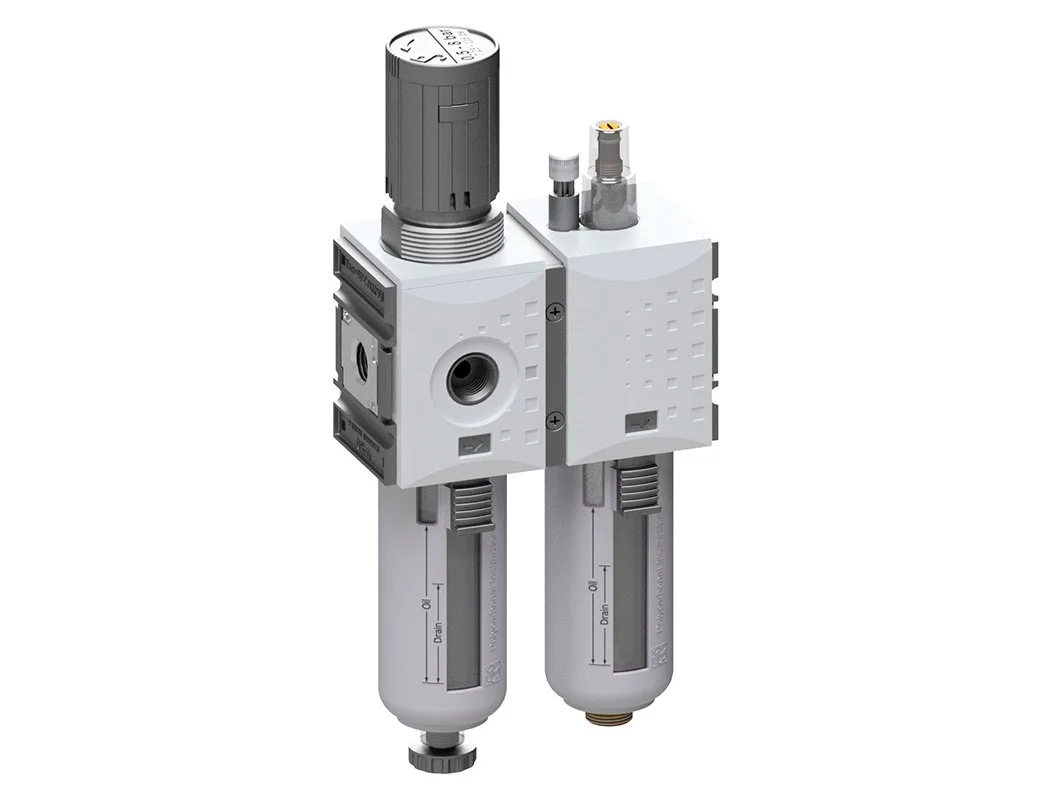

SERVICE 2 UNIT BG1, 2, 4
Part Number: KS2U-XXX/XX
Port Sizes: 1/4, 3/8, 1/2, 3/4, 1”
Max Supply Pressure: 16 bar
Temperature Range: -10˚C - +50˚C
Available with or without gauge.
SERVICE 3 UNIT BG0
Part Number: KS3U-014/8G
Port Sizes: 1/4”
Max Supply Pressure: 12 bar
Temperature Range: -10˚C - +50˚C
Built-in gauge.

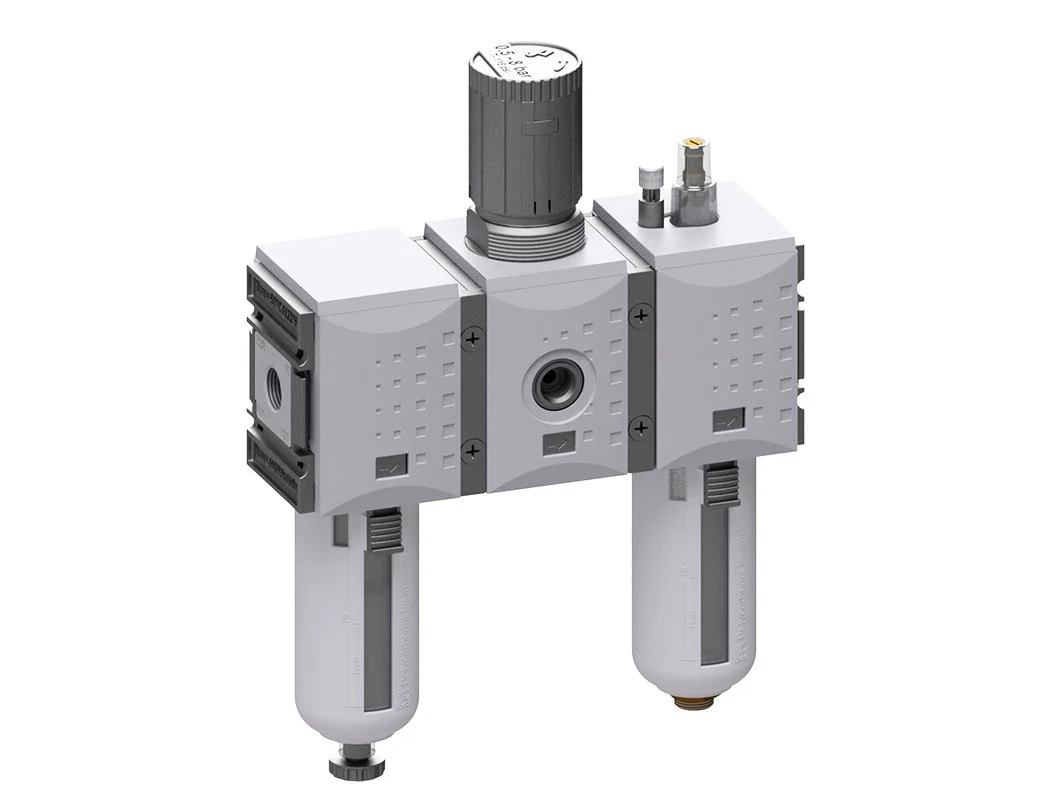

SERVICE 3 UNIT BG2, 4
Part Number: KS3U-XXX/XX
Port Sizes: 1/2, 3/4, 1”
Max Supply Pressure: 16 bar
Temperature Range: -10˚C - +50˚C
Available with or without gauge.
modular add-ons

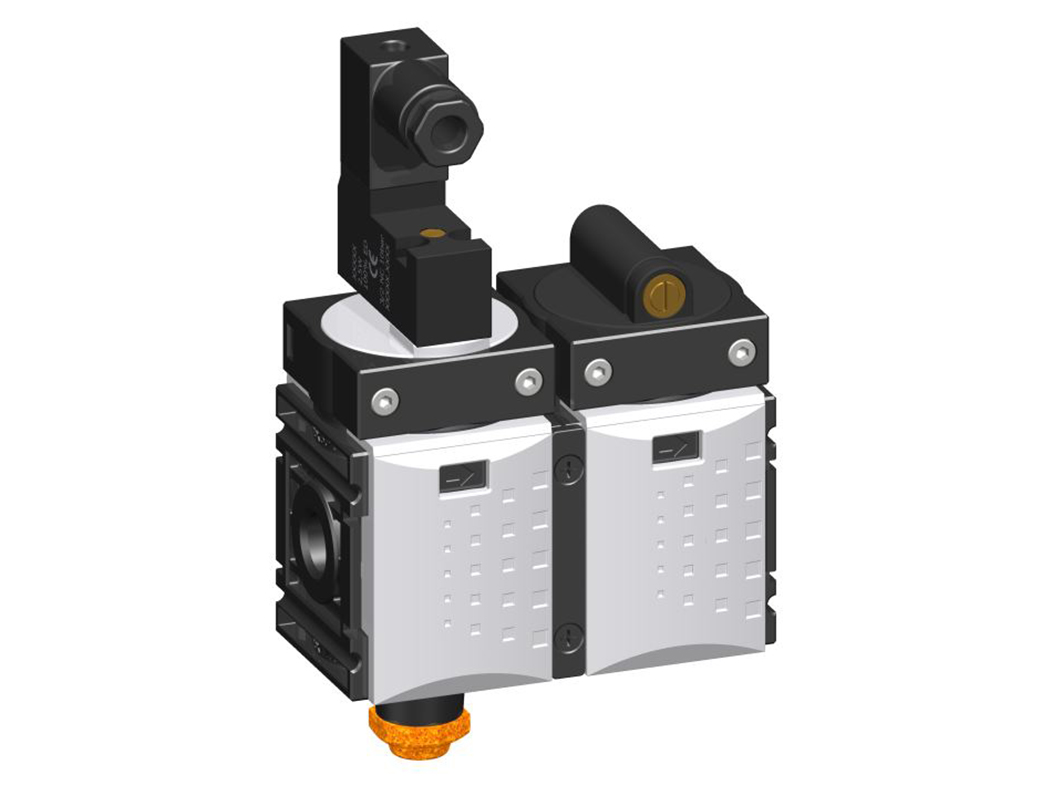

FILLING UNIT BG0
Part Number: K2SA-014XX
Port Sizes: 1/4”
Poppet valve, electric or pneumatic operated.
Download catalogue

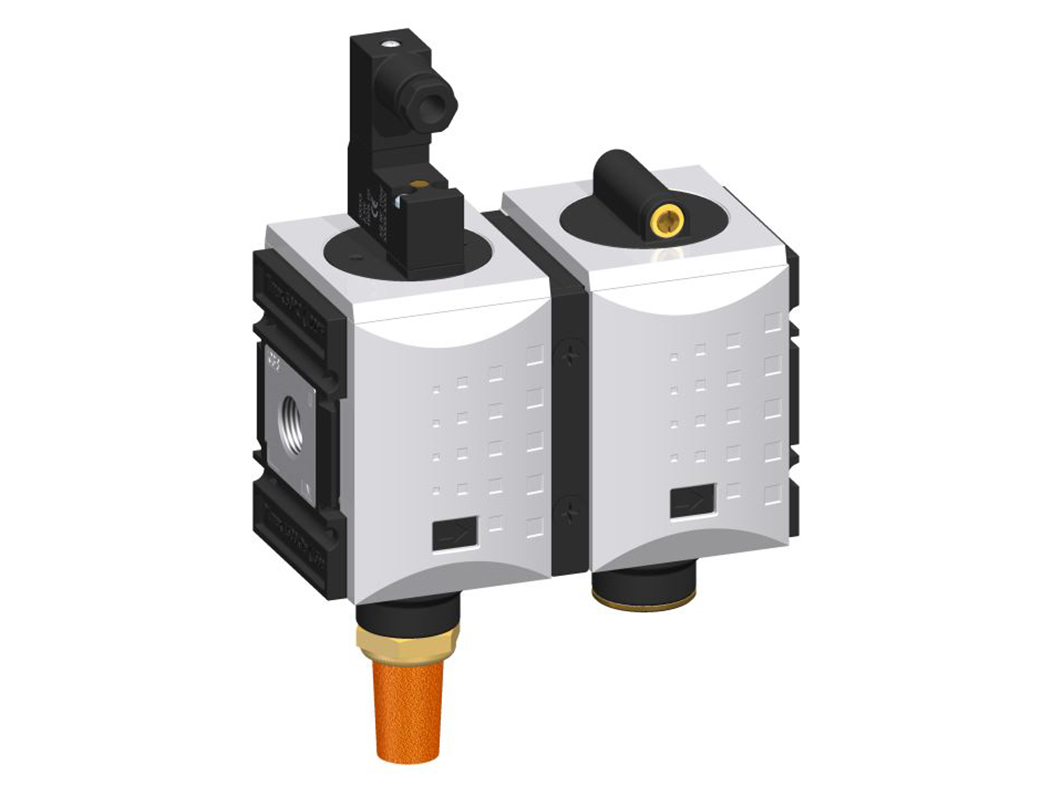

FILLING UNIT BG2, 4
Part Number: K2SA-XXXX
Port Sizes: 1/2, 3/4, 1”
Poppet valve, pneumatic operated.
Download catalogue
BALL VALVE BG0
Part Number: KBAV-014
Port Sizes: 1/4”
3/2 directional control valve, operated by a knob.
Download catalogue
BALL VALVE BG1
Part Number: KBAV-114
Port Sizes: 1/4”
3/2 directional control valve, operated by a knob.
Download catalogue

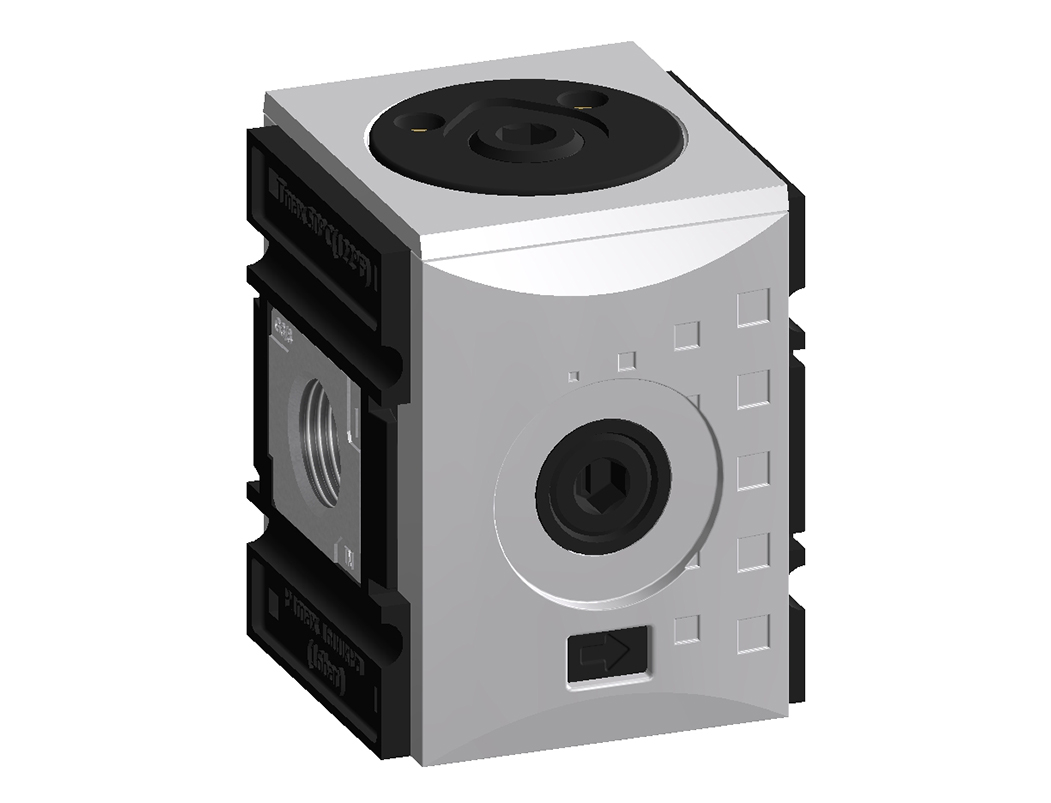

DISTRIBUTOR BG0
Part Number: KDIS-014
Port Sizes: 1/4”
Distribution manifold block.
Download catalogue
DISTRIBUTOR BG1, 2, 4
Part Number: KDIS-XXX
Port Sizes: 1/4, 1/2, 3/4, 1”
Distribution manifold block.
3/2 DIRECTIONAL CONTROL VALVE BG0
Part Number: KSOV-014XX
Port Sizes: 1/4”
With or without pilot valve
3/2 DIRECTIONAL CONTROL VALVE BG1, 2, 4
Part Number: KSOV-XXX/XX
Port Sizes: 1/4, 1/2, 3/4, 1”
Electric or pneumatic operated.
Download catalogue

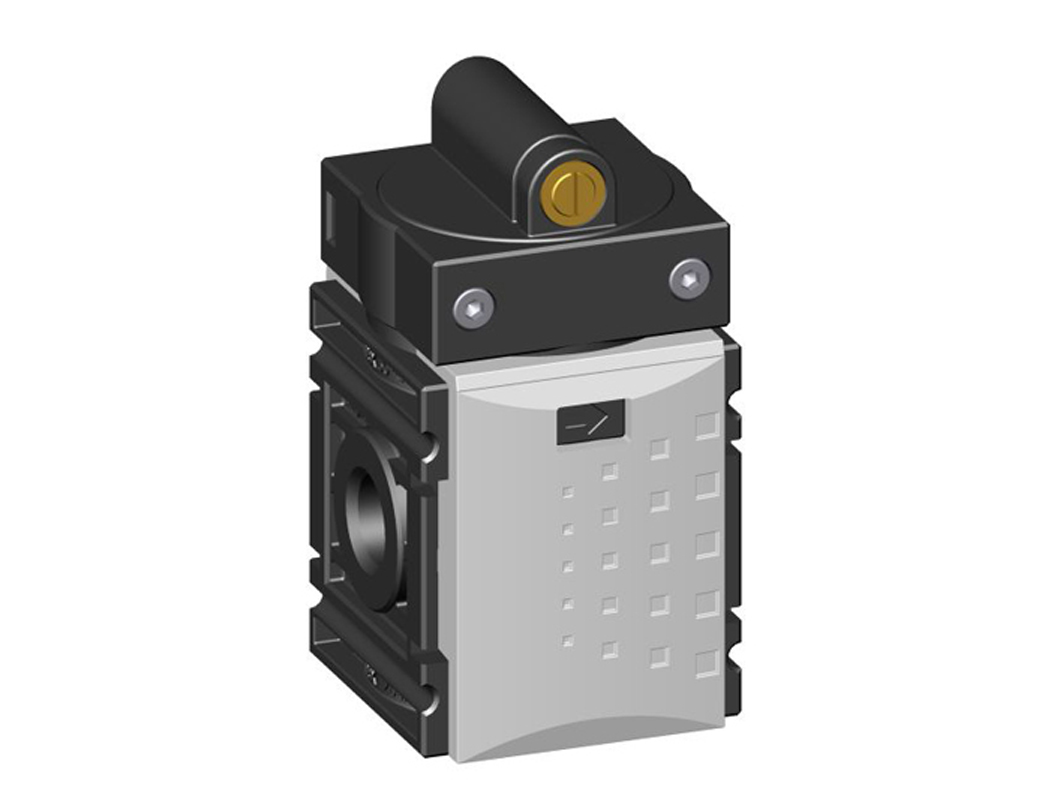

SOFT START VALVE BG0
Part Number: KSSV-014
Port Sizes: 1/4”
Poppet valve, operated by secondary pressure.
Download catalogue
SOFT START VALVE BG1, 2, 4
Part Number: KSSV-XXX
Port Sizes: 1/4, 1/2, 3/4, 1”
Poppet valve, operated by secondary pressure.
Download catalogue
ACCESSORIES
MOUNTING BRACKETS
Material: steel galvanized
See catalogue link below for fixing options and individual part numbers.
BOWLS
Available in PC, PC/PA or Metal.
See catalogue for full range, size and part number information.
CONDENSATE STEAM TRAP
Part Number: KA-212HA4
See catalogue for full range and further information.
Download catalogue
BRACKET KITS
Material: steel galvanized
See catalogue link below for fixing options and individual part numbers.
COUPLING KITS
Part Number: KKOP.X
See catalogue link below for fixing options and individual part numbers.
Download catalogue
PRESSURE SWITCHES
Part Number: PE.10
See catalogue for full range and further information.
Download catalogue
GAUGES
Part Number: G.XX
See catalogue link below for fixing options and individual part numbers.
AUTOMATIC DRAIN
Part Number: AM10NC
See catalogue for full range and further information.
Download catalogue
DOUBLE COUPLING KITS
Part Number: KKOP.XXXK
See catalogue link below for sizes and further information.
Download catalogue
WALL COUPLING KITS
Part Number: KKOP.XW
See catalogue link below for fixing options and individual part numbers.
Download catalogue
