MASTER PNEUMATIC AIR PREPARATION - FILTERS

Master Pneumatic filters to meet your compressed air filtration requirements for clean air by removing water, particulants and/or oil. Select general purpose filters with micron ratings of 5 um, 20 um or 40 um to remove water and particulate material. Coalescing filters remove oil and solid contaminants with 0.3 to 0.01 micron elements. To remove air line vapors add an adsorbing filter. They produce air that is virtually free of oil and hydrocarbon vapors removing orders from alcohols, esters and ketones. Choose one of our Clean Air Packages to easily combine all three of these filters into one assembly.

Should you require further information or cannot locate a product/service please do not hesitate to make contact - sales@macvalves.co.nz

COALESCING FILTERS

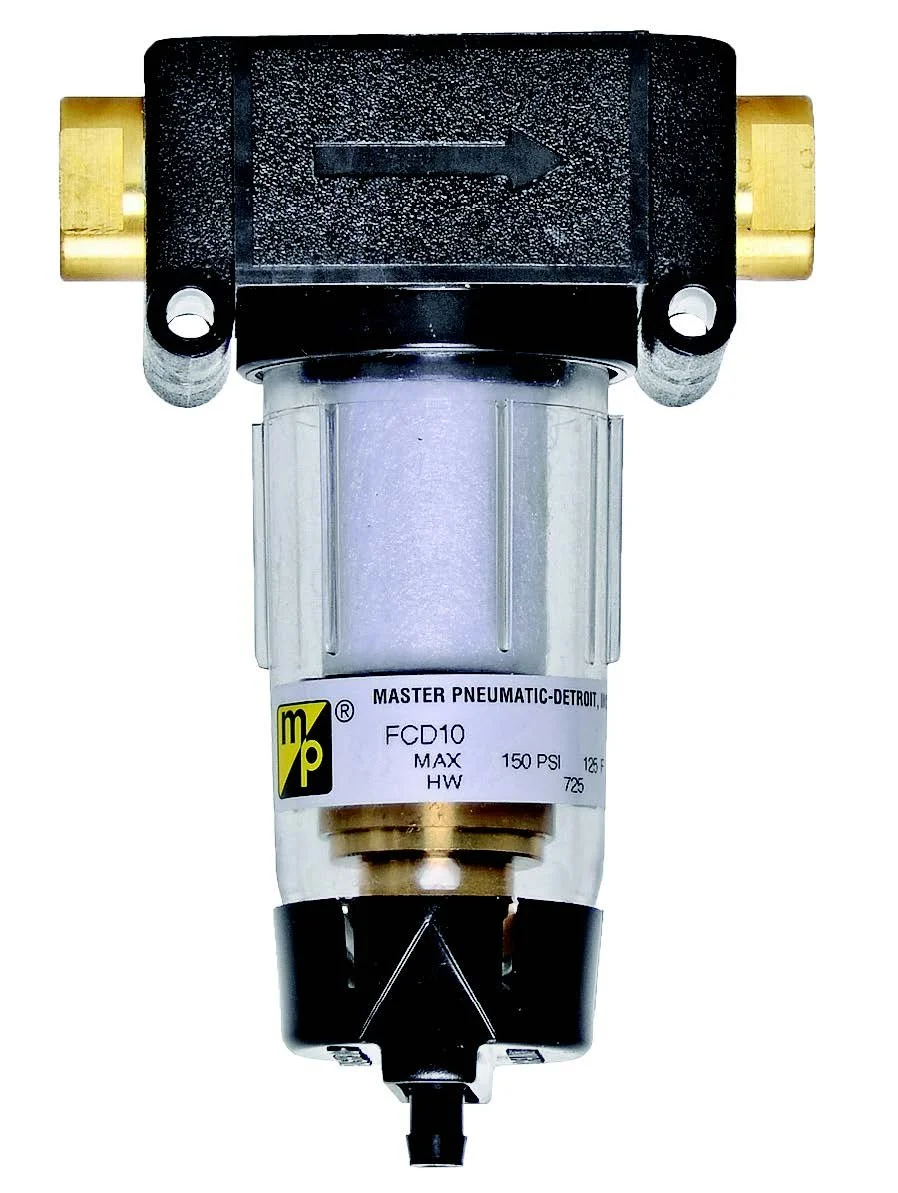

SENTRY MODULAR COALESCENT FILTER - ACETEL

Part Number: FCD10
Bowl: 60ml capacity polycarbonate plastic or aluminum. Internal automatic drain or manual drain.
Port Size: 1/8" & 1/4"

Download catalogue

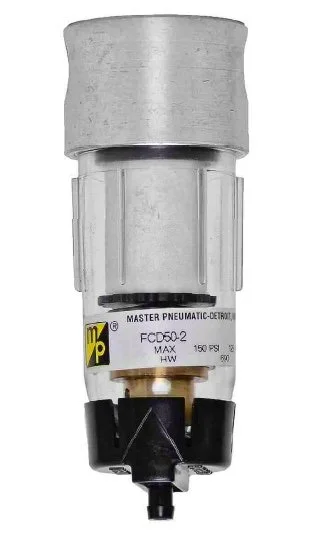

MINIATURE COALESCENT FILTER

Part Number: FCD50
Body: Aluminium
Bowl: 60ml capacity polycarbonate plastic or aluminum. Internal automatic drain or manual drain.
Port Size: 1/8" & 1/4"

Download catalogue

MODULAR COALESCING FILTER

Part Number: FC350, FCD380
Body: Die-cast zinc/polycarbonate
Bowl: See catalogue.
Port Size: 1/4", 3/8", 1/2" (Standard), 3/8", 1/2", 3/4" (Large)


Download catalogue

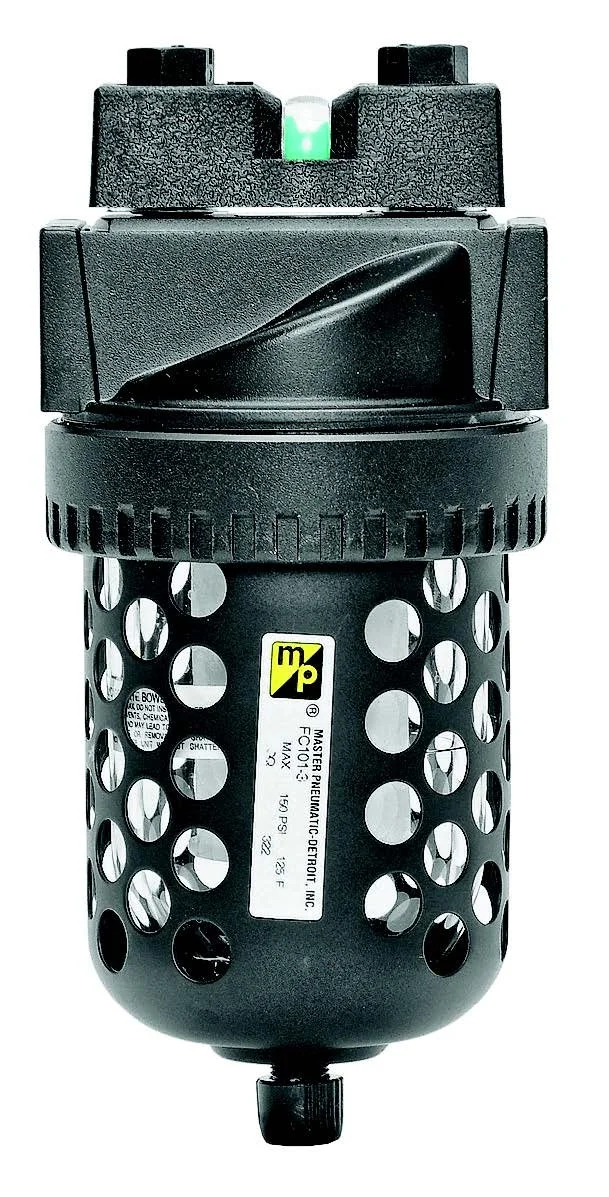

FULL SIZE VANGUARD MODULAR COALESCING FILTER

Part Number: FCD101
Body: zinc/polycarbonate
Bowl: See catalogue. Manual or internal automatic drain and internal float drain
Port Size: 1/4", 3/8", 1/2", 3/4"

Download catalogue

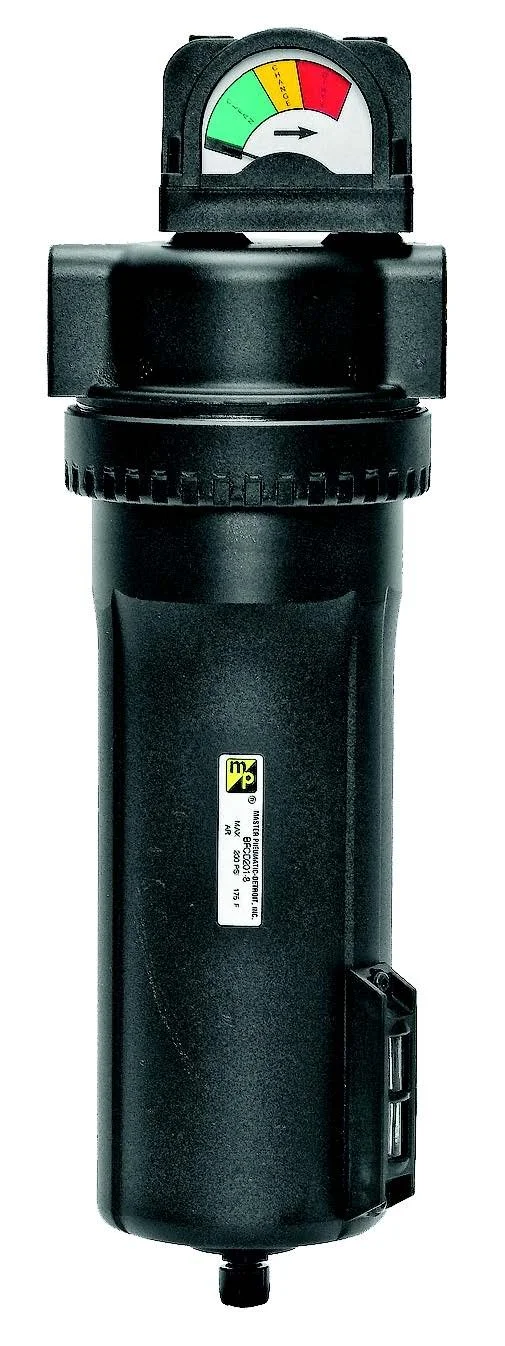

HIGH FLOW VANGUARD COALESCING FILTER

Part Number: BFCD201
Body: Aluminium/polycarbonate
Bowl: 1050ml aluminum bowl. Internal automatic drain or manual drain and internal float drain
Port Size: 3/4", 1", 1-1/4", 1-1/2

Download catalogue

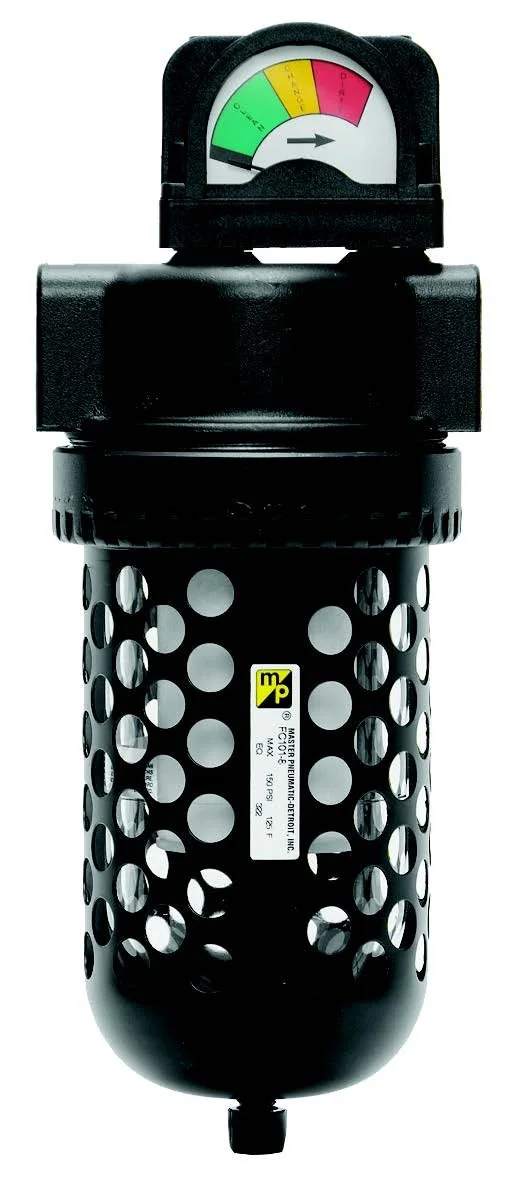

HIGH FLOW VANGUARD COALESCING FILTER

Part Number: FCD101 - High flow.
Body: Aluminium/polycarbonate
Bowl: 480ml polycarbonate plastic with steel shatter guard. Automatic drain or manual drain and internal float drain.
Port Size: 3/4" & 1"

Download catalogue

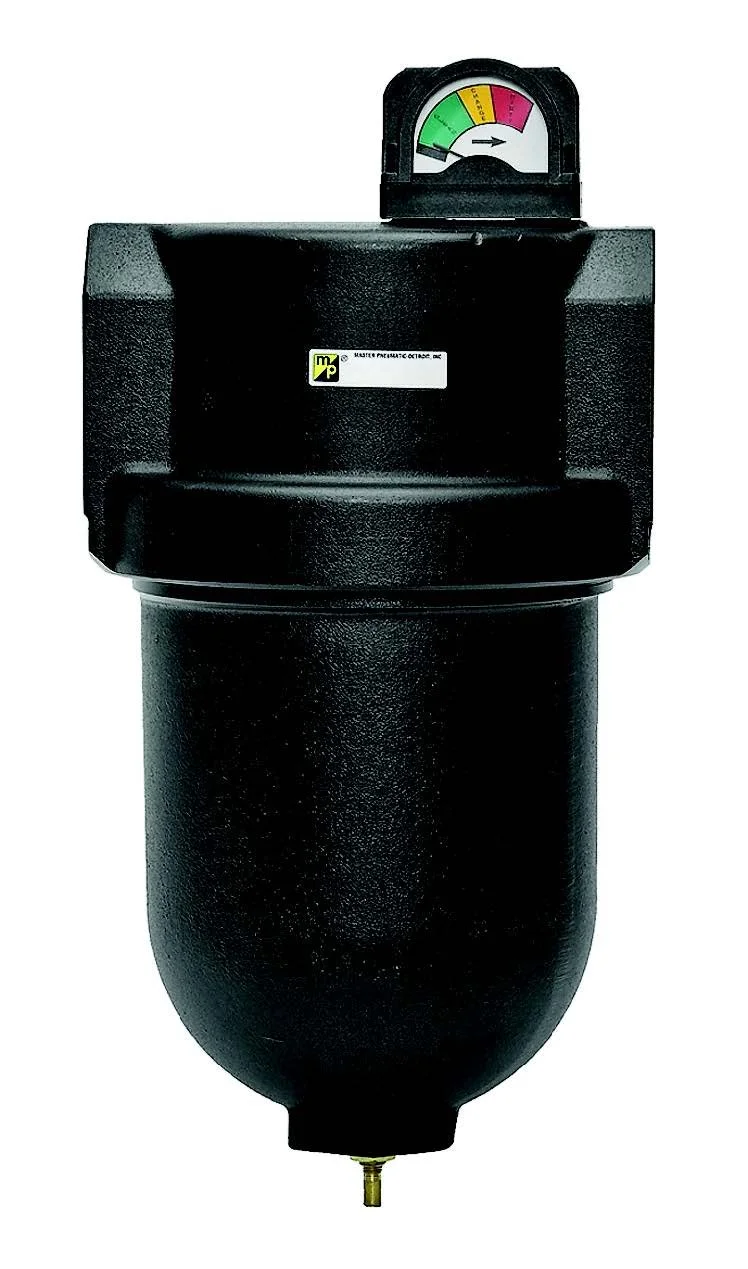

HIGH FLOW VANGUARD COALESCING FILTER

Part Number: BFC6A401, BFC6A401H
Body: Aluminium/polycarbonate
Bowl: 3548ml aluminum bowl. Internal automatic drain or manual drain and internal float drain
Port Size: 1 1/4", 1 1/2", 2"

Download catalogue

general purpose

SENTRY MODULAR FILTER

Part Number: FD10, FD10-2, F10, F10-2
Body: Acetal
Bowl + Drain: 60-ml polycarbonate plastic; optional aluminum bowl. Internal automatic drain; optional manual drain
Port Size: 1/8" & 1/4"


Download catalogue

MINIATURE FILTER

Part Number: F50-2, FD50-2, F50S
Body: Aluminium/polycarbonate
Bowl + Drain: 60-ml polycarbonate plastic or aluminum bowl, Stainless option. Internal automatic drain or manual drain.
Port Size: 1/8" & 1/4"

Download catalogue

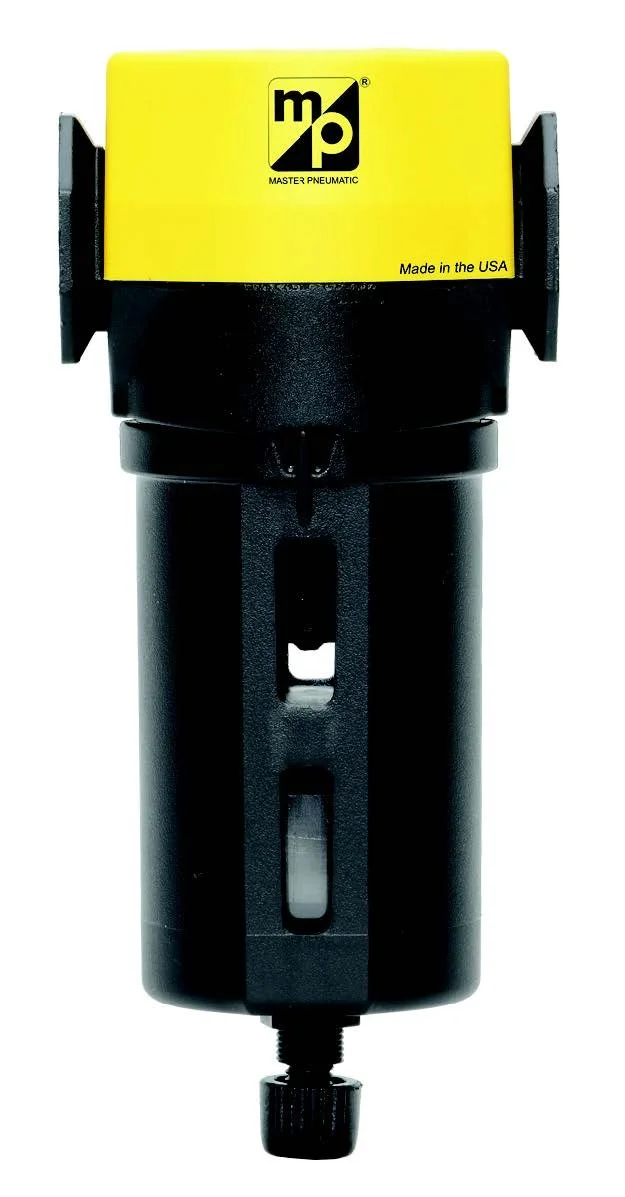

MODULAR FILTER

Part Number: F350, FD380
Body: Die-cast zinc/polycarbonate
Bowl + Drain: See catalogue.
Port Size: 1/8" & 1/4" - Standard, 3/8", 1/2", 3/4"



Download catalogue

FULL SVANGUARD MODULAR FILTER

Part Number: FD100
Body: Zinc/polycarbonate
Bowl + Drain: 240-ml polycarbonate plastic with steel shatter guard. Internal automatic drain or manual drain, internal float drain
Port Size: 1/4", 3/8", 1/2", 3/4"

Download catalogue

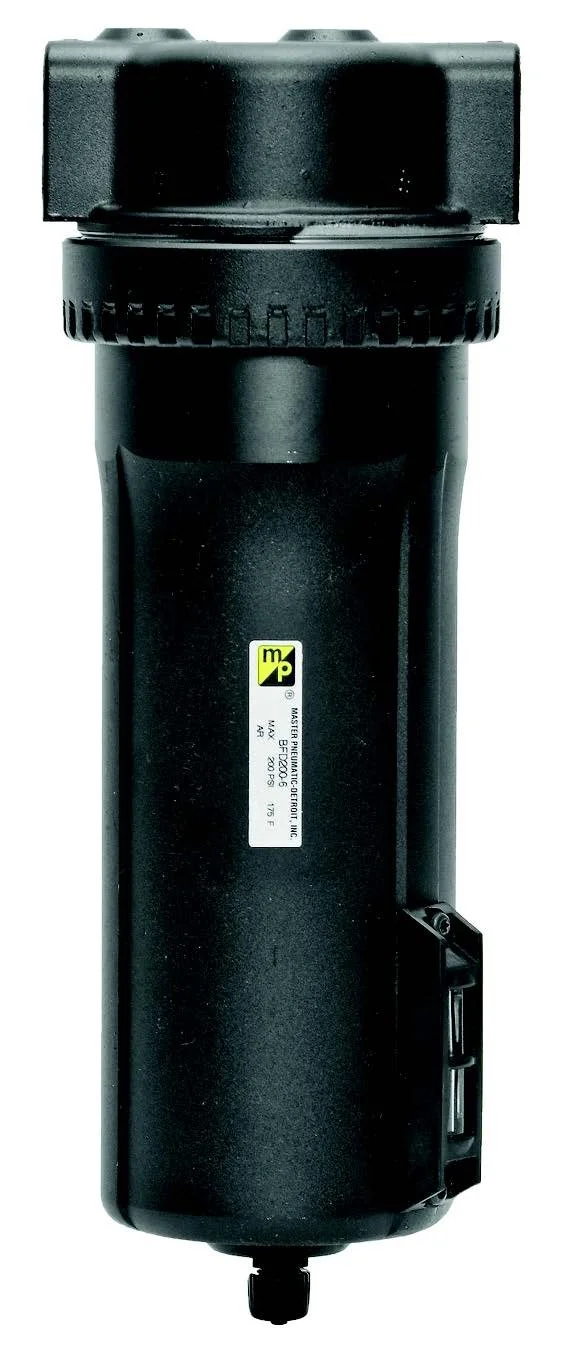

HIGH FLOW VANGUARD FILTER

Part Number: BFD200
Body: Aluminium
Bowl + Drain: 1L aluminum bowl with clear nylon sight glass. Internal automatic drain or manual drain, internal float drain or external Hydro-Jector drain
Port Size: 3/4", 1/4", 1-1/4", 1-1/2"

Download catalogue

HIGH FLOW VANGUARD FILTER

Part Number: FD100, BF6A400
Body: Aluminium
Bowl + Drain: See catalogue. Internal automatic drain or manual drain, internal float drain or external Hydro-Jector drain
Port Size: 1/4", 3/8", 1/2", 3/4", 1-1/4", 1-1/2", 2"

Download catalogue

absorbing

MODULAR ADSORBER FILTER

Part Number: FC350-E9
Body: Die-cast zinc/polycarbonate
Bowl + Drain: 151ml Polycarbonate plastic with nylon shatter guard. Manual drain
Port Size: 1/4", 3/8", 1/2"

Download catalogue

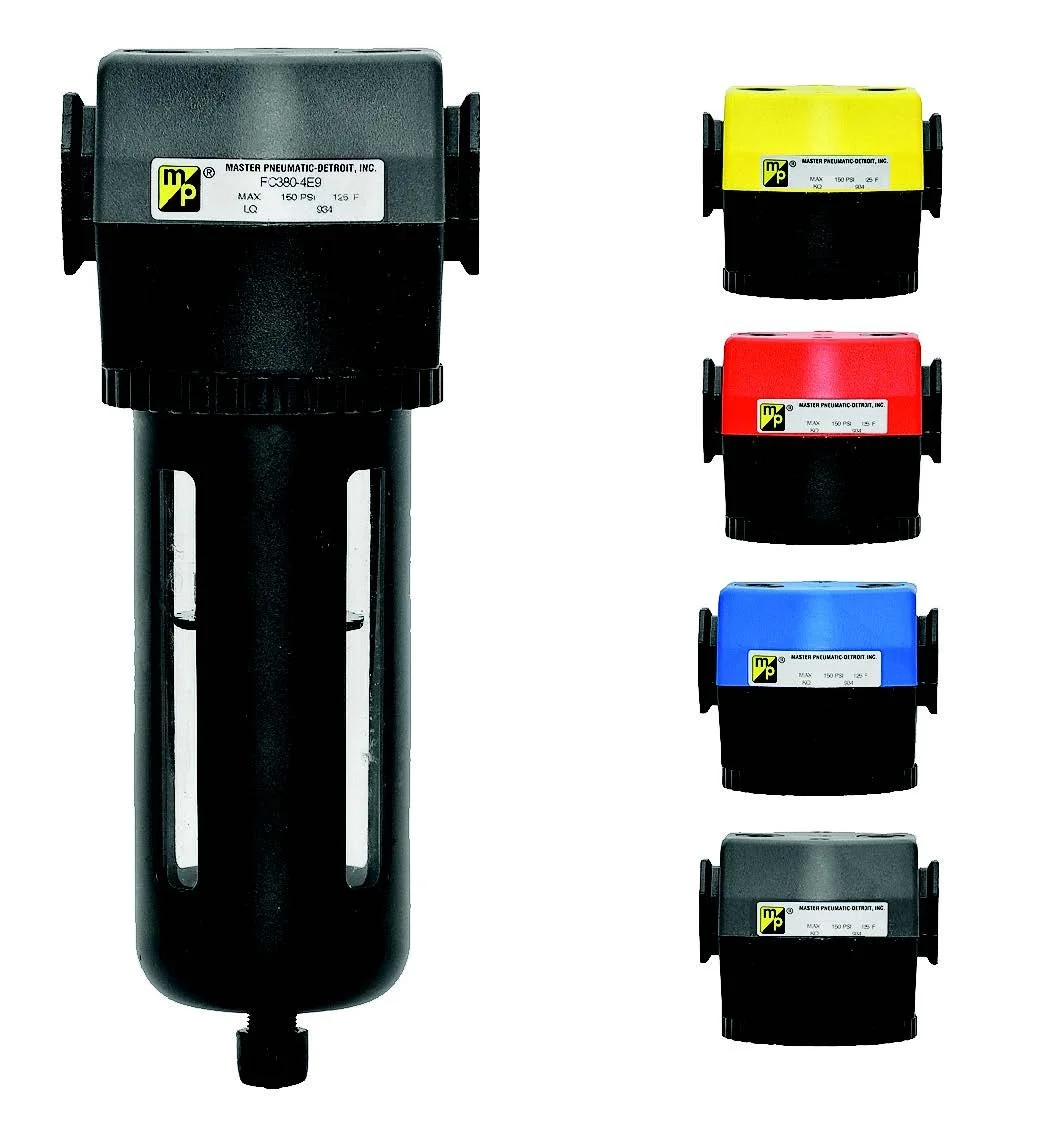

FULL MODULAR ADSORBER FILTER

Part Number: FC380-E9
Body: Zinc/polycarbonate
Bowl + Drain: 270ml polycarbonate plastic with steel shatter guard. Manual drain
Port Size: 3/8", 1/2", 3/4"

Download catalogue

clean air packages

350 SERIES MODULAR

Part Number: BAG1D0A6A93
Body: Die-cast zinc/polycarbonate
Description: Series 350 assembly removes contaminants, the coalescing filter removes oil mists, aerosols, and minute particles. Finally, the adsorbing filter eliminates odors from Freons, alcohols, esters, ketones, and up to 99% of most hydrocarbons. Colours available.

Download catalogue

100 SERIES HIGH FLOW VANGUARD

Part Number: BFFC100
Body: Aluminium
Description: This Clean Air Package consists of a filter and a coalescing filter from the High Flow 100 series. The general-purpose filter removes contaminants, while the coalescing filter removes oil mists, aerosols, and minute particles.

Download catalogue

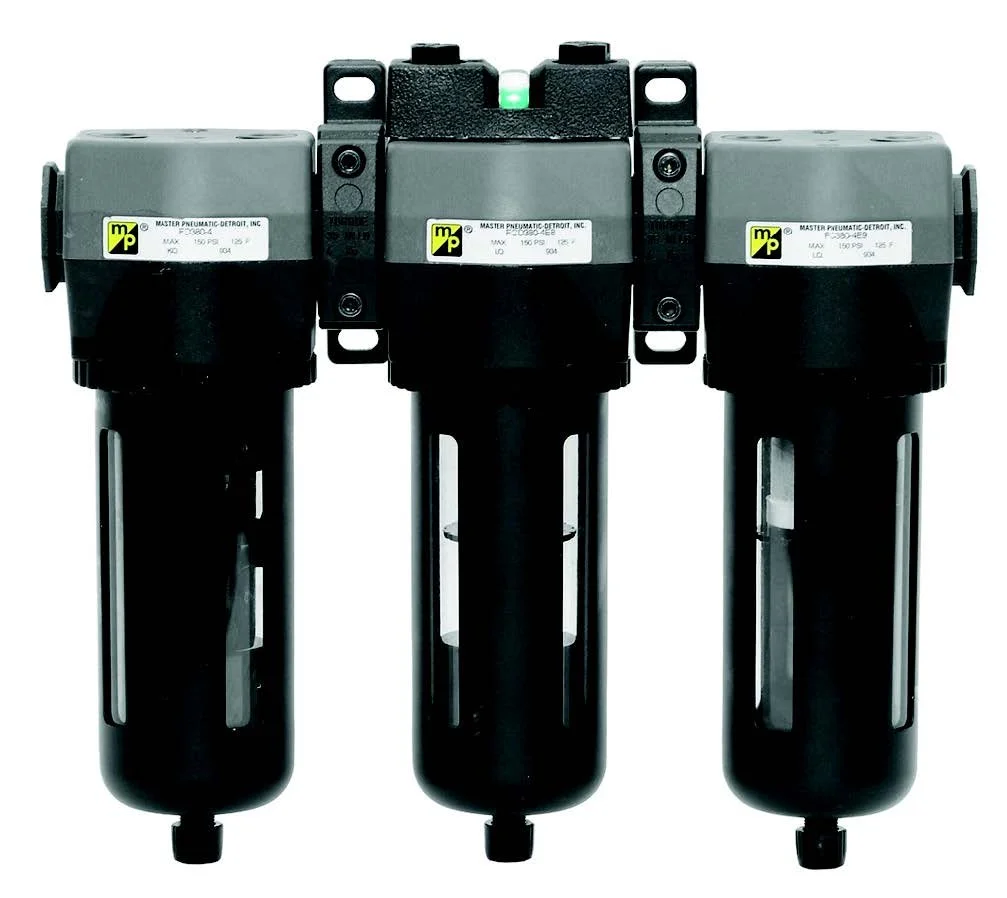

380 SERIES MODULAR FULL SIZE

Body: Aluminium
Description: General purpose filter (FD380) with 5-µm-rated polyethylene filter element. Coalescing filter with 0.3-µm-rated coalescing element; optional 0.1-µm element. Adsorbing filter with activated carbon element. Modular or inline mounting.


Download catalogue
