MASTER PNEUMATIC AIR PREPARATION - REGULATORS

Regulators, Internal/External, Water Pressure, CO2/Nitrogen, & Relief Valves

Should you require further information or cannot locate a product/service please do not hesitate to make contact - sales@macvalves.co.nz

general purpose

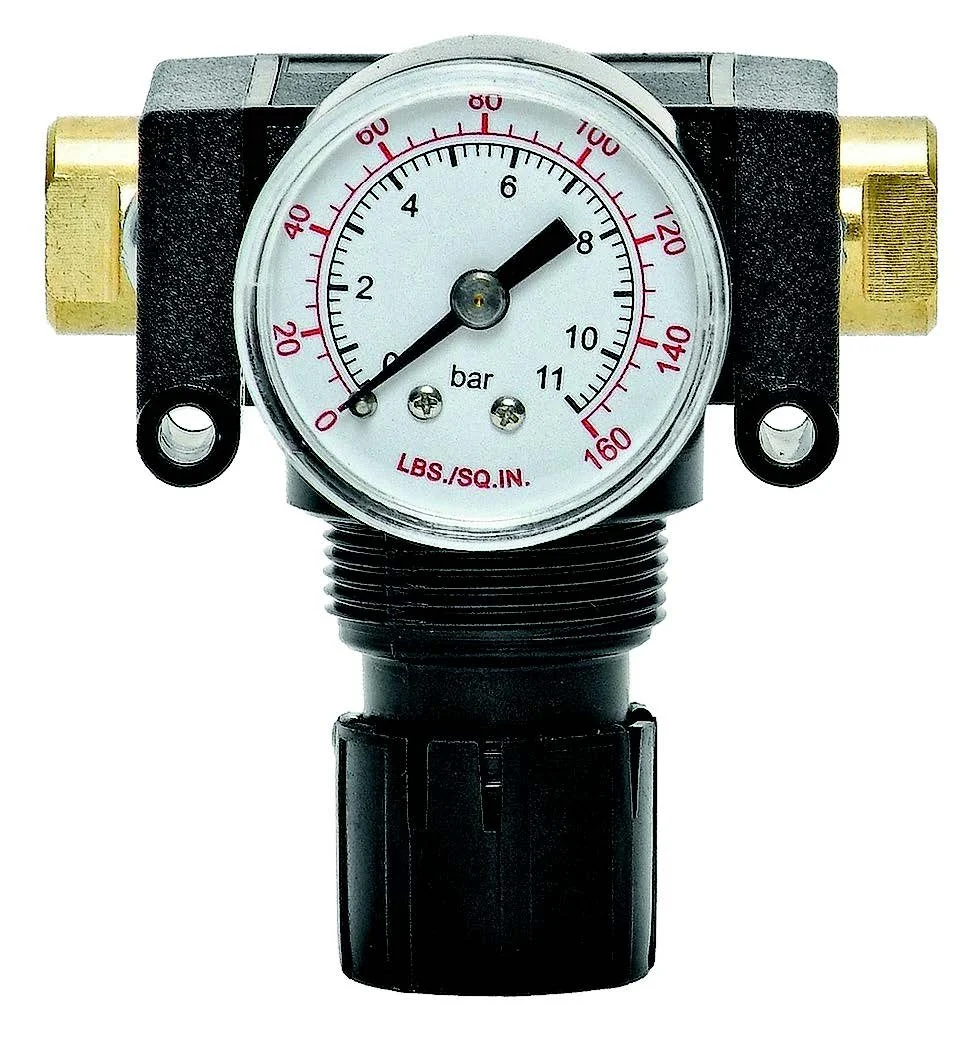

SENTRY MODULAR REGULATOR – ACETEL

Part Number: R10M, R11M (1/8", 1/4")
Pressure Gauge: 0 to 160 psig (11 bar); 1/8 gauge ports front and rear
Panel Mounting: 1-3/16 inch (30 mm) hole required

Download catalogue

MINIATURE REGULATOR - ALUMINUM/NYLON/ACETAL, STAINLESS STEEL

Part Number: R55M, R56M (1/8", 1/4"), R56S (Stainless 1/4")
Pressure Gauge: 0 to 160 psig (11 bar); 1/8 NPT gauge ports front and rear
Panel Mounting: 1-3/16 inch (30mm) hole required


Download catalogue

MODULAR REGULATOR - DIE-CAST ZINC/POLYCARBONATE/BRASS

Part Number: R350 (Standard 1/4", 3/8", 1/2"), R380 (Large 3/8", 1/2", 3/4")
Pressure Gauge: 0 to 200psig (14bar); 1/4-NPT gauge ports front & rear
Panel Mounting: 2-1/16 inch (52 mm) hole required

Download catalogue

HIGH PRESSURE REGULATOR – ALUMINIUM

Part Number: R67 (1/8", 1/4", 3/8")
Pressure Gauge: 0 to 200psig (0 to 14bar); optional 0 to 600psig (0 to 41bar); 1/4-NPTF gauge ports on front and rear of head
Panel Mounting: 1-9/16 inch (40mm) hole required


Download catalogue

FULL SIZE VANGUARD MODULAR REGULATOR - ZINC/BRASS/ACETAL

Part Number: R100 (1/4", 3/8", 1/2" & 3/4")
Pressure Gauge: 0 to 200 psig (14 bar); 1/4 NPT gauge ports front and rear
Panel Mounting: 2-1/16 inch (52 mm) hole required

Download catalogue

HIGH FLOW VANGUARD REGULATOR - ALUMINIUM

Part Number: R180M (Standard 3/4" & 1"), R180 (Large 1 1/4" & 1 1/2")
Pressure Gauge: 0 to 200 psig (14 bar); 1/4 NPT gauge ports front and rear
Panel Mounting: 2-1/16 inch (52mm) hole required


Download catalogue

PRECISION & INTERNAL

MINIATURE PRECISION REGULATOR - ALUMINIUM

Part Number: R57M (1/8" & 1/4")
Pressure Gauge: 0 to 160 psig (11 bar); 1/8 NPT gauge ports front and rear
Panel Mounting: 1-3/16 inch (30 mm) hole required



Download catalogue

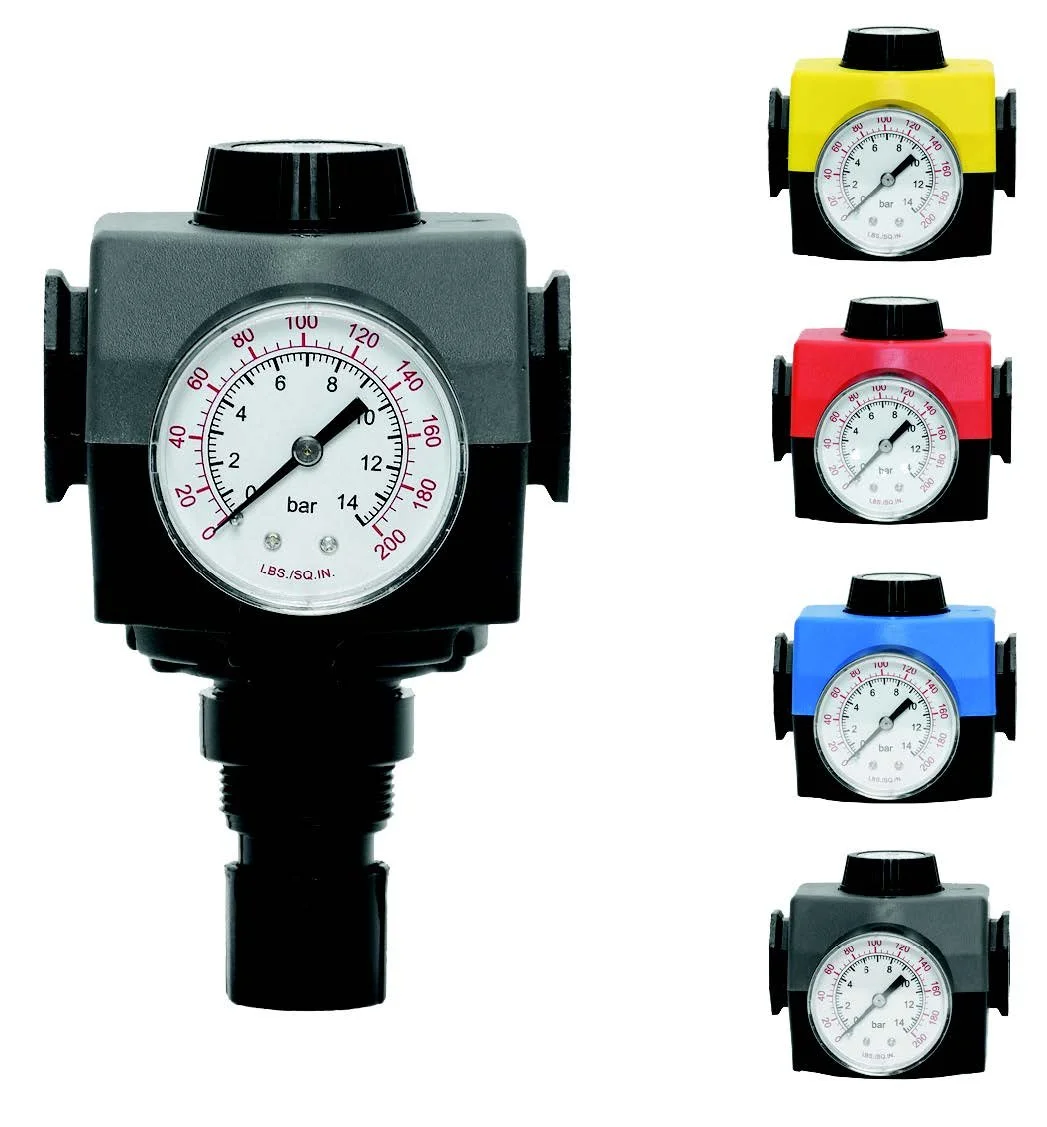

FULL SIZE MODULAR PRECISION REGULATOR - DIE-CAST ZINC

Part Number: IR380 (3/8", 1/2", 3/4")
Pressure Gauge: 0 to 200 psig (14 bar); 1/4 NPT gauge ports front and rear
Panel Mounting: 2-1/16 (52 mm) hole required



Download catalogue

FULL SIZE VANGUARD MODULAR PRECISION REGULATOR - DIE-CAST ZINC

Part Number: IR100 (1/4", 3/8", 1/2" & 3/4")
Pressure Gauge: 0 to 200 psig (14 bar); 1/4 NPT gauge ports front and rear
Panel Mounting: 1-3/16 (30 mm) hole required

Download catalogue

HIGH FLOW VANGUARD PRECISION REGULATOR - ALUMINIUM

Part Number: IR180M (3/4", 1", 1-1/4" & 1-1/2")
Pressure Gauge: 0 to 200 psig (14 bar); 1/4 NPT gauge ports front and rear
Panel Mounting: 1-3/16 (30 mm) hole required

Download catalogue

EXTERNALLY PILOTED

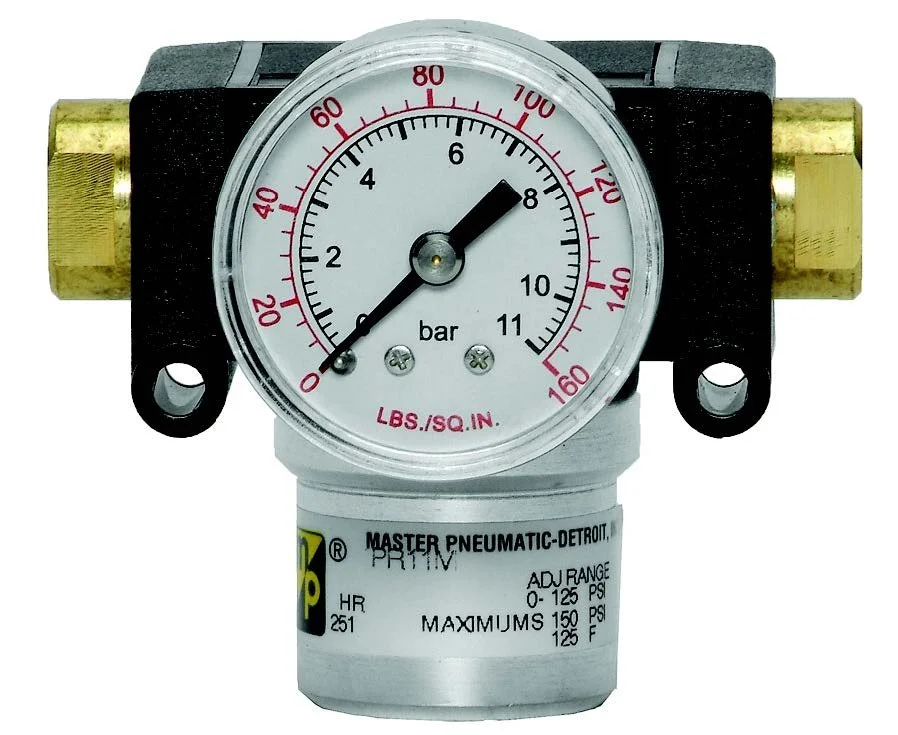

SENTRY MODULAR EXT. PILOTED REGULATOR - ACETAL

Part Number: PR11M (1/8", 1/4" & Tube Fittings)
Pressure Gauge: 0 to 160 psig (11 bar); 1/8 NPT gauge ports front and rear
Panel Mounting: 1-3/16 inch (30 mm) hole required

Download catalogue

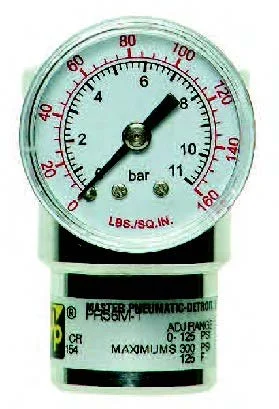

MINIATURE EXT. PILOTED REGULATOR - ALUMINIUM

Part Number: PR55M, PR56M (1/8" & 1/4")
Pressure Gauge: 0 to 160 psig (11 bar); 1/8 NPT gauge ports front and rear



Download catalogue

FULL SIZE MODULAR EXT. PILOTED REGULATOR - DIE-CAST ZINC

Part Number: PR380, PRH380 (3/8", 1/2" & 3/4")
Pressure Gauge: 0 to 200 psig (14 bar); 1/4 NPT gauge ports front and rear


Download catalogue

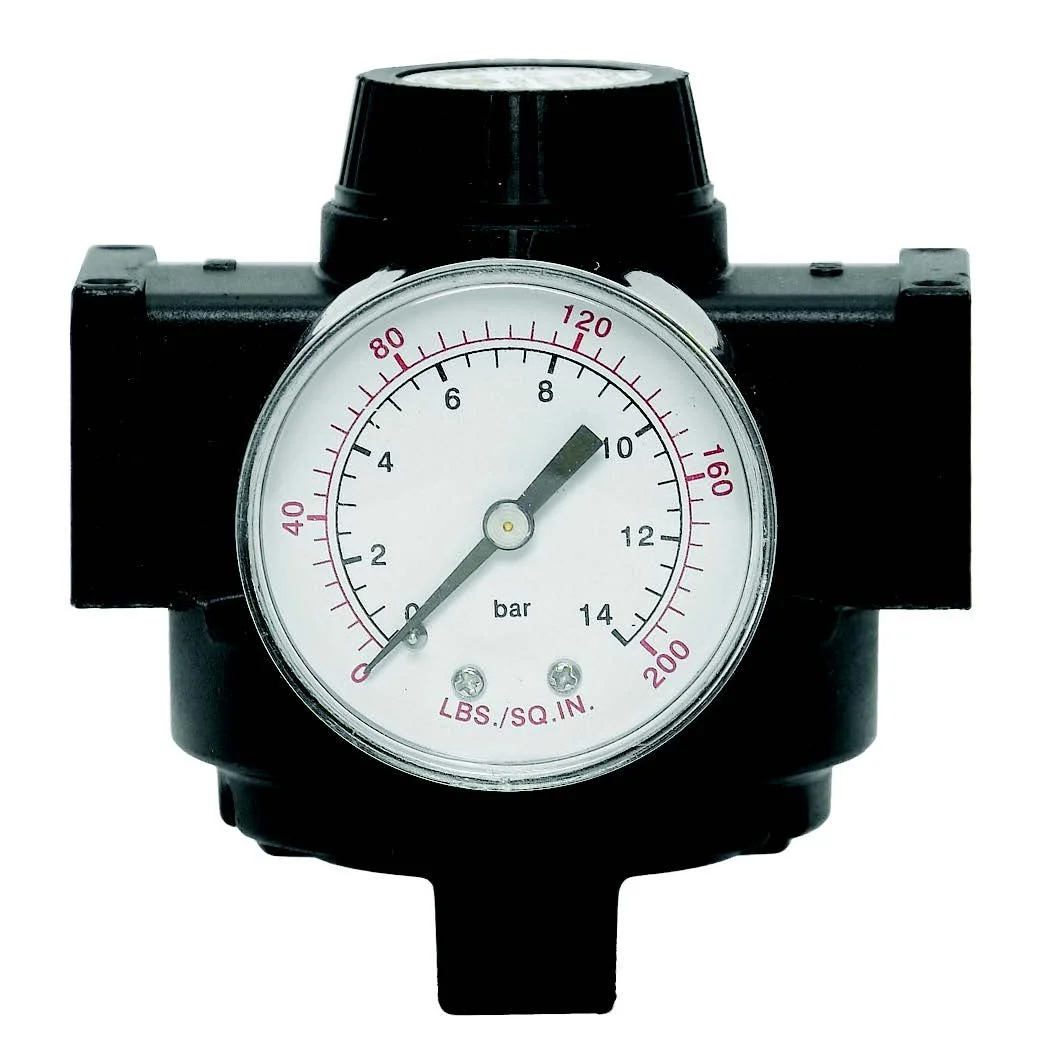

FULL-SIZE VANGUARD MODULAR EXT. PILOTED REGULATOR - DIE-CAST ZINC

Part Number: PR100, PRH100 (1/4", 3/8", 1/2" & 3/4")
Pressure Gauge: 0 to 200 psig (14 bar); 1/4 NPT gauge ports front and rear


Download catalogue

HIGH-FLOW VANGUARD EXT. PILOTED REGULATOR - ALUMINIUM

Part Number: PR180M & PRH180M (3/4", 1", 1-1/4" & 1-1/2"), R200 (1-1/2" & 2"), PR300 (3")
Pressure Gauge: 0 to 200 psig (14 bar); 1/4 NPT gauge ports front and rearSeals: Nitrile (Optional Viton seals - R200, PR300)

Download catalogue

FULL SIZE VANGUARD HIGH RELIEF EXT. PILOTED REGULATOR - DIE-CAST ZINC

Part Number: HPR100 (1/4", 3/8" & 1/2")
Inlet Pressure: 10 psig (0.7 bar) minimum, 400 psig (27.6 bar) maximum
Outlet Pressure: Adjustable up to 250 psig (17.3 bar)


Download catalogue

HIGH FLOW VANGUARD HIGH RELIEF EXT. PILOTED REGULATOR - DIE-CAST ZINC

Part Number: HPR180 (3/4",1" & 1-1/4")
Inlet Pressure: 10 psig (0.7 bar) minimum, 400 psig (27.6 bar) maximum
Outlet Pressure: Adjustable up to 250 psig (17.3 bar)


Download catalogue

WATER PRESSURE, CO2/NITROGEN, RELIEF REGULATORS

SENTRY WATER PRESSURE VALVE - ACETAL

Part Number: R13M, R14M (1/8" & 1/4")
Panel Mounting: 1-3/16 inch (30 mm) hole required
Pressure Gauge: Optional (0-160 psig)



Download catalogue

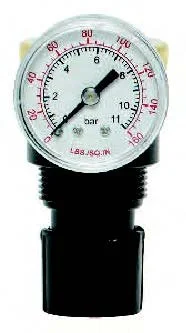

MINIATURE WATER PRESSURE VALVE - BRASS

Part Number: R53MB, R54MB (1/8" & 1/4")
Panel Mounting: 1-3/16 inch (30 mm) hole required
Pressure Gauge: 0 to 160 psig (11 bar); 1/8NPT gauge ports front and rear


Download catalogue

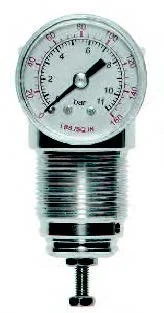

MINIATURE CO2 & NITROGEN REGULATORS - ALUMINIUM

Part Number: CX-0, CX-1 (1/8" & 1/4")
Panel Mounting: 1-3/16 inch (30mm) hole required
Pressure gauge: 0 to 160 psig (10.3 bar); 1/8-NPT gauge ports front & rear. Optional 1/8” 0-30 psig & 0-60 psig gauge.

Download catalogue

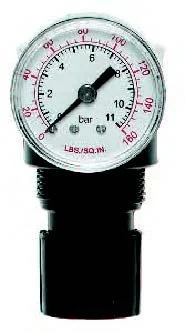

MINIATURE RELIEF VALVES - ALUMINIUM

Part Number: RV56, CX-2 (1/8" & 1/4")
Pressure Gauge: 0 to 160 psig (RV56 11 bar, CX-2 10.3 bar); 1/8 NPT gauge ports front and rear. Optional 1/8” 0-30 psig and 0-60 psig gauge (CX-2)
Panel Mounting: 1-3/16 inch (30 mm) hole required

Download catalogue
