SHAKO AIR PREPARATION
Since it's foundation in 1980, for more than 3 decades SHAKO CO. LTD., has dedicated its entire resources to the field of pneumatic products and committed its energies to develop and produce new products meeting the ever-demanding needs of automation.
Should you require further information or cannot locate a product/service please do not hesitate to make contact - sales@macvalves.co.nz
Click here to download the full Shako Air Preparation PDF catalogue.
FILTERS
COMPOSITE/ALUMINIUM
Part Number: F200A - Miniature, UF - Standard & Large
Function: Removes water and particles effectively
Port size: 1/8" & 1/4" (Miniature), 1/4" to 1" (Standard & Large)
Filtration: 5μm (Standard), 40μm (Option)
STAINLESS STEEL
Part Number: SSF200- Miniature, USF - Standard
Function: For high pressure use, corrosion and chemical resistance
Port size: 1/4" (Miniature), 1/4" to 1/2" (Standard)
Filtration: 5μm (Standard), 40μm (Option)
Download catalogue
REGULATORS
ALUMINIUM DIE-CAST, ALLOY
Part Number: NR200 - Miniature, UR - Standard, Large & Extra Large
Function: Accurate and easy pressure setting, panel mounting available.
Port Size: 1/8" & 1/4" (Mini), 1/4" to 1/2" (Standard/Large), 1 1/2" & 2" (XL)
Operating Pressure Range: 0 - 8kg f/cm2 (Mini), 0.5 - 10kg f/cm2 (Standard), 0 - 8kg f/cm2 (Extra Large)
Download catalogue

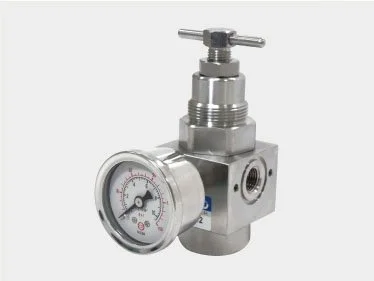

STAINLESS STEEL
Part Number: SSR200 - Miniature, USR - Standard (Large on request)
Function: For high pressure use, corrosion and chemical resistance.
Port Size: 1/4" (Mini), 1/4" to 1/2" (Standard)
Operating Pressure Range: 0.5 - 20kg f/cm2 (Mini), 0.5 - 30kg f/cm2 (Standard)
Download catalogue
LUBRICATORS

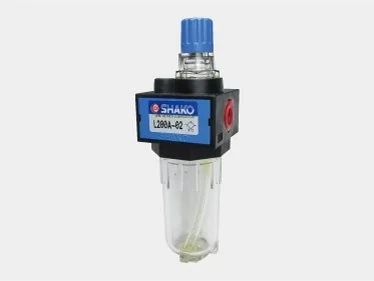

COMPOSITE/ALUMINIUM
Part Number: L200A - Miniature, UL - Standard & Large
Function: Oil spray mist ensures good lubrication for machines.
Port Size: 1/8" & 1/4" (Miniature), 1/4" to 1" (Standard & Large)
Operating Pressure Range: 0.5 - 10kg f/cm2 (Miniature), 0.5 - 10kg f/cm2 (Standard)
Download catalogue

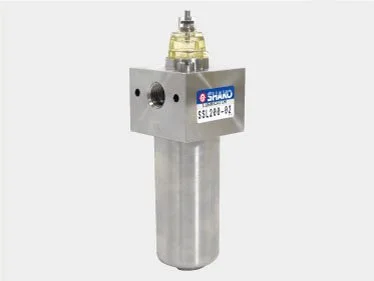

STAINLESS STEEL
Part Number: SSL200 - Miniature, USL - Standard, USR - Large
Function: For high pressure use, corrosion and chemical resistance.
Port Size: 1/4" (Miniature), 1/4" to 1/2" (Standard), 3/4" & 1" (Large)
Operating Pressure Range: 0.5 - 20kg f/cm2 (Miniature), 0.5 - 30kg f/cm2 (Standard), 0.5 - 60kg f/cm2 (Large)
Download catalogue
FILTER REGULATORS
COMPOSITE/ALUMINIUM
Part Number: FR500A - Miniature, UFR - Standard & Large
Function: Remove water and particle, accurate and easy pressure setting.
Port Size: 1/8" & 1/4" (Miniature), 1/4" to 1" (Standard & Large)
Operating Pressure Range: 0.5 - 10kg f/cm2 (Miniature, Standard & Large)
Filtration: 5μm (Standard), 40μm (Option)
Download catalogue
STAINLESS STEEL
Part Number: SSFR500 - Miniature, USFR - Standard, USFRC - Large
Function: For high pressure use, corrosion and chemical resistance.
Port Size: 1/4" (Miniature), 1/4" to 1/2" (Standard), 3/4" & 1" (Large)
Operating Pressure Range: 0.5 - 20kg f/cm2 (Miniature), 0.5 - 30kg f/cm2 (Standard/Large)
Filtration: 5μm
Download catalogue

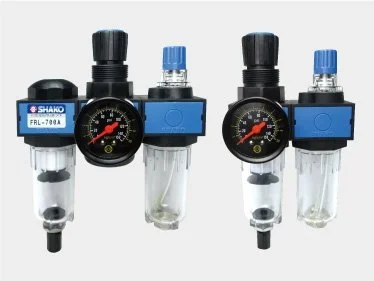

COMBINATION SETS - FILTER/REGULATOR/LUBRICATOR
COMPOSITE/DIE-CAST/ ALUMINIUM
Part Number: FRL700A - F/R/L (3 Unit) & FRL600A - F/R+L (2 Unit) - Miniature
UFRL - F/R/L (3 Unit), & UFR/L - F/R+L (2 Unit) - Standard & Large
Function: Effective air filtration, pressure setting, and quality lubrication
Port Size: 1/8" & 1/4" (Miniature), 1/4" to 1" (Standard & Large)
Operating Pressure Range: 0.5 - 10kg f/cm2 (Miniature, Standard & Large)
Filtration: 5μm (Standard), 40μm (Option)
Download catalogue
STAINLESS STEEL - F/R+L
Part Number: SSFRL600 - F/R+L
Function: Effective air filtration, pressure setting, and quality lubrication. For high pressure use, corrosion and chemical resistance.
Port Size: 1/4" (Miniature), 1/4" to 1/2" (Standard), 3/4" & 1" (Large)
Operating Pressure Range: 0.5 - 20kg f/cm2 (Miniature), 0.5 - 30kg f/cm2 (Standard, Large)
Filtration: 5μm
Download catalogue
ADDITIONAL
AUTOMATIC DRAIN - ALUMINIUM COMPOSITE/DIE-CAST
Part Number: AD940 - Standard & Large
Function: Effectively and quickly drains water.
Port Size: 1/2" to 1/8"
Operating Pressure Range: 0.5 - 10kg f/cm2
Download catalogue
SHUT-OFF VALVE - ALUMINIUM COMPOSITE/DIE-CAST
Part Number: SHV - Standard
Function: Cut air source effectively, lock out for safety, connectable with FRL.
Port Size: 1/4" to 1/2" (Standard)
Operating Pressure: 0.5 - 12kg f/cm2 (Miniature)
Download catalogue
VACUUM FILTER - ALUMINIUM COMPOSITE/DIE-CAST
Part Number: UV - Standard
Function: Removes particle effectively, easily replaceable filter element.
Port Size: 1/4" to 1/2" (Standard)
Operating Pressure: 0.5 - 10kg f/cm2 (Miniature)
Filtration: 5μm (Standard), 40μm (Option)
Download catalogue
COALESCING FILTER - ALUMINIUM COMPOSITE/DIE-CAST
Part Number: UMF - Standard & Large
Function: Effectively removes oil, water, carbon and particle.
Port Size: 1/4" to 1/2" (Standard), 3/4" & 1" (Large)
Operating Pressure: 0.5 - 10kg f/cm2
Filtration: 0.01μm (Standard)
ACCESSORIES
PRESSURE GAUGE - FRL SERIES, STAINLESS STEEL SERIES
Part Number: FRL Series KUX0000020 - Miniature, KUX0000030 Standard
Stainless Series: KUX0000040 - Miniature, KUX0000050 - Standard
Port Size: 1/4" to 1"
Download catalogue

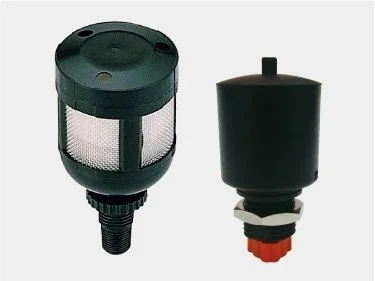

DRAIN - AUTOMATIC
Part Number: DA-014 (White), DA-014W (Black) - Male Thread,
DA-014N (White), DA-014NW (Black) - Female Thread
Port Size: 6mm (PU Tube)
Download catalogue
DRAIN - SEMI AUTO, MANUAL
Part: ZGUX-1 -Semi-Auto, ZGUX -Manual
Function: Completely drain water, oils, and particle
Port Size: 6mm (PU Tube)
Operating Pressure: 2-8kg f/cm2
Discharge Capacity: 10 - 15cc (12 times per min)
Download catalogue

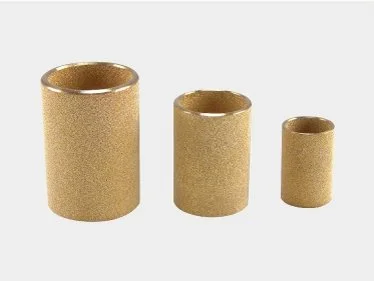

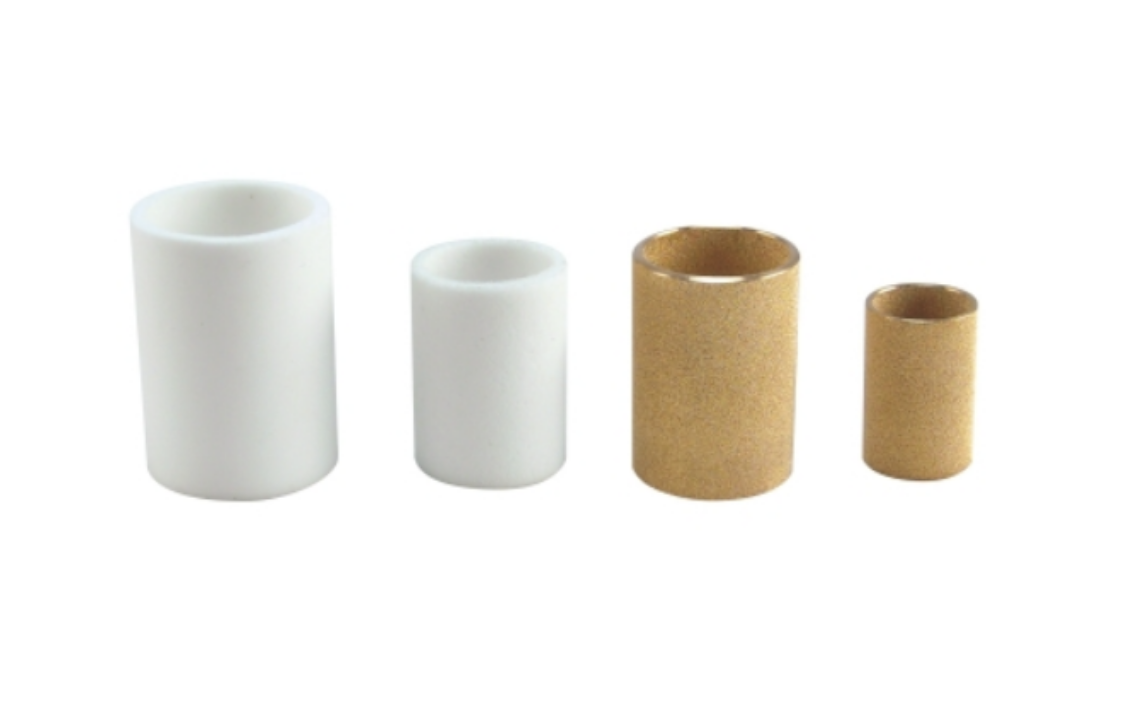

SINTERED BRONZE ELEMENT
P/N: ZUS0032041 & ZUS0032042 - For FRL600(A,B), F200(A,B), FR500(A,B)
P/N: KUN0010035 & KUN0010036 - For UFR/L 02, 03, 04 (Remark dia. 28)
P/N: KUB0008060 & KUB0008061 - For UFR/L 06, 08
Download catalogue
FILTER/LUBRICATOR BOWL - STAINLESS, ALUMINIUM, ANTI-ACID COMPOSITE
Operating Pressure Range: 2 - 8kg f/cm2
Download catalogue

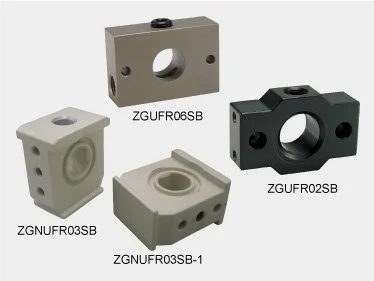

SPACER BLOCK
Part Number: ZGUFR02SB - For UFR/L 02, 03, 04 ZGUFR06SB - For UFR/L 06, 08
Download catalogue

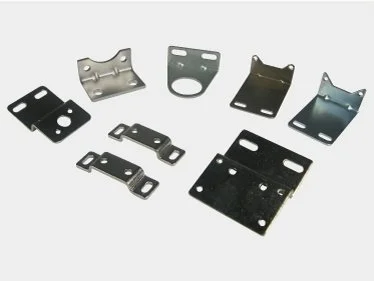

MOUNTING BLOCK
