Solenoid Connector
Part Number: DIN43650
Supply power to valve, LED indication optional, Protection circuit optional, pre-wired optional, various circuits available.

For more information please refer to our catalogue

LIGHT GASKET

Illuminated Gasket
Part Number: AD1
Install between connector and valve, surface mount technology, ultra thin design, seals from dust and moisture, not polarity pendent, install several times.

Available range from 12 to 115V AC/DC

For more information please refer to our catalogue

PRESSURE SWITCHES

Electronic Pressure Switch
M12 electrical connection, ceramic sensor, up to 400 bar, LED display 3- digit.

For more information please refer to our catalogue

Differential Pressure Switch
Used in place of proximity switches, Sense the end-of-stroke and/or clamping pressure of a linear actuator.Highly accurate ceramic sensors, pressures are compared electronically within the DDS.
Operating Fluid: Neutral gaseous and liquid fluids
Fluid Connection: G1/4“
Environmental Temperature: -20° C bis +80° C
Fluid Temperature Max: +80° C
Maximum Pressure: 870 psi
Operating Pressure Range: 0,2 to 2/0,5 to 8/1 to 16 bar
Repeatability: < 2% of max. pressure range FS
Vibration Resistance: 10 g (10 to 2000 Hz)
Shock Resistance: 30 g
Electrical Connection: DIN 43650-A (EN 175301-803)
Material Housing: Galvanized Steel

For more information please refer to our catalogue

Hydraulic Pressure Switch
Adjust various pressure ranges, DIN43650 connector attachable.
Operating Fluid: Self-lubricating fluid
Fluid Connection: G1/4“
Environmental Temperature: -30° C bis +80° C
Fluid Temperature Max: +80° C
Maximum Pressure: 5075 psi (flange horizontal 3625 psi)
Cracking Pressure: 8700 psi
Operating Pressure Range: 10-30; 10-80; 10-120; 20-200; 20-320 bar
Repeatability: < 2% of max. pressure range FS
Vibration Resistance: 10 g (10 to 2000 Hz)
Shock Resistance: 30 g
Electrical Connection: DIN 43650-A (EN 175301-803)
Switching Element: Toggle switch with control unit
Operating Cycles: > 2 x 106

For more information please refer to our catalogue

GMR SENSORS

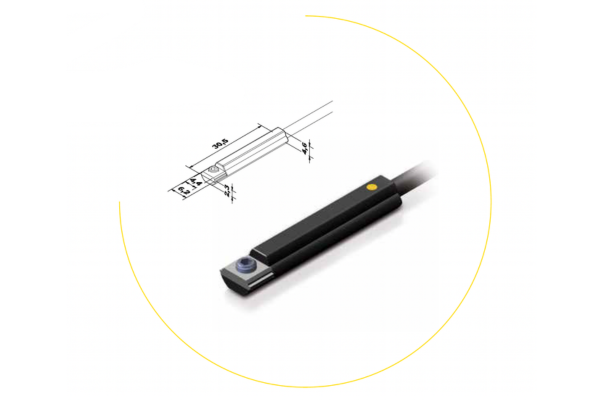

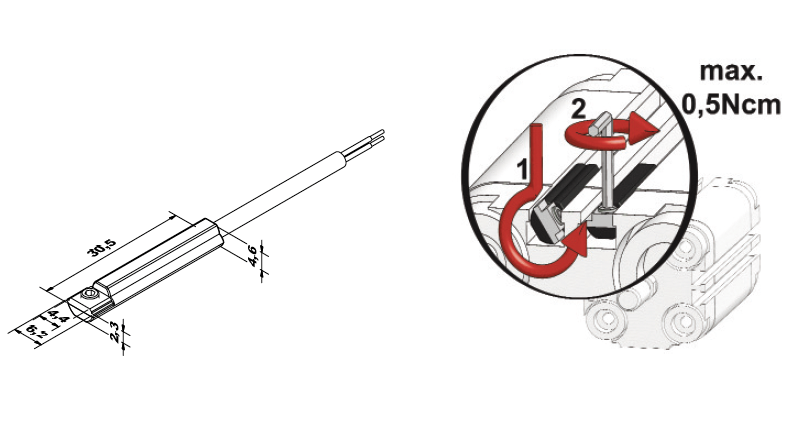

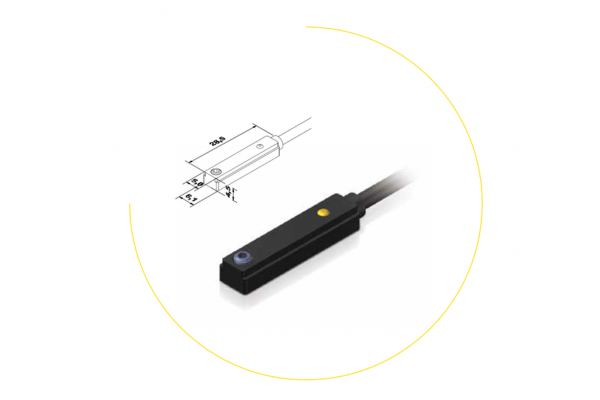

Proximity Sensor
4mm or 6mm groove, standard cable length 1, 2 and 5 meters. M8 connection. Reed or GMR technology, moulded PVC and PUR cable.

For more information please refer to our catalogue

CABLE ADAPTORS

KA1 Cable Adaptor
Two different circuit types, Male inlet/ female outlet, additional
female outlet for simultaneous/ independent control, pre-wired, LED
indication optional.

For more information please contact our team.

TIMERS

Canfield Connectors
The Canfield Connector Micro Logic Timer is a solid state electronic timing unit incorporated inside the standard MINI and DIN 43650 Form "A" / ISO 4400, EN175301-803:2000 electrical connectors. The MLT allows precise timing and logic functions in a small, easily mounted enclosure.
There are eight standard timer types. Each timer incorporates circuitry for AC or DC operation with a wide voltage range.

General Technical Data:
- Input Voltage Range: 12-240 VDC 24-240 VAC (50/60 Hz)
- Maximum timer current draw: 15 mA
- Maximum input voltage tolerance: +/-10%
- Maximum output current: 1 Amp
- Frequency: AC 50/60 Hz or DC
- Ambient temperature range: -20∞ to +60∞C
- 15 turn time adjustment potentiometers for accuracy
- Wire gauge: 20 AWG standard
- Time ranges: 0.1 seconds to 33 minutes in standard versions, other times available upon request.

For more information please refer to our catalogue
