COUPLINGS QUICK/MULTI - COUPLERS & PROBES

Should you require further information or cannot locate a product/service please do not hesitate to make contact - sales@macvalves.co.nz

Click here to download the full Fittings & Tubing PDF catalogue or see below for individual product information. Scroll through the listed products below for individual product information.

SWISS PROFILE “ARO A210”

NITTO/JAPANESE “ARO A380”

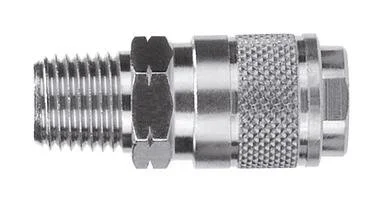

MINI MIGNON PROFILE

EUROPEAN PROFILE

UNI ISO 6150 PROFILE

MULTI-couplers + probes

NICKEL-PLATED MULTI-COUPLER

Part Number: AI0019X-0X
Working Pressure: 0 bar / 16 bar
Thread Size: 1/4”, 3/8” 1/2” BSP

Download catalogue

STAINLESS-STEEL MULTI-COUPLER

Part Number: AI63192-0X
Working Pressure: 0 bar / 16 bar
Thread Size: 1/4”, 3/8” 1/2” BSP

Download catalogue

MULTI-COUPLER PROBES

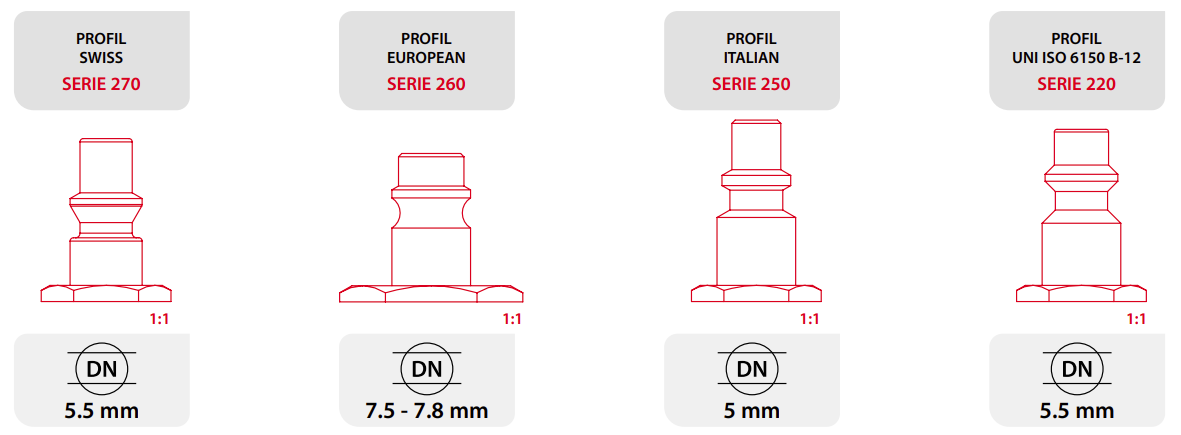

Probe Profiles To Fit Our Multi-Couplers: ARO Swiss, European, Italian, UNI ISO 6150 B-12

Download catalogue

swiss PROFILE “ARO A210”

MULTI-COUPLER W/ HOSETAIL

Part Number: AI00195-0X
Working Pressure: 0 bar / 16 bar
Thread Size: 1/4, 3/8” Female or male.

Download catalogue

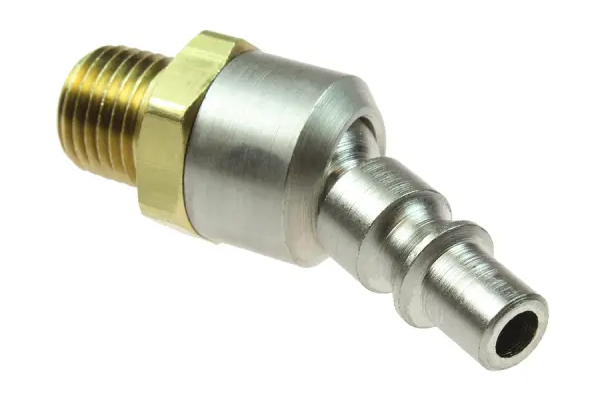

INTERCHANGABLE SWIVEL PROBE

Part Number: 14-04BS
Working Pressure: 0 bar / 16 bar
Thread Size: 1/4” NPT

Download catalogue

FEMALE SAFETY COUPLER

Part Number: AI00672-01
DN Size: 5.5mm
Thread Size: 1/4”

Download catalogue

MALE SAFETY PROBE

Part Number: LF9X87-XX-XX
Max Working Pressure: 16 bar / 232 psi
Working Temperature: -20 to 60 °C

Download catalogue

MALE OR FEMALE PROBE

Part Number: AI00272-0X
Working Pressure: 0 bar / 16 bar
Thread Size: 1/4”, 3/8” 1/2” BSP

Download catalogue

MALE SAFETY PROBE

Part Number: LF9X87-XX-XX
Max Working Pressure: 16 bar / 232 psi
Working Temperature: -20 to 60 °C

Download catalogue

NITTO/jAPANESE PROFILE “ARO a380”

LEGRIS SERIES 13 COUPLER

Part Number: LF9114-13-1X
Max Working Pressure: 16 bar / 232 psi
Thread Size: 1/4, 3/8” Female

Download catalogue

AIGNEP 500 SERIES PROBE

Part Number: AI50XAC-51-0X-ZI
Max Working Pressure: 25 bar / 362 psi
Thread Size: 1/4, 3/8” Male or female.

Download catalogue

AIGNEP 400 SERIES COUPLER

Part Number: AI0040X-0X
Max Working Pressure: 25 bar / 362 psi
Thread Size: 1/4, 3/8” Male or female.

Download catalogue

400 SERIES COUPLER W/ HOSETAIL

Part Number: AI00405-0X
Max Working Pressure: 25 bar
Thread Size: 1/4, 3/8” Male or female.

Download catalogue

european PROFILE

260 SERIES PROBE

Part Number: AI0026X-01
DN Size: 7.5mm
Max Working Pressure: 16 bar / 232 psi
Threads: 1/4, 3/8, 1/2” Male or female.
Available in steel with DN 7.8mm.

Download catalogue

STAINLESS-STEEL MALE PROBE

Part Number: AI63261-01
DN Size: 7.8mm
Max Working Pressure: 16 bar / 232 psi
Temperature Range: -15° - 200°C
Threads: 1/4, 3/8, 1/2” Universal thread

Download catalogue

PROBE WITH HOSETAIL

Part Number: AI00564-0X
DN Size: 7.5mm
Max Working Pressure: 16 bar / 232 psi
Hosetail Size: 10, 12mm
Available in steel with DN 7.8mm.

Download catalogue

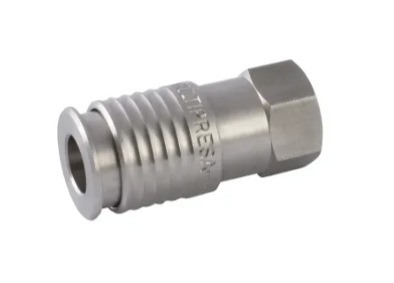

STAINLESS-STEEL FEMALE PROBE

Part Number: AI63262-440X00
DN Size: 7.8mm
Max Working Pressure: 16 bar / 232 psi
Temperature Range: -15° - 200°C
Threads: 1/4, 3/8, 1/2” BSPP

Download catalogue

EURO SAFETY COUPLER

Part Number: AI00662-01
DN Size: 7.8mm
Thread Size: 1/4” Female.

Download catalogue

460 SERIES HIGH TEMP COUPLER

Part Number: AI0046X-01
Max Working Pressure: 15 bar / 217 psi
Temperature Range: -15° - 200°C
Threads: 1/4” Male or female.

Download catalogue

MALE HIGH TEMP PROBE

Part Number: AI00564-0X
DN Size: 7.8mm
Max Working Pressure: 15 bar / 217 psi
Threads: 1/4, 3/8”
Only to suit 460 series coupler.

Download catalogue

LEGRIS QUICK ACTING COUPLER

Part Number: LF9401E07-XX
Material: Polymer, nickel plated brass
Maximum Working Pressure: 16 bar
Working Temperature: -20 to 60 °C

Download catalogue
