MASTER PNEUMATIC AIR PREPARATION - LUBRICATORS

Sight Feed & Wick Feed Lubricators
Air line lubricators are designed to introduce atomized oil into the air line so that downstream mechanisms can be adequately lubricated. Lubricators should be adjusted so that the minimum amount of oil to lubricate the equipment is used. Excess oil will simply be blown into the atmosphere and pollute the environment. There are two basic designs used in Master Pneumatic lubricators: sight-feed design and wick-feed design. Illustrations of these two types of assembly are shown on the facing page.

Should you require further information or cannot locate a product/service please do not hesitate to make contact - sales@macvalves.co.nz

SIGHT FEED LUBRICATORS

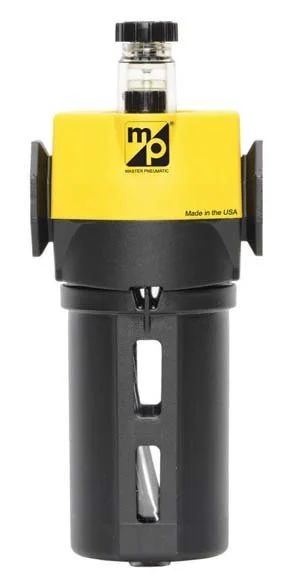

MODULAR SIGHT FEED - ZINC

Part Number: L350D
(1/4", 3/8", 1/2")
Ambient/Media Temperature: Plastic bowl: 4° to 52°C, Metal bowl: 4° to 79°C
Inlet Pressure: Plastic bowl: 150psig (10bar) max, Metal bowl: 250psig (17bar) max

Download catalogue

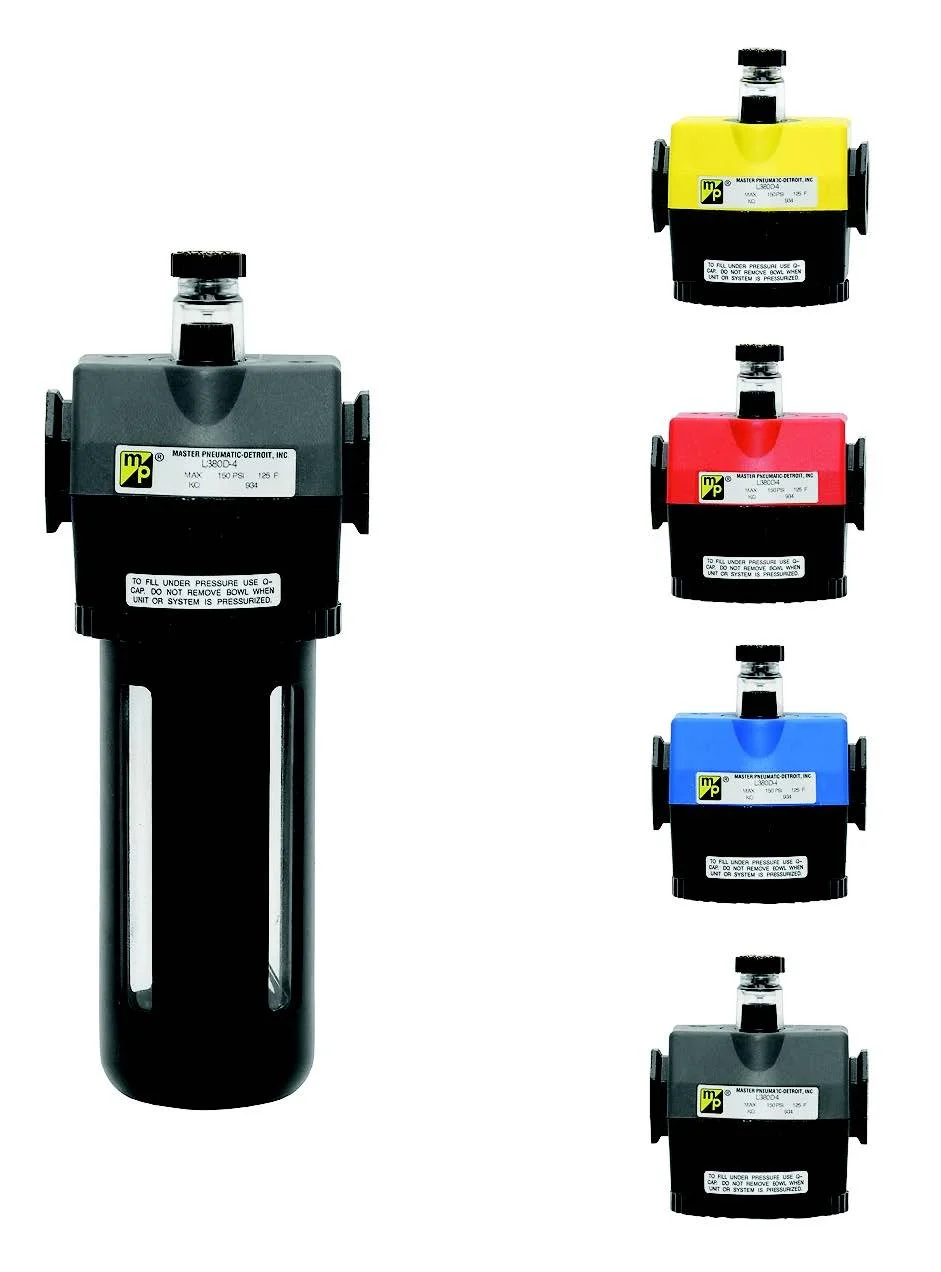

FULL SIZE MODULAR SIGHT FEED - ZINC

Part Number: L380D
(3/8", 1/2", 3/4")
Ambient/Media Temperature: Plastic bowl: 40° to 125°F (4° to 52°C), Metal bowl: 40° to 175°F (4° to 79°C)
Inlet Pressure: Plastic bowl: 150psig (10bar), Metal bowl: 200psig (14bar)

Download catalogue

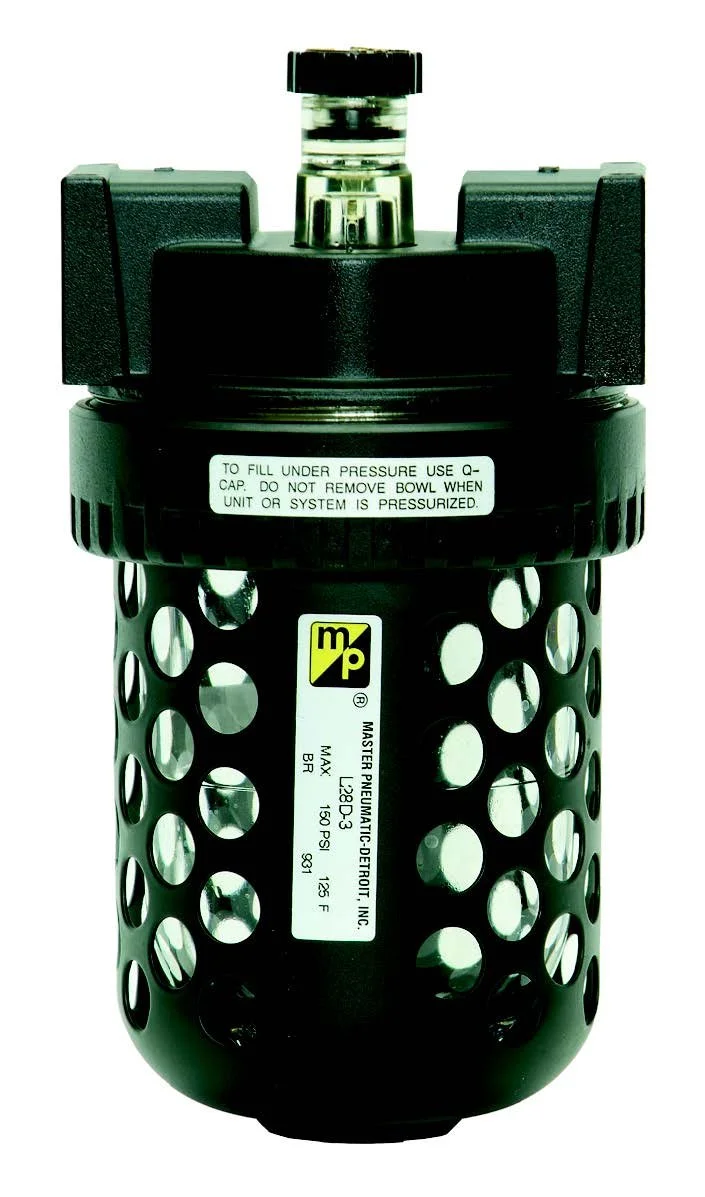

FULL-SIZE VANGUARD MODULAR SIGHT FEED - ZINC

Part Number: L28D
(1/4", 3/8", 1/2", 3/4")
Ambient/Media Temperature: Plastic bowl: 4° - 52°C, Metal bowl: 4° - 79°C
Inlet Pressure: Plastic bowl: 150psig (10bar) max, Metal bowl: 200psig (14bar) max

Download catalogue

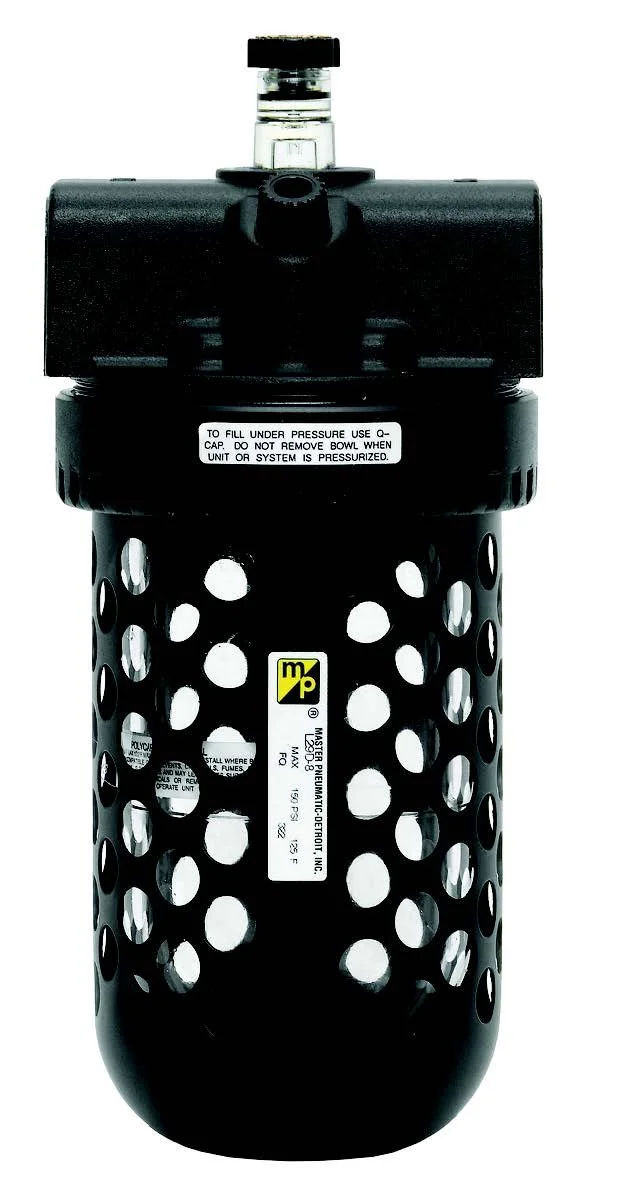

HIGH-FLOW VANGUARD SIGHT FEED - ALUMINIUM

Part Number: L29D
(3/4", 1", 1-1/2")
Ambient/Media Temperature: Plastic bowl: 4° - 52°C, Metal bowl: 4° - 79°C
Inlet Pressure: Plastic bowl: 150psig (10bar) max. Metal bowl: 200psig (14bar) max

Download catalogue

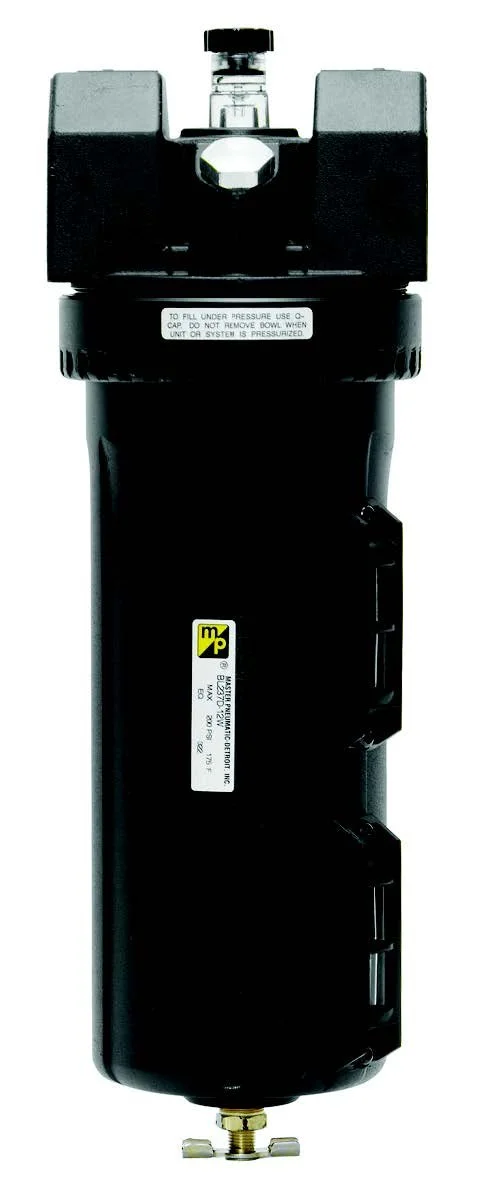

HIGH-FLOW VANGUARD SIGHT FEED - ALUMINIUM

Part Number: BL237D
(3/4" to 1-1/2")
Ambient/Media Temperature: 4° - 79°C
Inlet Pressure: 200 psig (14 bar) maximum

Download catalogue

WICK FEED LUBRICATORS

MINIATURE WICK FEED - ALUMINIUM

Part Number: L50
(1/8" and 1/4")
Ambient/Media Temperature: Plastic bowl: 4° - 52°C, Metal bowl: 4° - 66°C
Inlet Pressure: Plastic bowl: 150psig (10bar) max, Metal bowl: 200psig (14bar) max

Download catalogue

SENTRY MODULAR WICK FEED - ACETAL

Part Number: L10
(1/8" and 1/4")
Ambient/Media Temperature: Plastic bowl: 4° - 52°C
Inlet Pressure: Plastic bowl: 150psig (10bar) max


Download catalogue

FULL-SIZE VANGUARD MODULAR WICK FEED - ZINC

Part Number: L28D
(1/4", 3/8", 1/2", 3/4")
Ambient/Media Temperature: Plastic bowl: 4° - 52°C, Metal bowl: 4° - 79°C
Inlet Pressure: Plastic bowl: 150psig (10bar) max, Metal bowl: 200psig (14bar) max

Download catalogue
